5901130 (DB60) - Ferris 60" Dozer Blade Blade Group - Front Parts Diagram

60" Dozer Blade

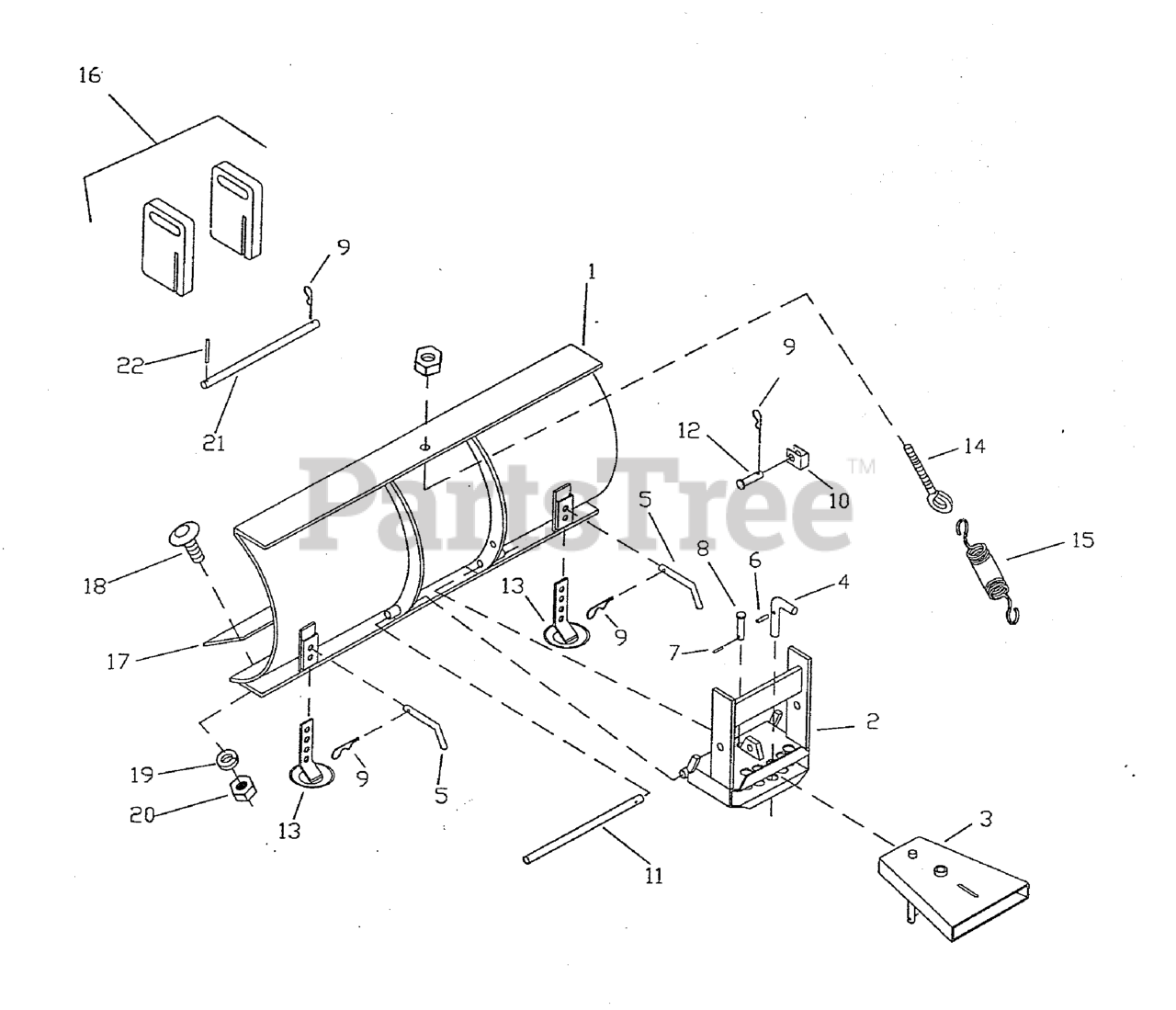

Blade Group - Front Parts Diagram

  • Title

1

Ferris 663225

Welded Blade

$

$

Currently unavailable

2

Ferris 663294

Hitch Box

$

$

Currently unavailable

3

Ferris 657291

Female Quick Hitch

$

$

Currently unavailable

4

Ferris 659504

Adjustment Pin

$

$

Currently unavailable

5

Ferris 957293

Skid Shoe Pin

$

$

Currently unavailable

6

Roll Pin 3/16" Diameter x 1"

Note: (Obtain Locally)

$

$

Not available

7

Roll Pin 1/4" Diameter x 1"

Note: (Obtain Locally)

$

$

Not available

8

Ferris 657289

Pivot Pin

$

$

Currently unavailable

9

Hair Pin 3,5mm x 65mm

Note: (Obtain Locally)

$

$

Not available

10

Ferris 657488

Trip Spring Lock Out

$

$

Currently unavailable

11

Ferris 657871

Pin 3/4" Diameter x 17 3/4" Lg.

$

$

Currently unavailable

12

Ferris 657489

Trip Spring Lock Out Pin

$

$

Currently unavailable

13

Ferris 5657500

Skid Shoe

$44.99

$

Usually ships in 2-12 days

0

14

Ferris 656229

Eye Bolt 5/16" NC x 5" With Hex Nut

$

$

Currently unavailable

15

Ferris 5030089

Spring

$

$

Currently unavailable

16

Ferris 656783

Counterweight

$

$

Currently unavailable

17

Ferris 5663226

Cutting Edge

$

$

Currently unavailable

18

Carriage Bolt 3/8" NC x 1-1/4"

Note: (Obtain Locally)

$

$

Not available

19

Lockwasher 3/8"

Note: (Obtain Locally)

$

$

Not available

20

Hex Nut 3/8" NC

Note: (Obtain Locally)

$

$

Not available

21

Ferris 662999

Retaining Rod

$

$

Currently unavailable

22

Roll Pin 3/16" Diameter x 1-1/2"

Note: (Obtain Locally)

$

$

Not available
