5900821 - Simplicity Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton Electrical Group - Briggs & Stratton Parts Diagram

Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton

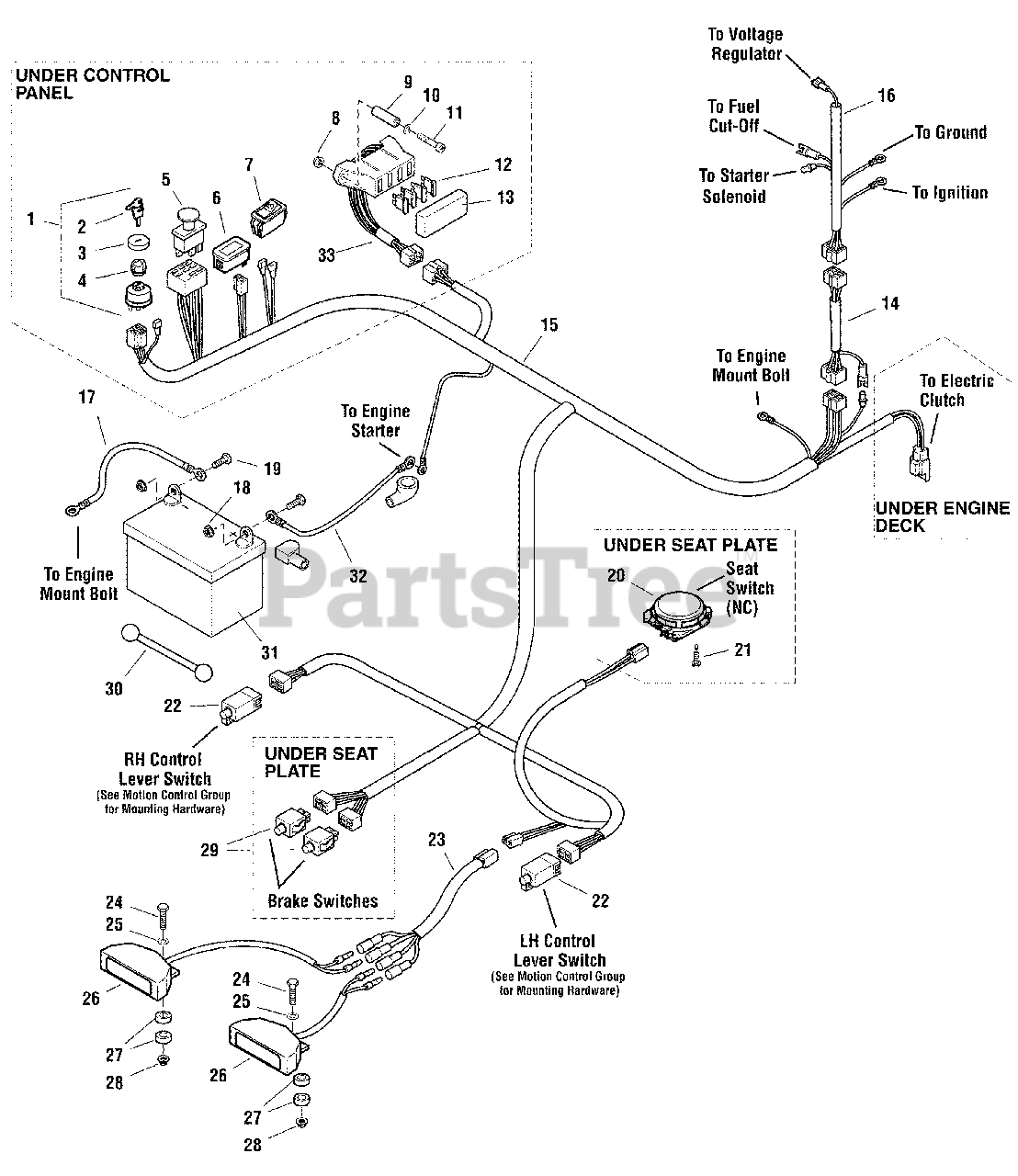

Electrical Group - Briggs & Stratton Parts Diagram

  • Title

1

Simplicity 1737853

SWITCH ASMY-IGNITION INDAK NO KEYS
(Superseded to 1737853YP)

$35.99

$

In Stock, Qty 20+

0

2

Simplicity 1737836

KEYS. BLISTER PK KIDS+MWRS DON'T MIX
(Superseded to 1737836YP)

Note: (Domestic Models)

$20.99

$

In Stock, only 1 left!

0

3

Simplicity 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

5

Simplicity 5022180

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

6

Simplicity 5100996

HOUR METER
(Superseded to 5102417)

$65.99

$

In Stock, only 1 left!

0

7

Simplicity 1703799

HEADLIGHT SWITCH
(Superseded to 1703799SM)

$31.99

$

In Stock, only 1 left!

0

8

Simplicity 703412

NUT, #10-24 Hex Nylon Lock

Note: (5025271)

$4.49

$

In Stock, only 2 left!

0

9

Simplicity 5061763

SPACER, .20 x .38 x 1.25
(Superseded to 5061763FS)

$5.99

$

Usually ships in 2-12 days

0

10

Simplicity 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025270X16

SCREW, #10-24 x 2"
(Superseded to 5025270X16SM)

$

$

Not available

12

Simplicity 5021603

FUSE, 20A
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

13

Simplicity 5022805

FUSE BLOCK COVER
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

14

Simplicity 5401204

WIRE HARNESS, BRIGGS, JUMPER
(Superseded to 5401204SM)

$118.99

$

Usually ships in 2-12 days

0

15

Simplicity 5403908

WIRE HARNESS, MAIN, IS1500ZX
(Superseded to 5403908SM)

$439.99

$

Usually ships in 2-12 days

0

16

ENGINE HARNESS

$

$

Not available

17

Simplicity 5044014

CABLE, Ground
(Superseded to 5044014SM)

$14.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025126

NUT, 1/4-20 Hex Serrated Flange
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 1716368

SWITCH, Seat, Gray, NC (BOLT-IN)
(Superseded to 5100540)

$32.99

$

In Stock, only 1 left!

0

20

Simplicity 1718981

SWITCH, Seat, Gray, NC (TWIST-IN)
(Superseded to 1718981SM)

$21.99

$

In Stock, only 1 left!

0

21

Simplicity 1960536

BOLT, Hex Washer Head PLASTITE, 1/4 X 1/2
(Superseded to 1960536SM)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 20+

0

23

Simplicity 5061793

HEADLIGHT HARNESS
(Superseded to 5061793SM)

$56.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025010X14

BOLT, 1/4-20 X 1-3/4
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

25

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 5023482

HEADLIGHT
(Superseded to 5023482SM)

$47.99

$

Usually ships in 2-12 days

0

27

Simplicity 5044933

SPACER, .39 X .75 X .38
(Superseded to 5044933SM)

$4.99

$

In Stock, only 3 left!

0

28

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

30

Simplicity 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

31

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

32

Simplicity 5021405

BATTERY CABLE, POSITIVE, 22
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

33

Simplicity 5401328

WIRE HARNESS, FUSE BLOCK - IS2000
(Superseded to 5401328SM)

$73.99

$

In Stock, only 1 left!

0
