5900821 - Simplicity Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton 61" Mower Deck - Pulleys, Belts & Idler Arm Parts Diagram

Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton

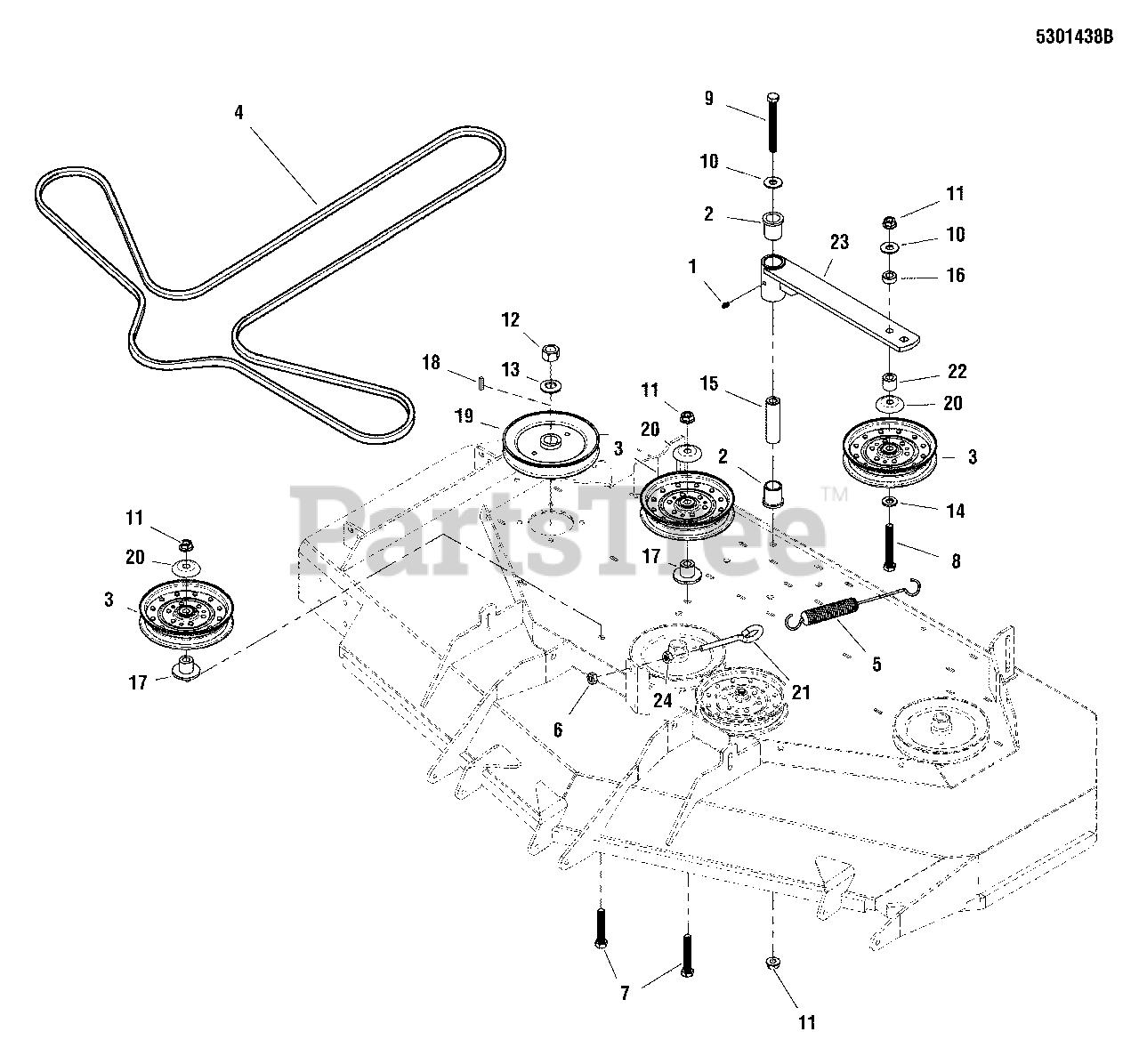

61" Mower Deck - Pulleys, Belts & Idler Arm Parts Diagram

  • Title

1

Simplicity 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

2

Simplicity 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

3

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158SM - washer and 5101103SM - shield.

$54.99

$

In Stock, Qty 5

0

4

Simplicity 5103871YP

BELT, 5V, 175.90EL, LG ARAMID, WRPD, RC

$139.99

$

In Stock, Qty 12

0

5

Simplicity 5023340

SPRING-EXTENSION, SWIVEL END
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

6

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025017X24

BOLT, 1/2-13 X 3 GD5
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

8

Simplicity 5025017X28

BOLT, 1/2-13 X 3-1/2 GD5
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

9

Simplicity 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

10

Simplicity 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025396

NUT, 1/2-13 HEX NYLOCK FLANGE
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

15

Simplicity 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

16

Simplicity 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

17

Simplicity 5103430

WELD, MOUNT, IDLER
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

18

Simplicity 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

19

Simplicity 5100700

PULLEY, 6.5 EOD X 25MM, SPLIT
(Superseded to 5100700SM)

$74.99

$

Usually ships in 2-12 days

0

20

Simplicity 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

21

Simplicity 5023497

EYE BOLT, 3/8-16 X 5, 1 EYE
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

22

Simplicity 5044673

SPACER, .52 X 1.00 X .88
(Superseded to 5044673SM)

$8.99

$

In Stock, only 1 left!

0

23

Simplicity 5407343YP

ASSM, IDLER ARM - BLK - 5407039A (SV)

Note: (Includes bushings and grease fittings.)

$

$

Not available

24

Simplicity 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 13

0
