5900766 - Simplicity Pacer 32" Walk-Behind Mower 32" Mower Deck - Height Adjustment Parts Diagram

Pacer 32" Walk-Behind Mower

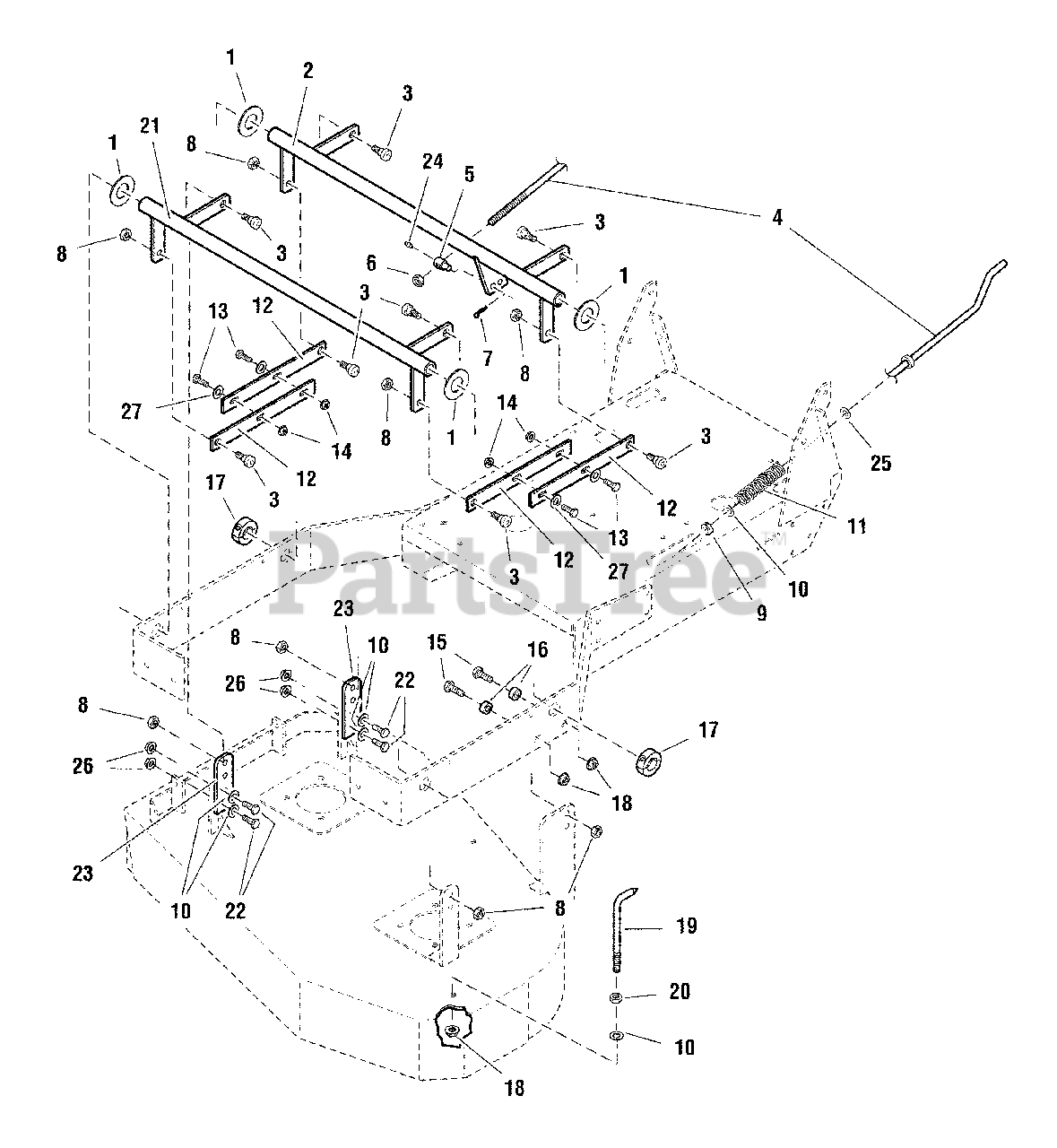

32" Mower Deck - Height Adjustment Parts Diagram

  • Title
1

Simplicity 5025162SM

WASHER-1.00 HYDRO CUT

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 5047682CSM

WELD, DECK PIVOT, REAR

$

$

Not available

3

Simplicity 5025356SM

BOLT, 3/8-16 X 3/8, 1/2 SHOULDER

$6.99

$

In Stock, Qty 6

0

4

Simplicity 5047655SM

ROD CUTTER DECK HEIGHT CONTROL

$70.99

$

Usually ships in 2-12 days

0

5

Simplicity 5048526SM

LINKAGE, ADJUSTER

$34.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025100SM

NUT, 3/8-16 HEX SIDE LOCK

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 5025201X6SM

PIN, COTTER, 3/32 X 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 5025046SM

NUT, 3/8-16, HEX TOP LOCK

$3.49

$

In Stock, Qty 6

0

9

Simplicity 5010546SM

COLLAR, 3/8 SET

$5.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

11

Simplicity 5022645SM

SPRING, REVERSE RETURN

$9.49

$

In Stock, only 1 left!

0

12

Simplicity 5047710CSM

LINK, DECK ADJUST.

$

$

Not available

13

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

15

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, Qty 12

0

16

Simplicity 5044933SM

SPACER, .39 X .75 X .38

$4.99

$

In Stock, only 3 left!

0

17

Simplicity 5048549SM

COLLAR, 1" DOUBLE SPLIT

$17.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

19

Simplicity 5047737SM

POINTER, CUT HEIGHT

$16.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025034SM

NUT, 3/8-16 HEX

$2.99

$

Usually ships in 2-12 days

0

21

Simplicity 5047681CSM

DECK PIVOT WELDMENT, FRONT

$

$

Not available

22

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, Qty 6

0

23

Simplicity 5048439CSM

HANGER, DECK

$

$

Not available

24

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

In Stock, only 3 left!

0

25

Simplicity 5048548SM

WASHER, 3/8" NYLON HYDRO CUT

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 5025292SM

WASHER, 5/16 GD.9 FLAT

$3.99

$

In Stock, Qty 17

0
