5900764 - Simplicity Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton Main Frame & Front Suspension Group Parts Diagram

Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton

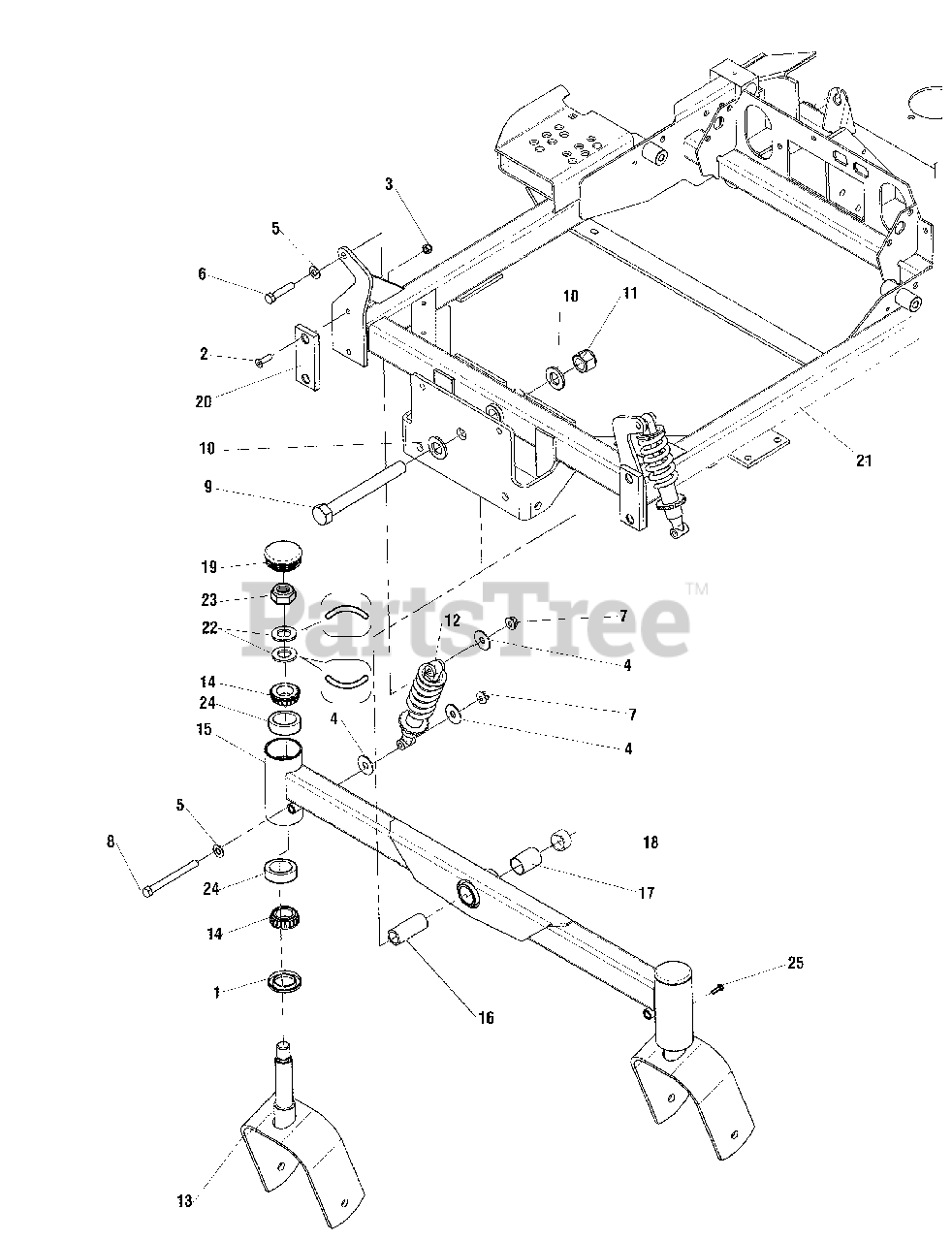

Main Frame & Front Suspension Group Parts Diagram

  • Title

1

Simplicity 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 8

0

2

Simplicity 5022594SM

SCREW, 5/16-18 X 1 PHILLIPS HD, BZ

$

$

Not available

3

Simplicity 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025165

WASHER, 3/8 FENDER
(Superseded to 5025165SM)

Note: (52" Models Use Qty. 6)

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5025013X14

BOLT, 3/8-16 X 1-3/4 GD5
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

7

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 5025013X32

BOLT, 3/8-16 X 4 GD5 YZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

9

Simplicity 5025265X52

BOLT, 3/4-16 X 6-1/2 YZ GD5
(Superseded to 5025265X52SM)

$15.99

$

In Stock, Qty 8

0

10

Simplicity 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

Note: (52" Models Use Qty. 4)

$3.99

$

In Stock, only 1 left!

0

11

Simplicity 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 5023483

SHOCK, SPRING ASSEMBLY
(Superseded to 5023483SM)

$55.99

$

In Stock, Qty 17

0

13

Simplicity 5402208C

WELD, CASTER YOKE -ORG
(Superseded to 5402208CSM)

$170.99

$

Usually ships in 2-12 days

0

14

Simplicity 5020884

BEARING, TAPERED ROLLER, 1
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

15

Simplicity 5402536C

WELD, FRONT PIVOT
(Superseded to 5401410CSM)

Note: (52" Models - S/N: 2014624505 & Below / 48" Models - All)

$387.99

$

Usually ships in 2-12 days

0

15

Simplicity 5405923C

WELD, FRONT PIVOT
(Superseded to 5405923CYP)

Note: (52" Models - S/N: 2014624506 & Above)

$330.99

$

Usually ships in 2-12 days

0

15

Simplicity 5409889C

WELD, FRONT PIVOT - ORG

Note: (61" Models)

$

$

Not available

16

Simplicity 5047489

SPACER, .75 X 1.00 X 2.38
(Superseded to 5047489SM)

$35.99

$

In Stock, Qty 14

0

17

Simplicity 5022852

PIVOT BEARING, 1.00 X 1.125 OD X 1.50
(Superseded to 5022852SM)

$33.99

$

In Stock, Qty 17

0

18

Simplicity 5100358

PIVOT BEARING, 1.00 X 1.125 OD X .50
(Superseded to 5100358SM)

$18.99

$

In Stock, Qty 14

0

19

Simplicity 5102929SM

CAP, LOW PROFILE, STEEL

$

$

Not available

20

Simplicity 5101553

DECK FRICTION REDUCER PLATE
(Superseded to 5101553SM)

$18.99

$

Usually ships in 2-12 days

0

20

Simplicity 5102702

PAD, FRICTION
(Superseded to 5102702YP)

Note: (52" Models - S/N: 2014624505 & Below / 48" Models - All)

$6.99

$

In Stock, only 2 left!

0

21

Simplicity 5404316C

WELD, MAIN FRAME

Note: (52" Models - S/N: 2014624505 & Below / 48" Models - All)

$

$

Not available

21

Simplicity 5406658C

WELD, MAIN FRAME

Note: (52" Models - S/N: 2014624506 & Above)

$

$

Not available

21

Simplicity 5403809C

WELD, MAIN FRAME

Note: (61" Models)

$

$

Not available

22

Simplicity 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 5020883

BEARING CUP (SV)

$8.99

$

Usually ships in 2-12 days

0

25

Simplicity 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0
