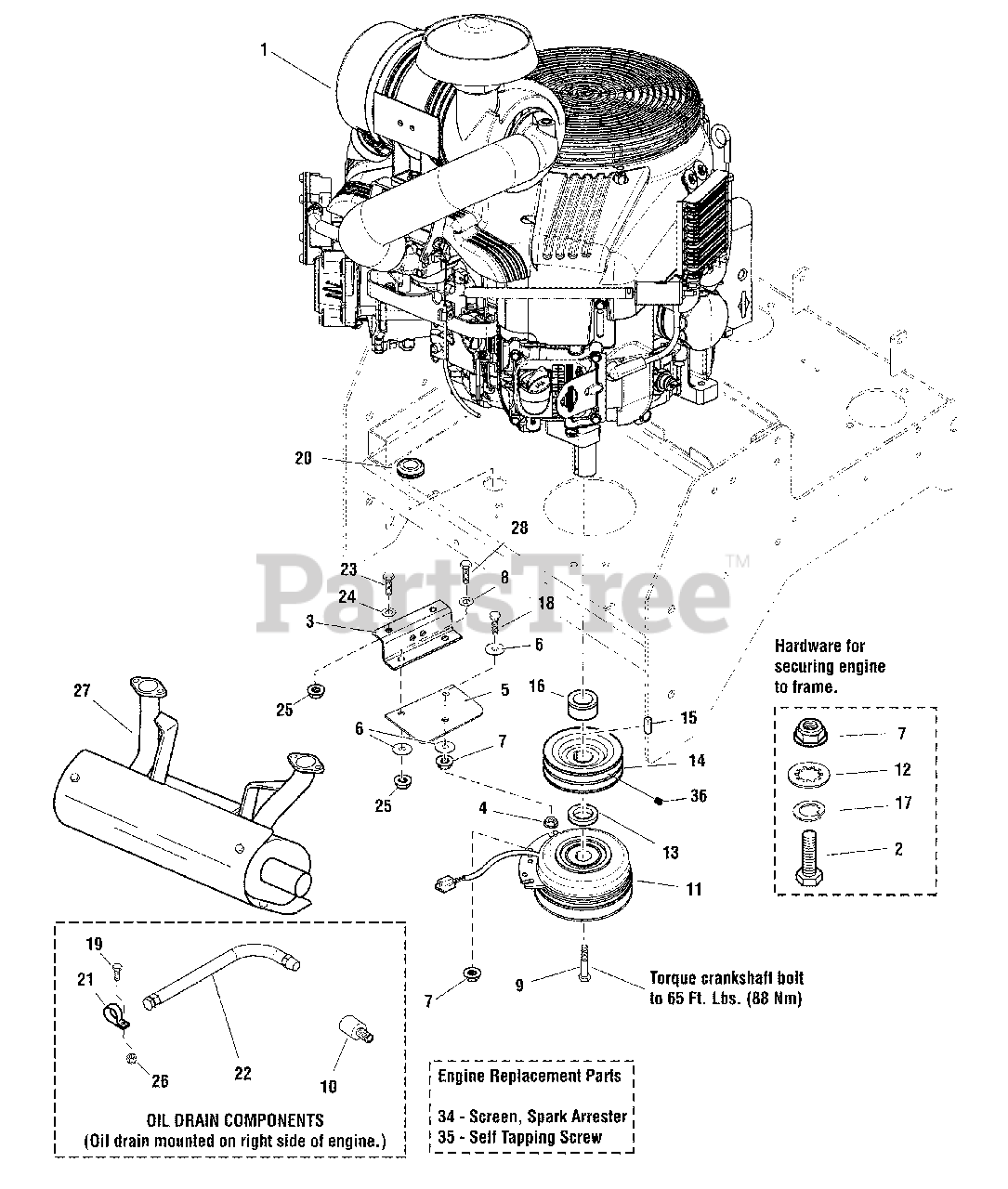

5900764 - Simplicity Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton Engine Group - PTO - Briggs & Stratton Models Parts Diagram

Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton

Engine Group - PTO - Briggs & Stratton Models Parts Diagram

  • Title

1

* ENGINE, BRIGGS AND STRATTON

$

$

Not available

2

Simplicity 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

5

Simplicity 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

6

Simplicity 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

7

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Simplicity 5102864

BOLT, CRANKSHAFT,7/16-20X2-1/2, GD8
(Superseded to 5102864YP)

$5.49

$

In Stock, only 1 left!

0

10

Simplicity 5100366

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF
(Superseded to 5100366SM)

$13.99

$

Usually ships in 2-12 days

0

11

Simplicity 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

12

Simplicity 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

$19.99

$

Usually ships in 2-12 days

0

14

Simplicity 5047075

PULLEY, CRANKSHAFT, 1.126 ID X 4.75 OD
(Superseded to 5047075SM)

$137.99

$

Usually ships in 2-12 days

0

15

Simplicity 5050407X8

KEY, 1/4" SQ. X 1.00"
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 2 left!

0

16

Simplicity 5103626

SPACER, 1.13 X 1.75 X 1.09, PM

$16.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025425

BOLT, 5/16-18 X 3", FLT
(Superseded to 5025425SM)

$2.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

20

Simplicity 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

21

Simplicity 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025013X8

BOLT, 3/8-16 X 1" GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

24

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 703463

NUT, 1/4-20, GR5 Flanged Nylock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 846153

Muffler
(Superseded to 846819)

$500.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

29

Simplicity 841238

AIR FILTER ELEMENT, SMALL DIA., INT (SV)

Note: (Not Shown)

$40.99

$

Usually ships in 2-12 days

0

30

Simplicity 809907

Cap-A/C Rain

Note: (Not Shown)

$63.99

$

In Stock, only 2 left!

0

31

Simplicity 809670

Cleaner-Air

Note: (Not Shown)

$235.99

$

In Stock, only 3 left!

0

32

Simplicity 841237

AIR FILTER ELEMENT, LARGE DIA., EXT (SV)

Note: (Not Shown)

$36.99

$

Usually ships in 2-12 days

0

33

Simplicity 492932S

FILTER, Oil

Note: (Not Shown)

$12.99

$

In Stock, Qty 20+

0

34

Simplicity 842859

* SCREEN, SPARK ARRESTER
(Superseded to 843204)

Note: (Not Shown)

$136.99

$

Usually ships in 2-12 days

0

35

Simplicity 5025470

SCREW, SELF-TAP, #8-32 X 3/8. WASH HEX, CZ
(Superseded to 5025470YP)

Note: (Not Shown)

$3.49

$

In Stock, only 2 left!

0

36

Simplicity 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0

37

Simplicity 5101492

TIE, SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0
