5900764 - Simplicity Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton 61" Mower Deck - Rollers & Casters Parts Diagram

Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton

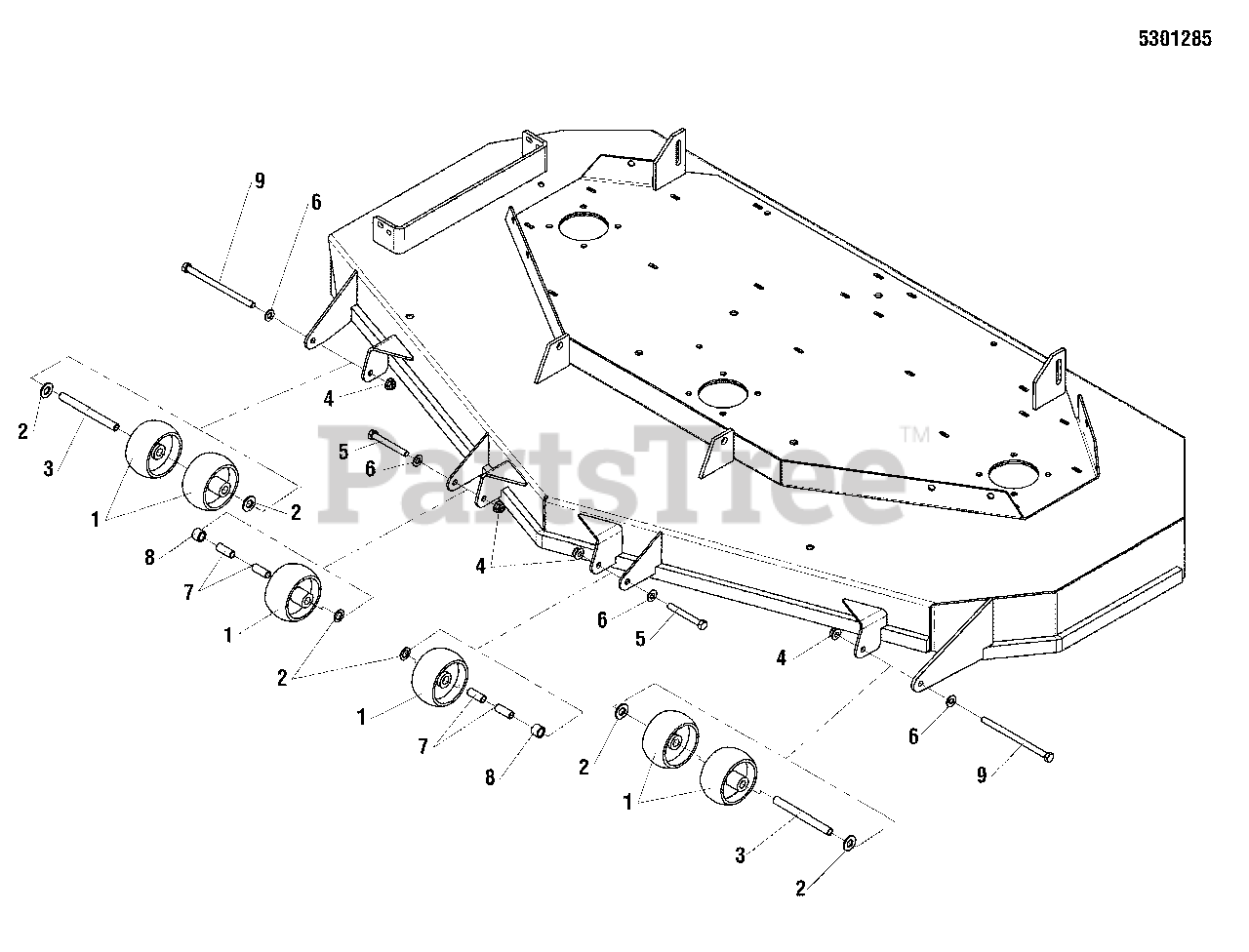

61" Mower Deck - Rollers & Casters Parts Diagram

  • Title
1

Simplicity 1714760

WHEEL- 2.00 WIDE 3.88 DIA 0.531ID POLY
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

2

Simplicity 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 5046586

SPACER, .38 X .50 X 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

4

Simplicity 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 5025013X28

BOLT, 3/8-16 X 3-1/2 GD5 YZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

6

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 5041931

SPACER, .38 X .50 X 1.25
(Superseded to 5041931SM)

$5.99

$

Usually ships in 2-12 days

0

8

Simplicity 5047027

SPACER, .51 X .75 X .56
(Superseded to 5047027SM)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 5025013X48

BOLT, 3/8-16 X 6 GD5 YZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0
