5900763 - Simplicity Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton Spindle Service Parts Parts Diagram

Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton

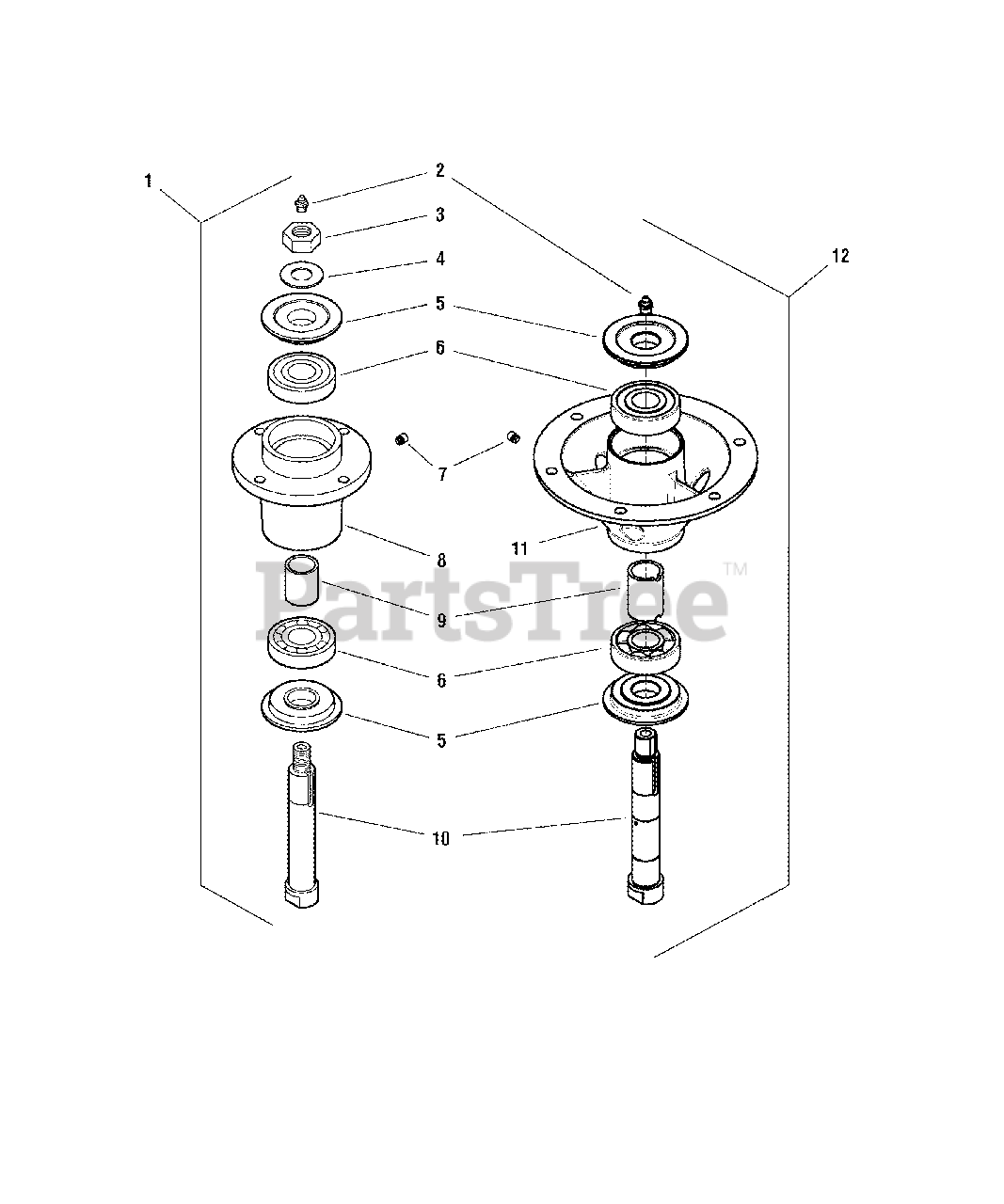

Spindle Service Parts Parts Diagram

  • Title

1

Simplicity 5061095SM

SPINDLE ASSEMBLY, Complete

Note: (S/N: 2012617338 & Below) (Includes Ref Nos. 2 - 10)(Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

2

Simplicity 5023329SM

GREASE FITTING

Note: (Used on both 5061095 & 5100993 Spindles)

$5.49

$

In Stock, only 4 left!

0

3

Simplicity 5025405SM

NUT, 3/4-16 Hex

Note: (Used on 5061095 only)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 5025406SM

WASHER, 3/4" Belleville
(Superseded to 770223)

Note: (Used on 5061095 only)

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 5049793SM

TRASH SHIELD

Note: (Used on both 5061095 & 5100993 Spindles)

$16.99

$

In Stock, only 4 left!

0

6

Simplicity 5023330SM

BEARING

Note: (Used on both 5061095 & 5100993 Spindles)

$23.99

$

In Stock, Qty 20+

0

7

Simplicity 5023296SM

RELIEF VALVE

Note: (Used on both 5061095 & 5100993 Spindles)

$7.49

$

In Stock, only 1 left!

0

8

Simplicity 5061097SM

SPINDLE HOUSING
(Superseded to 5102993YP)

Note: (Used on 5061095 only)

$90.99

$

Usually ships in 2-12 days

0

9

Simplicity 5061099SM

SPACER, 1.00 x 1.25 x 1.75

Note: (Used on both 5061095 & 5100993 Spindles)

$11.99

$

In Stock, only 4 left!

0

10

Simplicity 5061098SM

SPINDLE SHAFT

Note: (Used on both 5061095 & 5100993 Spindles)

$77.99

$

In Stock, only 1 left!

0

11

Simplicity 5101048

HOUSING, SPINDLE, BOTTOM MOUNT
(Superseded to 5101048SM)

Note: (Used on 5100993 only)

$103.99

$

Usually ships in 2-12 days

0

12

Simplicity 5100993

SPINDLE ASSEMBLY, CAST IRON, COMPLETE
(Superseded to 5100993SM)

Note: (S/N: 2012617339 & Above) (Includes Ref Nos 2, 5-7, 9-11)

$219.99

$

In Stock, Qty 15

0
