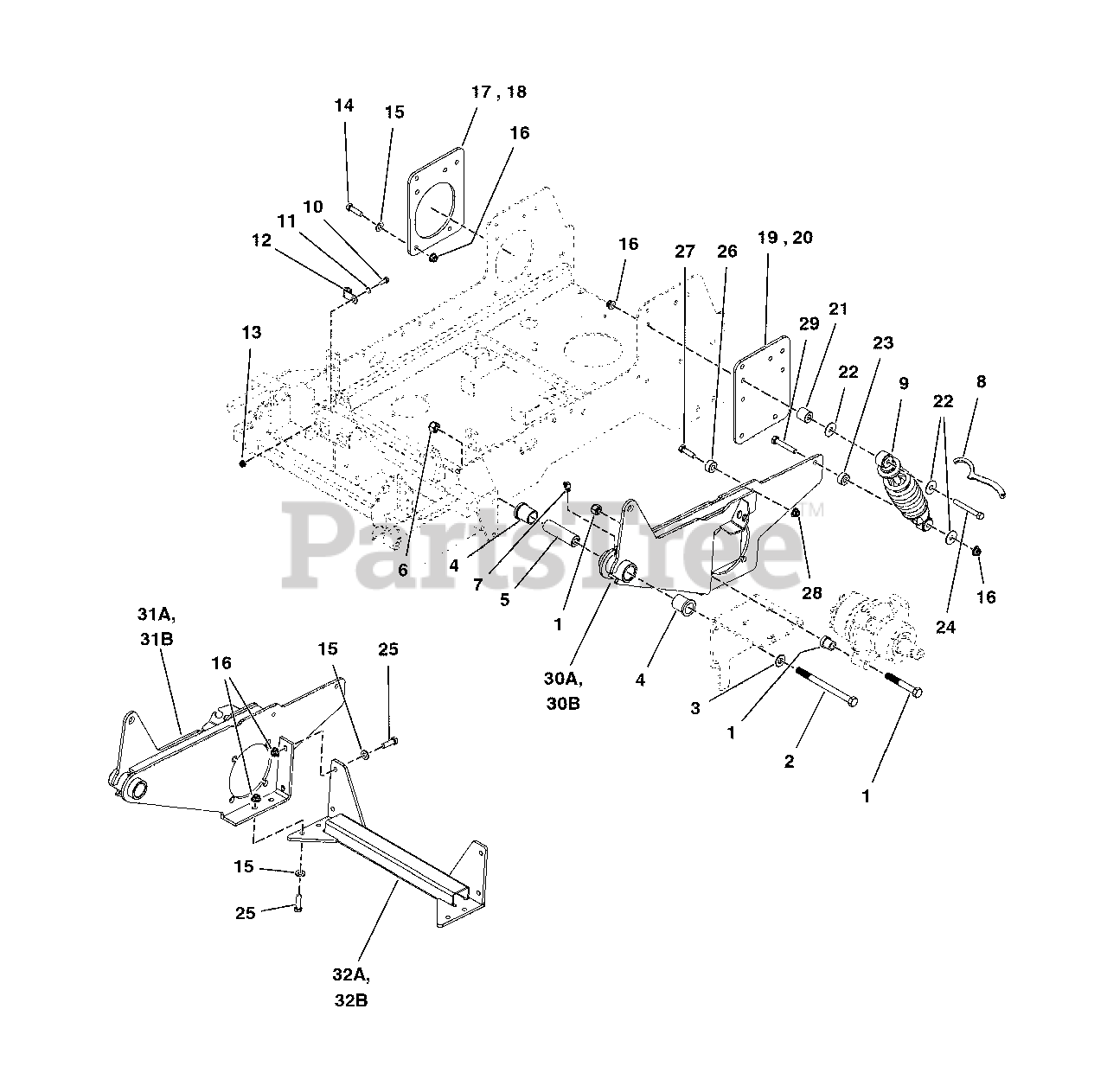

5900762 - Simplicity Citation 52" Zero-Turn Mower, 25hp Kawasaki Rear Suspension Group - 48" Models & 52" Models S/N: 2014624505 & Below Parts Diagram

Citation 52" Zero-Turn Mower, 25hp Kawasaki

Rear Suspension Group - 48" Models & 52" Models S/N: 2014624505 & Below Parts Diagram

  • Title

1

See Hydraulic Components Replacement Group

$

$

Not available

2

Simplicity 5025488X52

BOLT, 1/2-13 X 6-1/2 GD8, YZ
(Superseded to 5025488X52YP)

$8.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

4

Simplicity 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

5

Simplicity 5061339

SPACER, .52 X 1.00 X 3.42
(Superseded to 5061339SM)

$13.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 5020020

GREASE FITTING, 45 DEGREE
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 5022853

SPANNER WRENCH
(Superseded to 5022853SM)

$15.99

$

Usually ships in 2-12 days

0

9

Simplicity 5023436

SHOCK ASSEMBLY
(Superseded to 5023436SM)

$210.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025010X6

BOLT 1/4-20 X 3/4"
(Superseded to 5025010X6SM)

Note: (S/N: 2000310905 & Above)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 703332

WASHER, 1/4 SAE (5025154)

Note: (S/N: 2000310905 & Above)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025430

CLAMP, DOUBLE TUBE
(Superseded to 5025430SM)

Note: (S/N: 2000310905 & Above)

$2.99

$

Usually ships in 2-12 days

0

13

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

Note: (S/N: 2000310905 & Above)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4 GD5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

15

Simplicity 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

16

Simplicity 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 5061752B

FRAME SUPPORT, RH

Note: (S/N: 2000710686 & Below)

$

$

Not available

18

Simplicity 5061753B

PLATE, FRAME SUPPORT, RH - RED

Note: (S/N: 2000710687 & Above)

$

$

Not available

19

Simplicity 5061750B

FRAME SUPPORT, LH

Note: (S/N: 2000710686 & Below)

$

$

Not available

20

Simplicity 5061751B

PLATE, FRAME SUPPORT, LH - RED
(Superseded to 5061751BFS)

Note: (S/N: 2000710687 & Above)

$39.99

$

Usually ships in 2-12 days

0

21

Simplicity 5100896

SPACER, .390 X 1.00 X 1.00 - YZ
(Superseded to 5100896SM)

Note: (S/N: 2000710687 & Above)

$8.49

$

Usually ships in 2-12 days

0

22

Simplicity 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

23

Simplicity 5046860

SPACER, .39 X 1.00 X .50
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

24

Simplicity 5025013X28

BOLT, 3/8-16 X 3-1/2 GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

26

Simplicity 5102701

SPACER, .34 X 1.54 X .25 UHMW
(Superseded to 5102701YP)

Note: (48" Models Only)

$3.99

$

In Stock, only 1 left!

0

27

Simplicity 5025594YP

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ

Note: (48" Models Only)

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (48" Models Only)

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 5025013X18

BOLT, 3/8-16 X 2-1/4 GD5 YZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

30A

Simplicity 5401166B

WELD, MOTOR MOUNT - LH - RED

Note: (52" Models)

$242.99

$

Usually ships in 2-12 days

0

30B

Simplicity 5401356B

WELD, MOTOR MOUNT - LH - RED

Note: (48" Models)

$330.99

$

Usually ships in 2-12 days

0

31A

Simplicity 5401165B

WELD, MOTOR MOUNT - RH - RED

Note: (52" Models)

$242.99

$

Usually ships in 2-12 days

0

31B

Simplicity 5401357B

WELD, MOTOR MOUNT - RH - RED

Note: (48" Models)

$330.99

$

Usually ships in 2-12 days

0

32A

Simplicity 5600256

KIT, TIE BAR (5404064A)
(Superseded to 5600256YP)

Note: (52" Models)

$207.99

$

Usually ships in 2-12 days

0

32B

Simplicity 5600257

KIT, TIE BAR (5404065A)

Note: (48" Models)

$201.99

$

Usually ships in 2-12 days

0
