5900703 - Simplicity Clean Sweep Triple Catcher for 44" & 50" Mower Triple Catcher Assembly (5900703) Parts Diagram

Clean Sweep Triple Catcher for 44" & 50" Mower

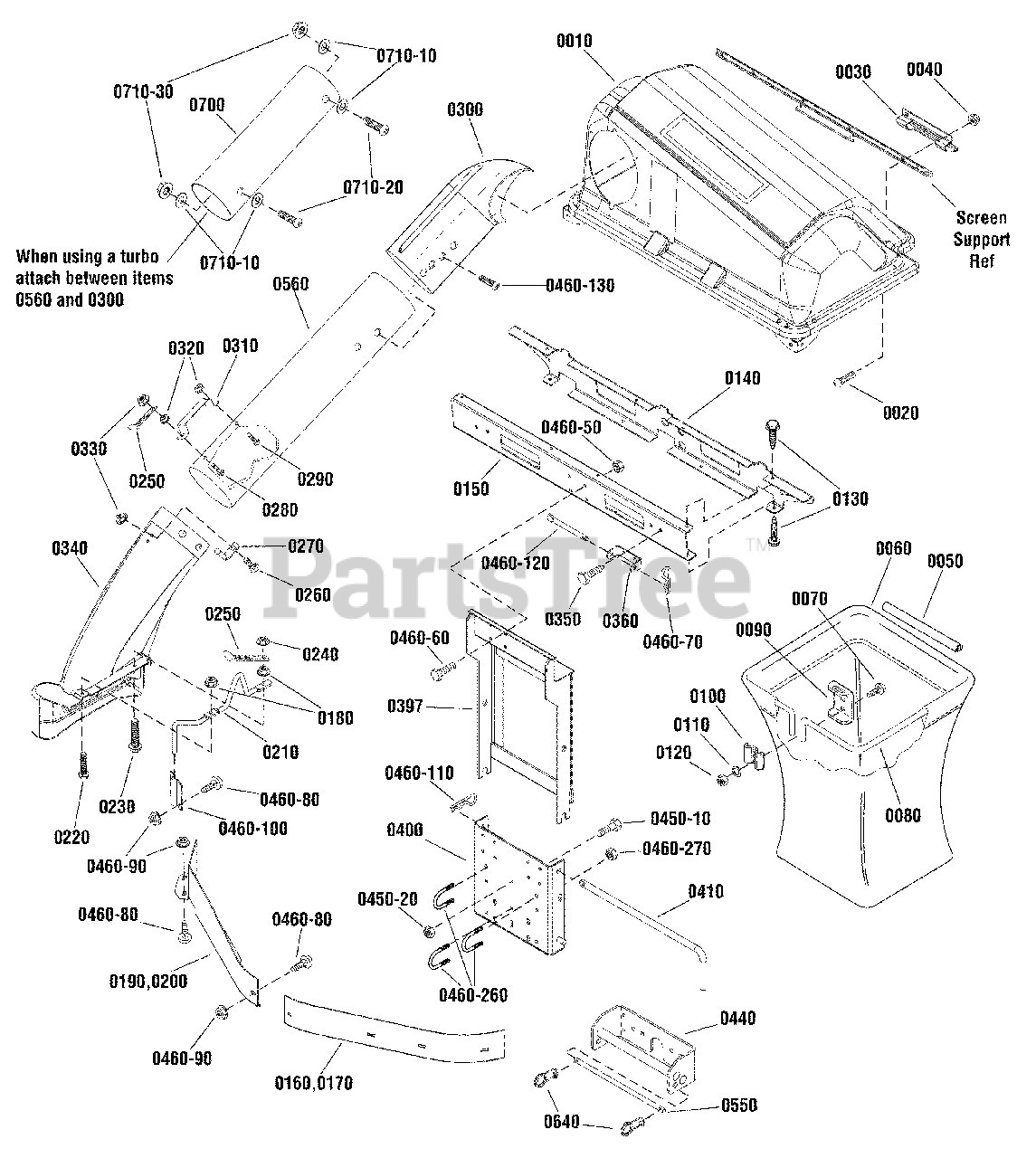

Triple Catcher Assembly (5900703) Parts Diagram

  • Title

0010

Simplicity 1733546

COVER & SCREEN ASSEMBLY
(Superseded to 1733546SM)

$452.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1933896

NUT, Hex Lock, 10-24 with Nylon Insert NC3B Black
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0030

Simplicity 054537

HANDLE
(Superseded to 054537MA)

$18.99

$

In Stock, only 3 left!

0

0040

Simplicity 1960404

SCREW, Truss Head Phillips, #10-24 x 3/4 Black
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0050

Simplicity 1733709

EDGING, Tube Grass Bag
(Superseded to 1733709SM)

$16.99

$

In Stock, only 2 left!

0

0060

Simplicity 1733695

BAG, Grass, 13-13/16 x 17-1/8 x 22-1/2
(Superseded to 1733695SM)

$140.99

$

In Stock, only 2 left!

0

0070

Simplicity 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0080

Simplicity 1733517

HOOP, Catcher
(Superseded to 1733517SM)

$76.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1703807A

HANGER, Grass Bag Hoop 10GA Twin - Black
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 1 left!

0

0100

Simplicity 1672023A

CLAMP, 10 Gauge for (2) 1-2" Diameter Rods
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1917356

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0120

Simplicity 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0130

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 1733624A

BRACKET, Tab Cross Support Triple
(Superseded to 1733624ASM)

$92.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1733623A

CHANNEL, Cross Support Triple
(Superseded to 1733623ASM)

$113.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1716870A

BAFFLE, Blowout L.H. 50" Mower Deck
(Superseded to 1716870ASM)

$164.99

$

In Stock, only 1 left!

0

0170

Simplicity 1716879A

BAFFLE, Blowout L.H. 44" Mower Deck
(Superseded to 1716879ASM)

$115.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1927557

NUT, Hex Whiz Lock Flange, 5/16-18, Large, Black
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

0190

Simplicity 1726364A

BAFFLE, Blowout R.H. 50" Mower Deck
(Superseded to 1726364ASM)

$74.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1731990A

BAFFLE, Blowout R.H. 44" Mower Deck
(Superseded to 1731990ASM)

$122.99

$

In Stock, only 1 left!

0

0210

Simplicity 1733946

ROD, 1/2" Diamter, 13-1/8 Long, 3 Bag Catcher Regular
(Superseded to 1733946SM)

$44.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1960371

SCREW, Head Head, 5/16-18 x 3/4, 1/10" Head
(Superseded to 1960371SM)

$5.49

$

Usually ships in 2-12 days

0

0230

Simplicity 1930595

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 1-1/4
(Superseded to 1930595SM)

$3.99

$

In Stock, Qty 5

0

0240

Simplicity 1935048

NUT, Hex Flange, Two Way Locking, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0250

Simplicity 2171600

STRAP,HOOD,BLACK RUBBERCLAMP, HOSE, 1.000 DIA.
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

0260

Simplicity 1960252

BOLT-RD HD SH SQ NK 1/4-20X0. 625 G5 BLK
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0270

Simplicity 720543

PIN, Latch
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

0280

Simplicity 720076

SCREW, Machine, 1/4-20 x 1
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

0290

Simplicity 720074

SCREW, Machined 1/4- 20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0300

Simplicity 1733885

ELBOW, Upper Tube, Black Poly, Regular 3 Bag
(Superseded to 1733885SM)

$103.99

$

Usually ships in 2-12 days

0

0310

Simplicity 720533

HANDLE CONNECT TUBE
(Superseded to 720533FS)

$17.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1928372

NUT, Hex KEPS 1/4-20 BLK
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

0330

Simplicity 1930642

NUT, Hex Flange, 1/4-20 Top Lock, Small
(Superseded to 703916)

$4.99

$

In Stock, Qty 6

0

0340

Simplicity 1734327

TUBE, Boot Black Poly ZTS Twin Catcher
(Superseded to 1734327SM)

$

$

Not available

0350

Simplicity 1925003

SCREW-HEX WSHR HD TAPTT 1/4-20X0.500 BLK
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

0360

Simplicity 1733504A

PIVOT, Hinge, 12GA Twin Catcher Regular
(Superseded to 1733504ASM)

$22.99

$

Usually ships in 2-12 days

0

0397

Simplicity 5403786A

SUPPORT, Upright
(Superseded to 5403786ASM)

$176.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1732625A

PLATE & PINS ASSEMBLY
(Superseded to 1732625ASM)

$131.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1717085

HITCH ROD
(Superseded to 1717085SM)

$50.99

$

In Stock, only 2 left!

0

0440

Simplicity 5049082A

HOLDER ASMY-WEIGHT CONS Z CAT - BLACK
(Superseded to 5049082ASM)

$233.99

$

Usually ships in 2-12 days

0

0450

Simplicity 1660928

HARDWARE BAG

Note: (Refer to Note:*)

$

$

Not available

0450-10

Simplicity 1921176

CAPSCREW, Hex Head, 1/2-13 x 1-11/32, G5
(Superseded to 1921176SM)

$4.99

$

In Stock, only 1 left!

0

0450-20

Simplicity 1960708

NUT, Hex Nylon Lock 1/2-13
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1660969

HARDWARE BAG

Note: (Refer to Note:*)

$

$

Not available

0460-50

Simplicity 1928352

NUT, Hex, Flange, Whizlock, 5/16-18 x 1/2
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0460-60

Simplicity 1934654

BOLT, Hex-Head, Serated Flange, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

0460-70

Simplicity 1960033

Clip, Hair Pin
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

0460-80

Simplicity 1931332

BOLT, Round Head, Short Neck, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0460-90

Simplicity 1927557

NUT, Hex Whiz Lock Flange, 5/16-18, Large, Black
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

0460-100

Simplicity 1726578A

PLATE, Boot Rod Mount
(Superseded to 1726578ASM)

$32.99

$

Usually ships in 2-12 days

0

0460-110

Simplicity 1960074

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0460-120

Simplicity 720525

PIN, Cover Hinge .375DIA 3.75 LG YEL
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

0460-130

Simplicity 722855

SCREW, 1/4 ABX.75 (Not shown)
(Superseded to 26X239MA)

$4.49

$

Usually ships in 2-12 days

0

0460-260

Simplicity 1732617

* BOLT-U 1 x 3/4 Opening, 3/8-16 x 1 1/8
(Superseded to 1732617SM)

$7.49

$

Usually ships in 2-12 days

0

0460-270

Simplicity 1960687

NUT, Hex Lock Flange, 5/16 - 18 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0550

Simplicity 5049143

ROD-.500DIA 13.75LG YELLOW CON
(Superseded to 5049143SM)

$34.99

$

Usually ships in 2-12 days

0

0560

Simplicity 1735597

TUBE, Clear
(Superseded to 1735597SM)

$164.99

$

Usually ships in 2-12 days

0

0640

Simplicity 2176012

CLIP, Hair Pin, .093 Dia Spring Wire Black Zinc
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0700

Simplicity 5049151

CHUTE, Middle
(Superseded to 5049151SM)

$107.99

$

Usually ships in 2-12 days

0

0710

Simplicity 1660974

HARDWARE BAG

Note: (Refer to Note:*)

$

$

Not available

0710-10

Simplicity 1910531

WASHER
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

0710-20

Simplicity 1960404

SCREW, Truss Head Phillips, #10-24 x 3/4 Black
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0710-30

Simplicity 1933896

NUT, Hex Lock, 10-24 with Nylon Insert NC3B Black
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0
