5900630 - Simplicity Pacer 34" Walk-Behind Mower 34" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

Pacer 34" Walk-Behind Mower

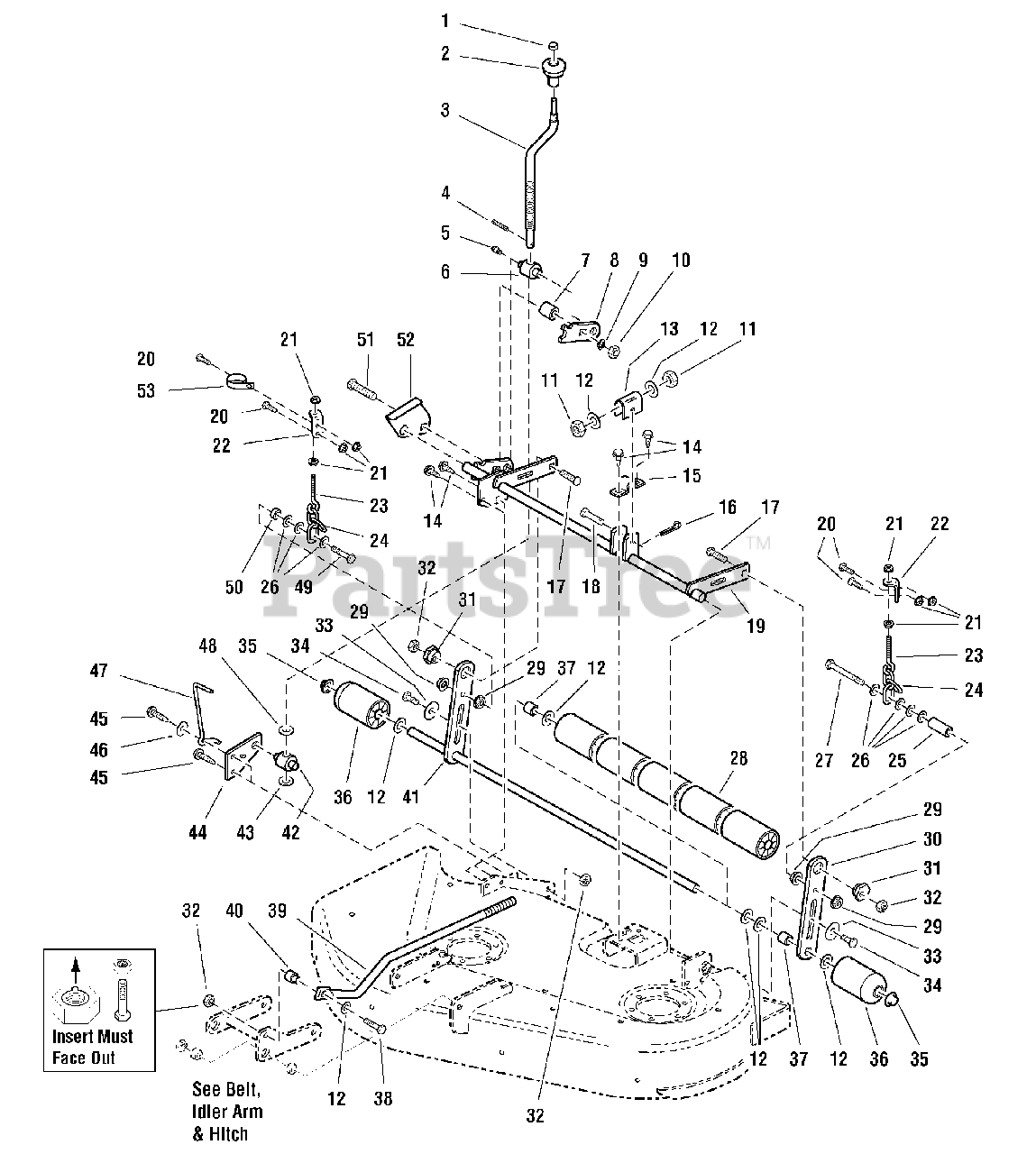

34" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Simplicity 1960093SM

NUT, Push, 3/8, Black
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

2

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

3

Simplicity 1719901SM

CRANK, Height Adjustment, Black

$48.99

$

In Stock, only 1 left!

0

4

Simplicity 2816001SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

5

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

6

Simplicity 1715892SM

TRUNNION

$39.99

$

In Stock, only 2 left!

0

7

Simplicity 1679166SM

SPACER

$7.49

$

In Stock, only 2 left!

0

8

Simplicity 1722978ASM

ARM, Height Adjust

$

$

Not available

9

Simplicity 5025331SM

LOCKWASHER, 1/2

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 5025038SM

NUT, Hex, 1/2-13

$

$

Not available

11

Simplicity 5025040SM

NUT, Hex, 5/8-18

$3.49

$

In Stock, Qty 6

0

12

Simplicity 5025281SM

WASHER, 5/8

$3.99

$

In Stock, Qty 6

0

13

Simplicity 1706645ASM

TRUNNION
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

16

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

17

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 5

0

18

Simplicity 2118053SM

PIN, Clevis
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

19

Simplicity 1724362ASM

SHAFT ASSEMBLY

$72.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025127SM

NUT, Hex Serrated Flange, 5/16-18

$3.49

$

In Stock, Qty 7

0

22

Simplicity 1724619ASM

BRACKET, Rear Roller

$8.99

$

Usually ships in 2-12 days

0

23

Simplicity 2107121SM

EYEBOLT

$14.99

$

Usually ships in 2-12 days

0

24

Simplicity 1707514ASM

CHAIN, 3 Links

$14.99

$

In Stock, only 1 left!

0

25

Simplicity 1719868SM

SPACER

$2.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

27

Simplicity 1960653SM

CAPSCREW, Hex Head, 3/8-16 x 3-3/4, Black

$

$

Not available

28

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

29

Simplicity 5025128SM

NUT, Hex Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

30

Simplicity 1724394ASM

BAR, Roller

$6.99

$

Usually ships in 2-12 days

0

31

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

32

Simplicity 2860681SM

NUT, Hex Lock, Aluminum Insert, 3/8-16

$4.49

$

In Stock, Qty 7

0

33

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

35

Simplicity 1960520SM

NUT, Push, 5/8, Black
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 1722036SM

ROLLER, End

$7.99

$

In Stock, Qty 20+

0

37

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

38

Simplicity 5025013X14SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$3.99

$

In Stock, only 2 left!

0

39

Simplicity 1724425SM

ROD, Pitch

$125.99

$

Usually ships in 2-12 days

0

40

Simplicity 1706644SM

SPACER

$8.49

$

In Stock, only 1 left!

0

41

Simplicity 1724396ASM

SHAFT & BAR ASSEMBLY

$49.99

$

Usually ships in 2-12 days

0

42

Simplicity 1724009SM

TRUNNION

$

$

Not available

43

Simplicity 1704097SM

WASHER, Detent, Black

$4.49

$

In Stock, Qty 11

0

44

Simplicity 1704080ASM

PLATE

$8.49

$

In Stock, only 1 left!

0

45

Simplicity 1931202SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4, Black
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

46

Simplicity 1919381SM

WASHER, 5/16, Black
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

47

Simplicity 1704114SM

ROD, Height of Cut

$16.99

$

In Stock, Qty 9

0

48

Simplicity 5025158SM

WASHER, 1/2, Black

$3.99

$

In Stock, Qty 8

0

49

Simplicity 5025013X16SM

CAPSCREW, Hex Head, 3/8-16 x 2

$4.49

$

In Stock, Qty 6

0

50

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

51

Simplicity 1960489SM

CARRIAGE BOLT, 1/2-13 x 2-1/2, Black

$9.99

$

Usually ships in 2-12 days

0

52

Simplicity 1724512ASM

BRACKET, Height of Cut

$13.99

$

Usually ships in 2-12 days

0

53

Simplicity 5023173SM

CLAMP

$3.99

$

Usually ships in 2-12 days

0
