5900525 - Simplicity Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton Main Frame & Front Suspension Group (432FRM0) Parts Diagram

Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton

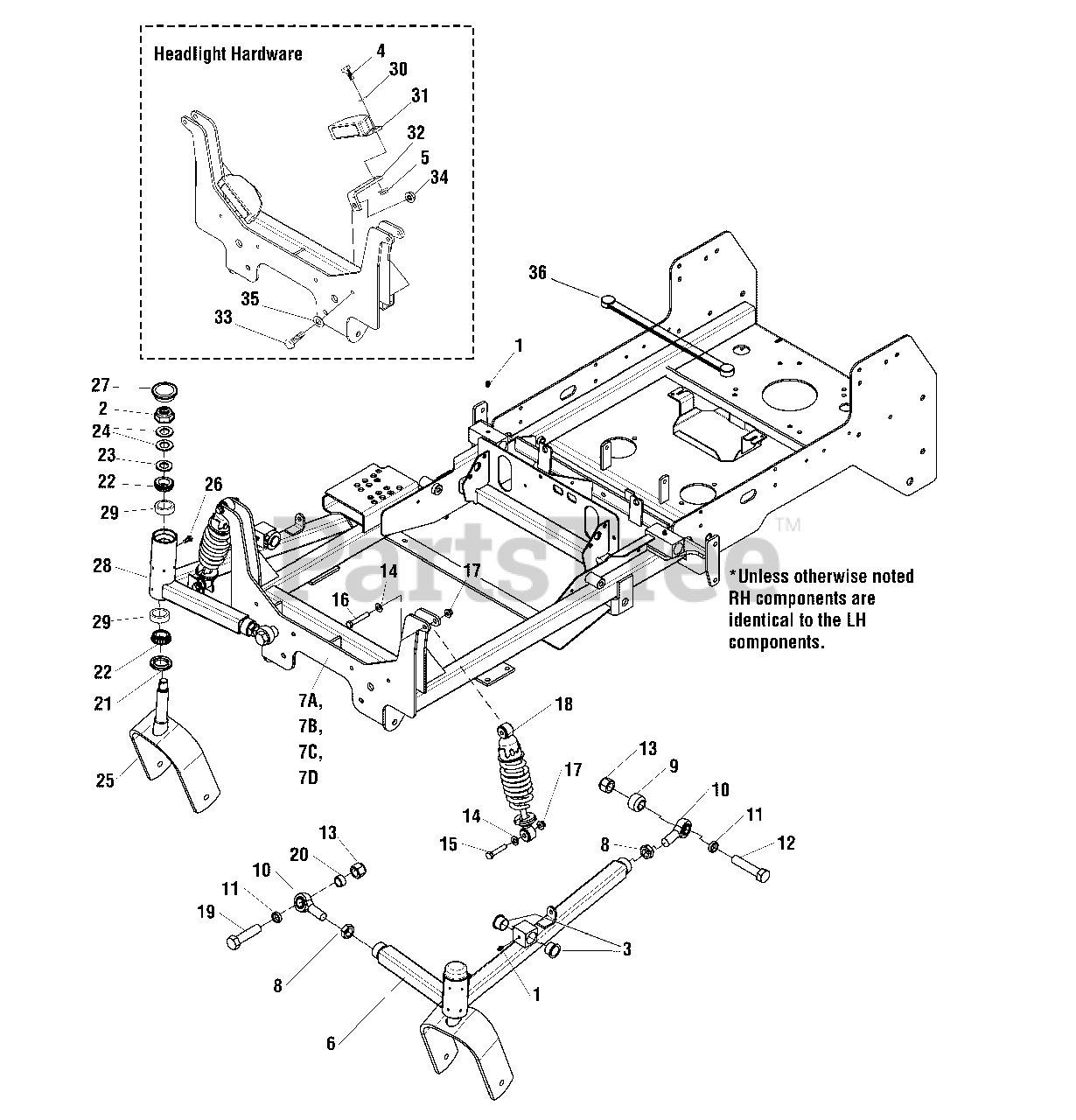

Main Frame & Front Suspension Group (432FRM0) Parts Diagram

  • Title

1

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STR

$3.99

$

In Stock, only 3 left!

0

2

Simplicity 5025448SM

NUT, 3/4-16 HEX JAM NYLON LOCK

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 5023356SM

BUSHING, 1.00 X 1.13 X .75, PLASTIC

$6.49

$

In Stock, Qty 5

0

4

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 5402214CSM

WELD, FRONT A-ARM, LH - ORANGE

$

$

Not available

7a

Simplicity 5404097CYP

WELD, MAIN FRAME, COBALT

Note: (S/N: 2014344991 & BELOW)

$2436.99

$

Usually ships in 2-12 days

0

7b

Simplicity 5407041CYP

WELD, MAIN FRAME, COBALT

Note: (S/N: 2014344992 - 2016322687)

$2465.99

$

Usually ships in 2-12 days

0

7c

Simplicity 5410771CYP

WELD, MAIN FRAME, COBALT

Note: (S/N: 2016322688 - 2016364869)

$

$

Not available

7d

Simplicity 5410895CYP

WELD, MAIN FRAME, COBALT

Note: (S/N: 2016364870 & Above)

$

$

Not available

8

Simplicity 5025093SM

NUT, HEX JAM, 3/4-16

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 5046093SM

SPACER, .75 X 1.50 X 1.00

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 5022039SM

BALL JOINT, 3/4-16 MALE

$37.99

$

In Stock, Qty 13

0

11

Simplicity 5047461SM

SPACER, .76 X 1.00 X .25

$4.99

$

In Stock, only 1 left!

0

12

Simplicity 5025265X28SM

3/4-16 X 3.5" HHCS YZP GR 5

$15.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025284SM

NUT, 3/4-16 HEX NYLON LOCK

$3.49

$

In Stock, only 3 left!

0

14

Simplicity 5025293SM

WASHER, 3/8 GD.9 FLAT

$3.99

$

In Stock, Qty 5

0

15

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2" GD5

$4.49

$

In Stock, Qty 6

0

16

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4" GD5

$3.99

$

In Stock, only 4 left!

0

17

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 5023436SM

COIL - OVER SHOCK ASSEMBLY

$210.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025265X24SM

BOLT, 3/4-16 X 3" GD 5

$13.99

$

In Stock, only 2 left!

0

20

Simplicity 5046092SM

SPACER, .76 X 1.00 X .50

$5.99

$

In Stock, only 1 left!

0

21

Simplicity 5021072SM

SEAL, GREASE

$7.49

$

In Stock, only 3 left!

0

22

Simplicity 5020884SM

BEARING, TAPPERD ROLLER, 1"

$25.99

$

In Stock, Qty 20+

0

23

Simplicity 5025160SM

WASHER, 3/4" SAE

$3.99

$

In Stock, Qty 5

0

24

Simplicity 5025449SM

WASHER, BELLEVILLE - 1.500 X .755

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 5402208CSM

WELD, CASTER YOKE - ORG

$170.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025457SM

BOLT, 1/4-28 X 1/2, GD5 YZ

$3.99

$

In Stock, only 3 left!

0

27

Simplicity 5102929YP

CAP, LOW PROFILE, STEEL

$9.99

$

In Stock, Qty 5

0

28

Simplicity 5402215CSM

WELD, FRONT A-ARM, RH - ORANGE
(Superseded to 5400567CSM)

$323.99

$

Usually ships in 2-12 days

0

29

Simplicity 5020883SM

BEARING CUP

$9.49

$

In Stock, only 3 left!

0

30

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 5023482SM

HEADLIGHT, 4" RECTANGULAR

$47.99

$

Usually ships in 2-12 days

0

32

Simplicity 5401160CSM

MOUNT, HEAD LIGHT - ORANGE

$15.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1"
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

34

Simplicity 5025392SM

NUT, 5/16-18" NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 5025155SM

WASHER, 5/16" SAE FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

36

Simplicity 1722009SM

STRAP-BLACK RUBB

$10.99

$

In Stock, only 1 left!

0
