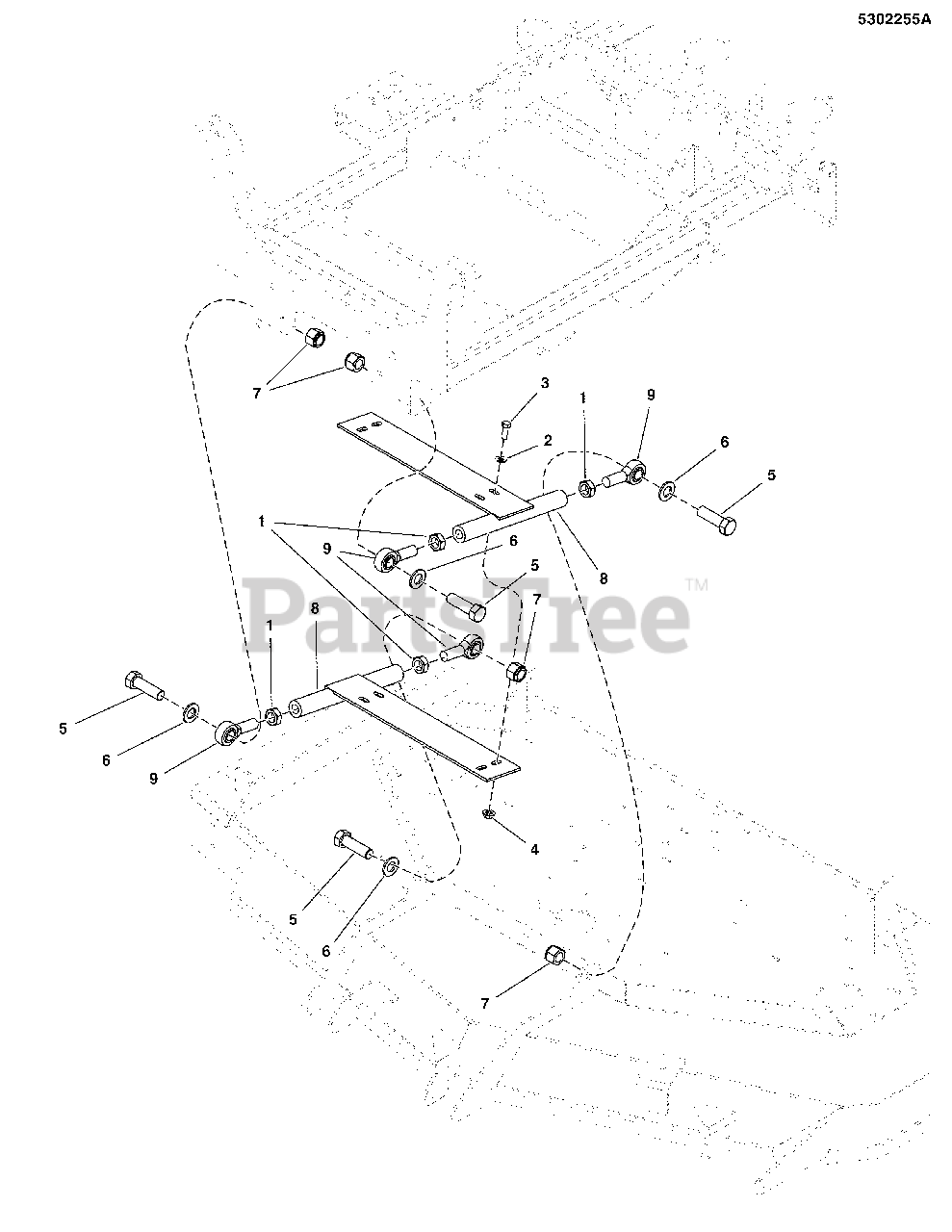

5900525 - Simplicity Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton Lift Group - Puller Bar S/N: 2016364870 & Above (5302255A) Parts Diagram

Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton

Lift Group - Puller Bar S/N: 2016364870 & Above (5302255A) Parts Diagram

  • Title
1

Simplicity 5025093SM

NUT, 3/4-16 HEX JAM

$4.49

$

In Stock, only 1 left!

0

2

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

3

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, Qty 6

0

4

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

5

Simplicity 5025265X20YP

BOLT, 3/4-16 X 2-1/2 YZ GD8

$10.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025160SM

WASHER, 3/4 SAE

$3.99

$

In Stock, Qty 7

0

7

Simplicity 5025284SM

NUT, 3/4-16 HEX NYLON LOCK

$3.49

$

In Stock, only 3 left!

0

8

Simplicity 5406832AYP

WELD, DECK STABILIZER, IS2500Z-246 - BLK

$160.99

$

In Stock, only 1 left!

0

9

Simplicity 5022039SM

BALL JOINT, 3/4-16, MALE

$37.99

$

In Stock, Qty 13

0
