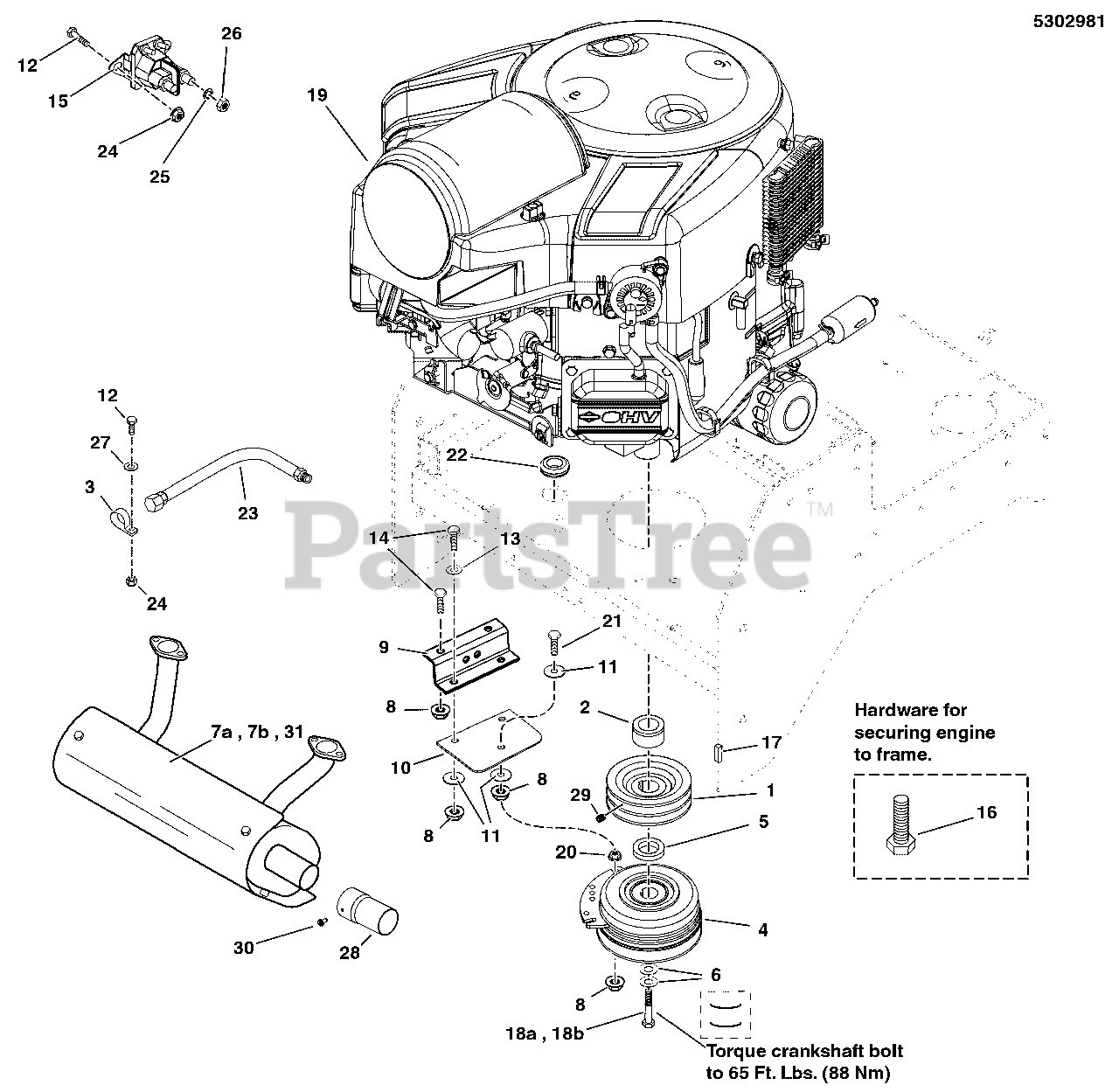

5900525 - Simplicity Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton - Commercial Turf Parts Diagram

Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton - Commercial Turf Parts Diagram

  • Title

1

Simplicity 5047075

PULLEY, CRANKSHAFT (DOUBLE A)
(Superseded to 5047075SM)

$137.99

$

Usually ships in 2-12 days

0

2

Simplicity 5103626

SPACER, 1.13 X 1.75 X 1.09, PM

$16.99

$

Usually ships in 2-12 days

0

3

Simplicity 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

5

Simplicity 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

$19.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 2 left!

0

7a

Simplicity 5100907

MUFFLER, B&S-ELS
(Superseded to 5100907SM)

Note: (49L9770125G5 Engines - S/N: 2016294925 & Below)

$

$

Not available

7b

Simplicity 5100907

MUFFLER, B&S-ELS
(Superseded to 5100907SM)

Note: (49M9770114G5 Engines - S/N: 2016409321 & Below)(Was 696116)

$

$

Not available

8

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

10

Simplicity 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

11

Simplicity 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

15

Simplicity 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 5050407X8

KEY, 1/4 SQ. X 1.00
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

18a

Simplicity 5102864

BOLT, CRANKSHAFT, 7/16"X2-1/2
(Superseded to 5102864YP)

Note: (S/N: 2015745413 & Below)

$5.49

$

In Stock, only 1 left!

0

18b

Simplicity 5102865

BOLT, CRANKSHAFT, 7/16"X2-3/4
(Superseded to 5102865YP)

Note: (S/N: 2015745414 & Above)

$5.49

$

In Stock, only 1 left!

0

19

** ENGINE, B&S, COMM TURF

$

$

Not available

20

Simplicity 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

21

Simplicity 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Simplicity 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Simplicity 1726498

HOSE-OIL DRAIN .375ID 16.5L
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025126

NUT, 1/4-20 HEX SERRATED FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

26

Simplicity 5023216

NUT, Hex Jam, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

27

Simplicity 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

Note: (SV)

$14.99

$

Usually ships in 2-12 days

0

29

Simplicity 5025531

SET SCREW, 5/16-18 X 3/8, KNURL
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0

30

Simplicity 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

Note: (SV)

$3.49

$

In Stock, only 2 left!

0

31

Simplicity 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

Note: (49L9770125G5 Engines - S/N: 2016294926 & Above)(49M9970114G5 Engines - S/N: 2016409322 & Above)

$222.99

$

Usually ships in 2-12 days

0
