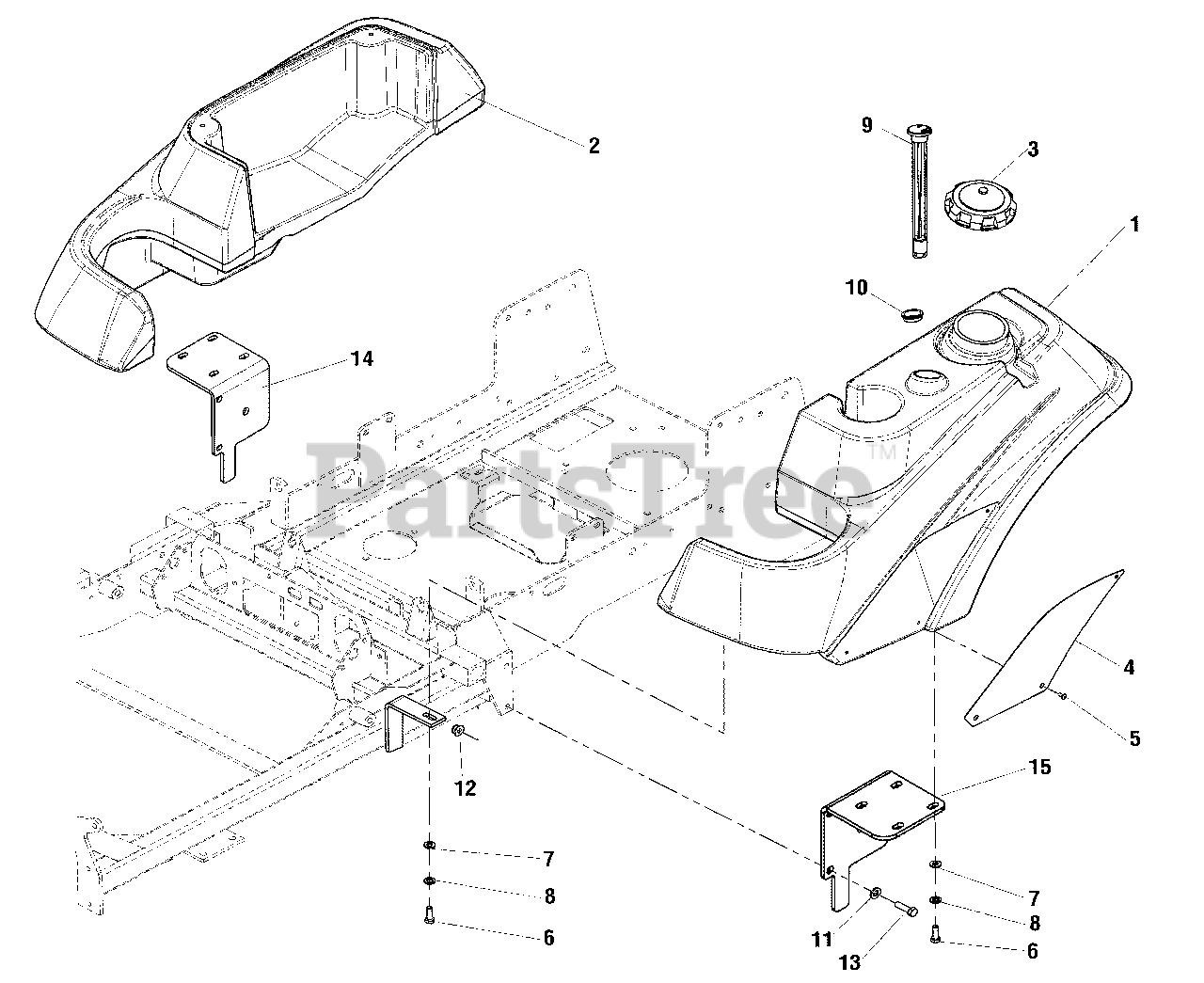

5900522 - Simplicity Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton Fuel Tank & Mount Group - 61" Models & 52" Models S/N: 2014624506 & Above Parts Diagram

Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton

Fuel Tank & Mount Group - 61" Models & 52" Models S/N: 2014624506 & Above Parts Diagram

  • Title
1a

Simplicity 5103176

TANK, FUEL, LH, 1500Z
(Superseded to 5103176YP)

Note: (S/N: 2014923026 & Above)

$551.99

$

Usually ships in 2-12 days

0

1b

Simplicity 5049947

TANK, FUEL, CITATION/ZT400 - LH
(Superseded to 5103301YP)

Note: (S/N: 2014923025 & Below)

$555.99

$

Usually ships in 2-12 days

0

2

Simplicity 5049948

TANK, FENDER, CITATION/ZT4000 - RH
(Superseded to 5049948SM)

$308.99

$

In Stock, only 1 left!

0

3a

Simplicity 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

Note: (S/N: 2014923026 & Above)

$40.99

$

In Stock, only 1 left!

0

3b

Simplicity 5101272

FUEL CAP, 3.5", VENTED
(Superseded to 5101651SM)

Note: (S/N: 2014923025 & Below)

$30.99

$

In Stock, Qty 20+

0

4

Simplicity 5400250C

BADGE, IS1500Z
(Superseded to 5400250CSM)

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

6

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

7

Simplicity 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Simplicity 5022917

GAUGE, FUEL LEVEL
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

10

Simplicity 5022917X1

GROMMET
(Superseded to 5022917X1SM)

$6.99

$

In Stock, Qty 5

0

11

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

14

Simplicity 5403942A

WELD, TANK MOUNT - RH - BLK
(Superseded to 5403942AYP)

$58.99

$

Usually ships in 2-12 days

0

15

Simplicity 5403943A

WELD, TANK MOUNT - LH - BLK
(Superseded to 5403943AYP)

$58.99

$

Usually ships in 2-12 days

0
