5900522 - Simplicity Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton Evap Canister Group Parts Diagram

Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton

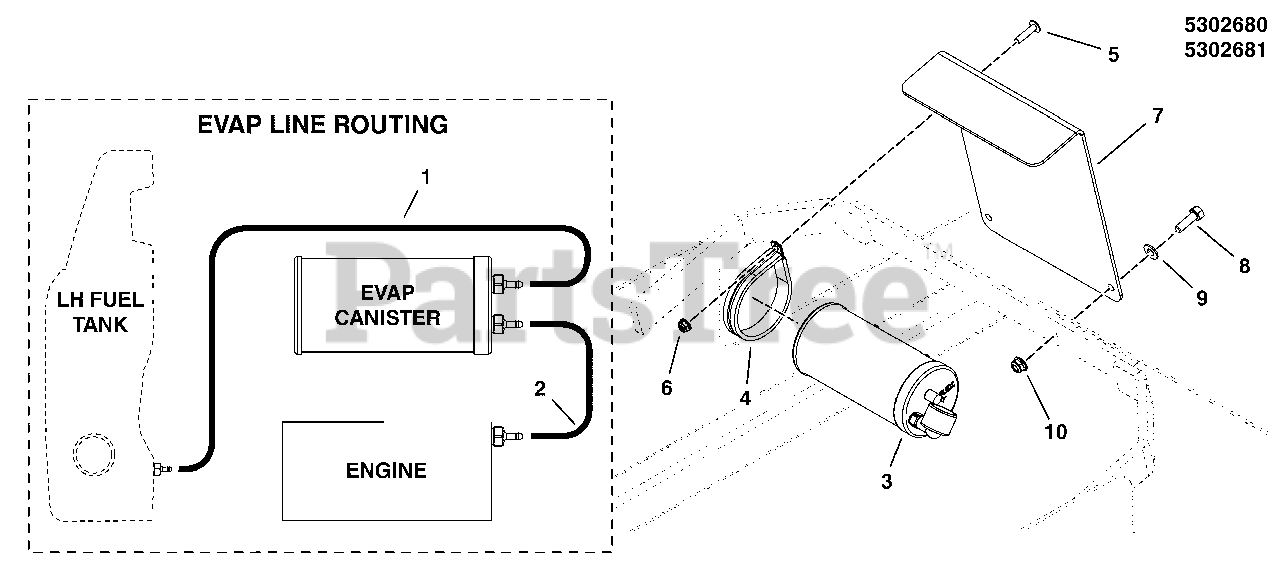

Evap Canister Group Parts Diagram

  • Title

1a

Simplicity 7700552X27

HOSE, VAPOR, 5MM ID, 27.00 LG
(Superseded to 7700552X32YP)

Note: (Briggs & Stratton 61" Models)

$9.99

$

In Stock, only 1 left!

0

1b

Simplicity 7700552X24P5

HOSE, VAPOR, 5MM ID, 24.50 LG
(Superseded to 7700552X24P5YP)

Note: (Briggs & Stratton 52" Models)

$

$

Not available

1c

Simplicity 7700552X30

HOSE, VAPOR, 5MM ID, 30.00 LG
(Superseded to 7700552X32YP)

Note: (Kawasaki Models)

$9.99

$

In Stock, only 1 left!

0

2

Simplicity 7700552X30

HOSE, VAPOR, 5MM ID, 30.00 LG
(Superseded to 7700552X32YP)

$9.99

$

In Stock, only 1 left!

0

3

Simplicity 313036SM

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$217.99

$

Usually ships in 2-12 days

0

4

Simplicity 5103055SM

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025299X6SM

BOLT, 1/4-20 X 3/4, ALLEN BUTTON HD, YZ

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5408210A

PLATE, CARB CANISTER MOUNT - BLK
(Superseded to 5408210AYP)

$53.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

10

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

11

DECAL, EPA CERT

Note: (Located on frame near Serial Tag)

$

$

Not available
