5900515 - Simplicity Pacer 32" Walk-Behind Mower 32" Mower Deck - Housing, Spindles, Blades & Pulleys Parts Diagram

Pacer 32" Walk-Behind Mower

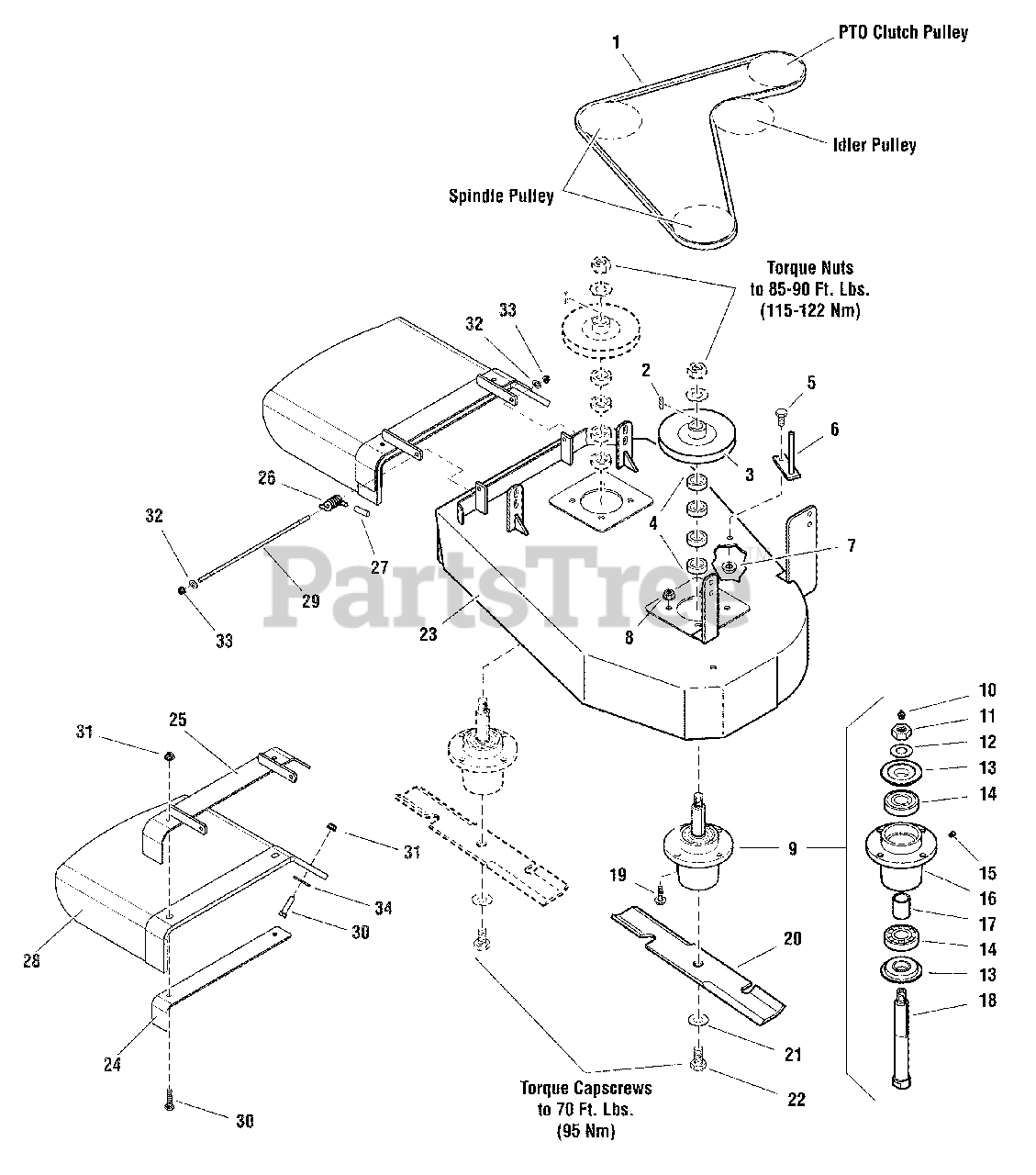

32" Mower Deck - Housing, Spindles, Blades & Pulleys Parts Diagram

  • Title

1

Simplicity 5022918SM

BELT, #7-7169

$48.99

$

Usually ships in 2-12 days

0

2

Simplicity 5050407X8SM

KEY, 1/4 SQ. X 1.00

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 5047638SM

PULLEY, SPINDLE

$57.99

$

Usually ships in 2-12 days

0

4

Simplicity 5041476SM

SPACER, 1.02 X 1.56 X .50

$5.49

$

In Stock, only 4 left!

0

5

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, Qty 6

0

6

Simplicity 5047777CSM

WELD, BELT GUIDE - ORG

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

8

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 5061096SM

ASSM, SPINDLE, LONG SHAFT

Note: (Includes Ref No. 10-18)

$243.99

$

Usually ships in 2-12 days

0

10

Simplicity 5023329SM

GREASE FITTING

$5.49

$

In Stock, only 4 left!

0

11

Simplicity 5025405SM

NUT, 3/4-16 HEX

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5025406SM

WASHER, 3/4 BELLEVILLE
(Superseded to 770223)

$4.49

$

In Stock, only 4 left!

0

13

Simplicity 5049793SM

TRASH SHIELD

$16.99

$

In Stock, only 4 left!

0

14

Simplicity 5023330SM

BEARING, .98 X 2.44 X .67

$23.99

$

In Stock, Qty 20+

0

15

Simplicity 5023296SM

FITTING, RELIEF, 1-5 PSI

$7.49

$

In Stock, only 1 left!

0

16

Simplicity 5061097SM

HOUSING, SPINDLE
(Superseded to 5102993YP)

$90.99

$

Usually ships in 2-12 days

0

17

Simplicity 5061099SM

SPACER, 1.00 x 1.25 x 1.75

$11.99

$

In Stock, only 4 left!

0

18

Simplicity 5061100SM

SHAFT, SPINDLE

$75.99

$

In Stock, Qty 7

0

19

Simplicity 5023156SM

BOLT, 5/16-18 X 1 1/4 FLANGE

$3.99

$

In Stock, only 1 left!

0

20

Simplicity 5020843X2

BLADE, 16.25

Note: (SET OF TWO)

$53.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025477SM

WASHER, 5/8 GRADE 8, YZ

$3.99

$

In Stock, Qty 9

0

22

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 770136)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5047576CSM

WELD, MOWER DECK, 32" - ORG

$

$

Not available

24

Simplicity 5404258A

BRACKET, CHUTE SUPPORT - BLK
(Superseded to 5404258AYP)

$12.99

$

Usually ships in 2-12 days

0

25

Simplicity 5404257CSM

WELD, CHUTE BRACKET - ORG

$77.99

$

Usually ships in 2-12 days

0

26

Simplicity 7101082SM

SPRING-TORSION CHUTE 44/50" BLK
(Superseded to 1759750YP)

$8.49

$

In Stock, Qty 20+

0

27

Simplicity 1723323SM

CAP-SPRING END .093ID .75 LG BLACK VINYL

$4.99

$

In Stock, only 1 left!

0

28

Simplicity 5404335YP

RUBBER DISCHARGE CHUTE, S50X-36 OFFSET

$153.99

$

Usually ships in 2-12 days

0

29

Simplicity 5045914SM

ROD, CHUTE PIVOT

$11.99

$

Usually ships in 2-12 days

0

30

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

33

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 11

0

34

Simplicity 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

Usually ships in 2-12 days

0
