59004 - Toro 42" Side-Discharge Mower Deck (SN: 009000001 - 009999999) (1969) 42" MOWER DECK ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

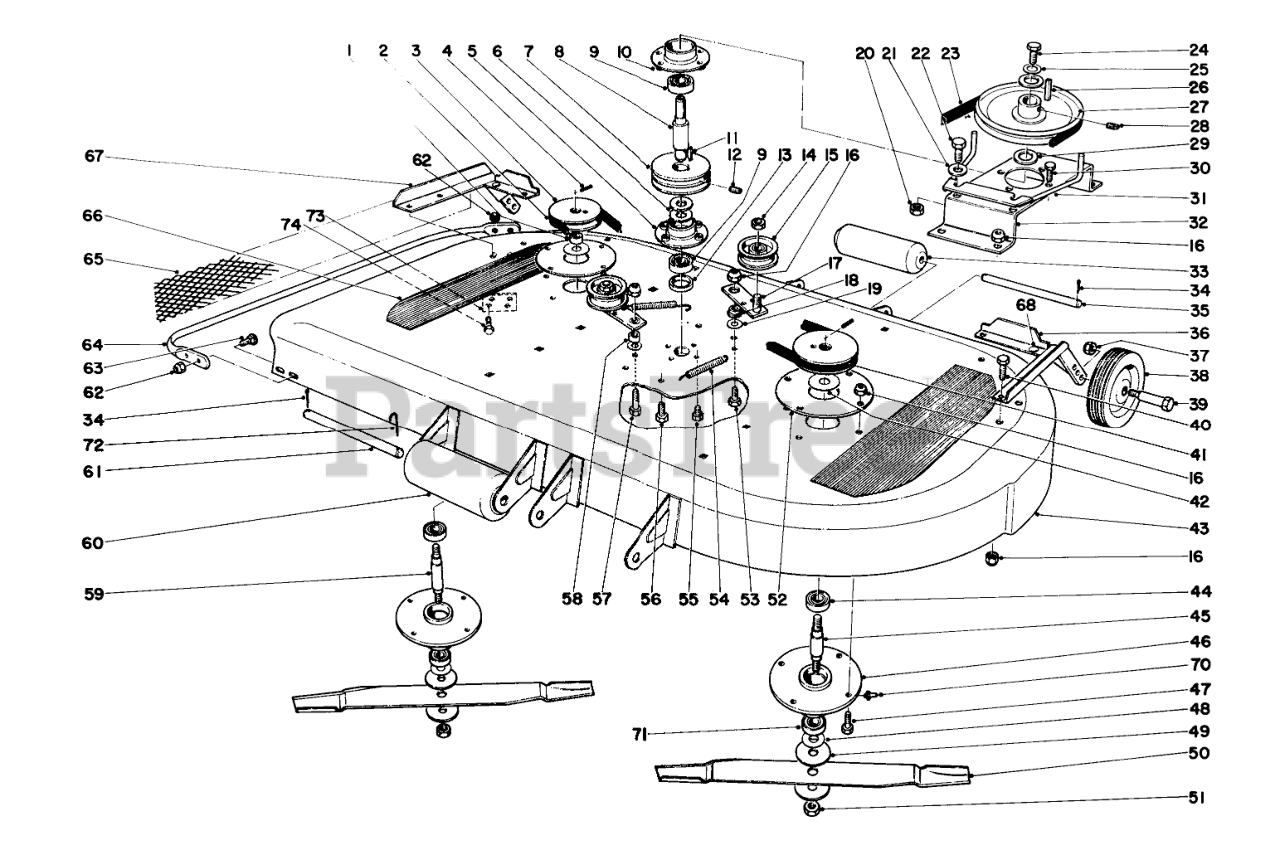

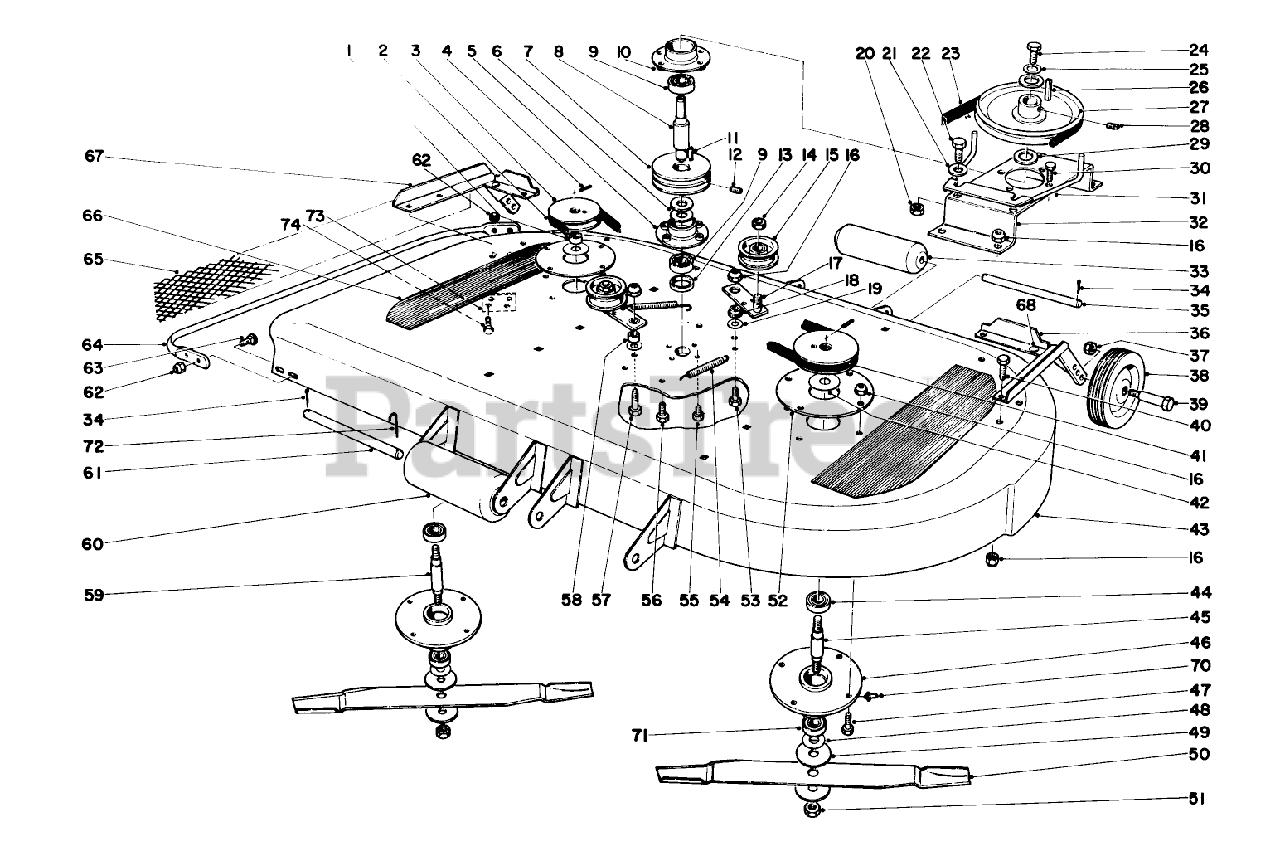

42" MOWER DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 7-0577

Spacer

$

$

Not available

2

Toro 7-0073

Belt
(Superseded to 28-8630)

$24.99

$

Usually ships in 3-6 days

0

3

Toro 7-0578

Pulley

$

$

Currently unavailable

4

Toro 32121-74

ROLL PIN

$

$

Currently unavailable

5

Toro 7-0638

Bearing Housing

$

$

Currently unavailable

6

Toro 7-0126

Washer

$

$

Not available

7

Toro 7-0634

Pulley

$

$

Not available

8

Toro 7-0633

BLADE DRIVE SHAFT

$

$

Not available

9

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 17

0

10

Toro 7-0641

Bearing Housing

$

$

Not available

11

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

12

Toro 3246-5

Set Screw

$

$

Currently unavailable

13

Toro 7-0626

Spacer

$

$

Not available

14

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

15

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

17

Toro 7-3377

Idler Arm

$

$

Currently unavailable

18

Toro 7-0083

Bushing

$

$

Currently unavailable

19

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

21

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

23

Toro 7-0630

V-BELT

$

$

Not available

24

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

25

Toro 7-0553

Washer

$

$

Currently unavailable

26

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

27

Toro 7-0627

Pulley

$

$

Currently unavailable

28

Toro 3242-13

Set Screw
(Superseded to 3242-1)

$4.49

$

Usually ships in 3-6 days

0

29

Toro 7-0131

Washer
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

30

Toro 32140-55

1/4-20 X 3/8 SEMS SCR

$

$

Not available

31

Toro 7-3370

Belt Guide

$

$

Currently unavailable

32

Toro 7-0636

Support

$

$

Currently unavailable

33

Toro 7-0276

Roller

$

$

Currently unavailable

34

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

35

Toro 7-0277

ROLLER SHAFT

$

$

Not available

36

Toro 7-0593

Bracket

$

$

Currently unavailable

37

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

38

Toro 241-87

Wheel

$

$

Not available

39

$

$

Currently unavailable

40

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

41

$

$

Not available

42

Toro 7-0131

Washer
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

43

Toro 7-0574

Housing

$

$

Not available

44

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 17

0

45

Toro 7-0597

LH BLADE SHAFT

$

$

Not available

46

Toro 7-0287

MOWER SPINDLE HOUSING

$

$

Not available

47

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

48

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

49

Toro 7-0253

WASHER

$

$

Not available

50

Toro 7-0587

Blade

$

$

Currently unavailable

51

Toro 32152-6

NUT-LOCK, CONE

$9.49

$

Usually ships in 3-6 days

0

52

Toro 7-0252

Washer

$

$

Not available

53

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

54

Toro 7-0582

IDLER ARM SPRING

$

$

Not available

55

Toro 32140-55

1/4-20 X 3/8 SEMS SCR

$

$

Not available

56

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

57

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

58

Toro 7-0581

Spacer

$

$

Currently unavailable

59

Toro 7-0598

Blade Shaft

$

$

Not available

60

Toro 7-0624

Roller

$

$

Not available

61

Toro 7-0590

ROLLER SHAFT

$

$

Not available

62

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

63

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

64

Toro 7-0588

Guard

$

$

Not available

65

Toro 7-0573

Mulcher

$

$

Currently unavailable

66

Toro 7-0623

Foot Pad

$

$

Currently unavailable

67

Toro 7-0592

Bracket

$

$

Currently unavailable

68

Toro 2410-7

Plug Button

$

$

Currently unavailable

70

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

71

Toro 251-123

.6693 RP BALL BEARING

$

$

Not available

72

Toro 7-6280

Retainer Roller

$

$

Currently unavailable

73

Toro 7-9060

Bracket Blade Guard

$

$

Currently unavailable

74

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
