59004 - Toro 42" Side-Discharge Mower Deck (SN: 000000001 - 000999999) (1970) 42" MOWER DECK LINKAGE ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

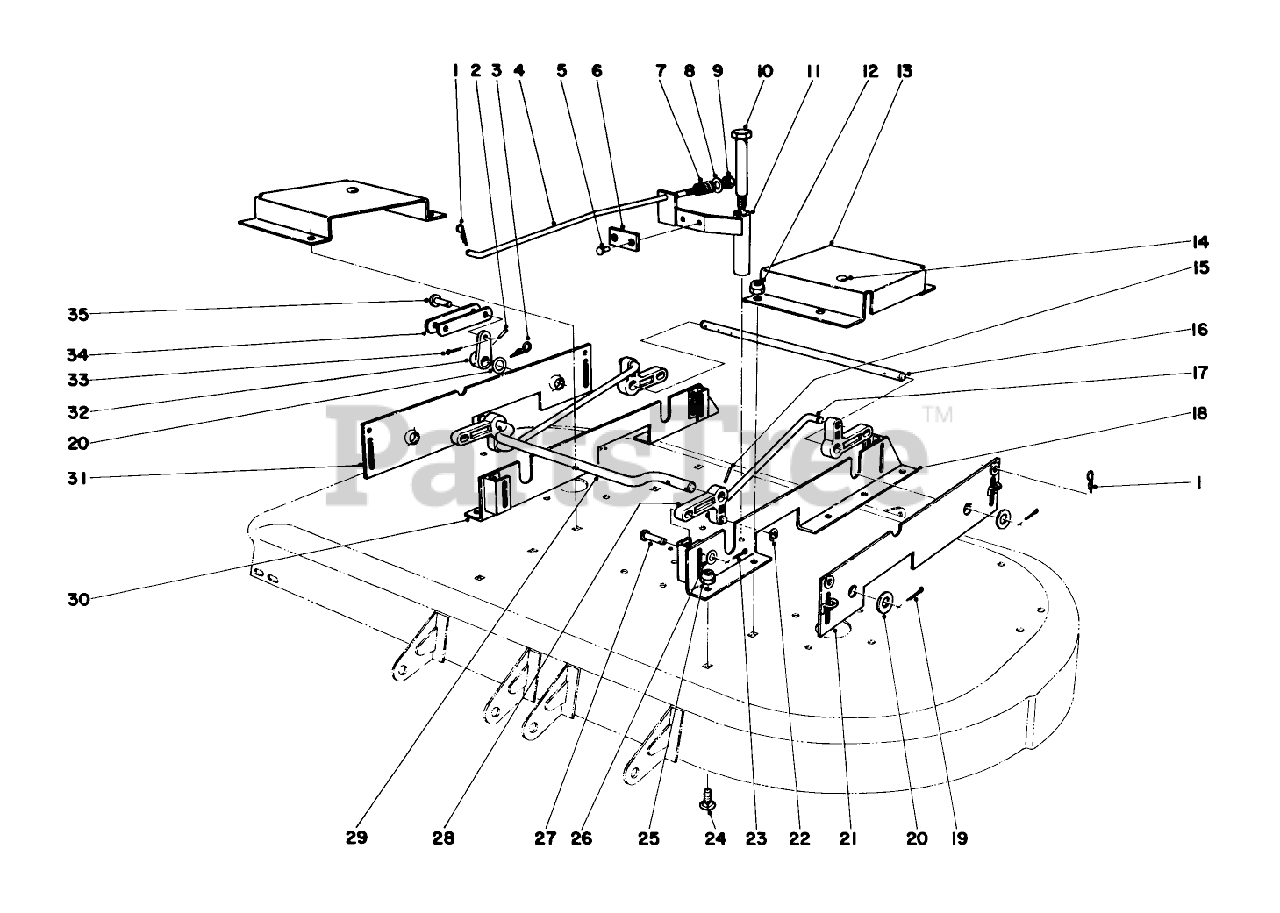

42" MOWER DECK LINKAGE ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

2

Toro 32121-75

Pin Drive

$

$

Currently unavailable

3

Toro 3290-290

HAIRPIN COTTER

$

$

Not available

4

Toro 7-0631

Brake Rod

$

$

Currently unavailable

5

$

$

Not available

6

Toro 7-0643

BLADE BRAKE LINING

$

$

Not available

7

Toro 7-0514

Spring

$

$

Not available

8

Toro 7-0533

Washer

$

$

Currently unavailable

9

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

10

Toro 7-0647

Shoulder Bolt

$

$

Currently unavailable

11

Toro 7-0642

a. Bracket

$

$

Currently unavailable

12

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

13

Toro 7-0622

Cover

$

$

Currently unavailable

14

Toro 2410-23

Plug Button

$

$

Not available

15

Toro 32121-71

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

16

Toro 7-0611

Rear Pivot Shaft

$

$

Currently unavailable

17

Toro 7-0608

Lift Link

$

$

Not available

18

Toro 7-0584

Bracket Assy. Lower

$

$

Not available

19

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

20

Toro 7-0131

Washer
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 15

0

21

Toro 7-0607

Mower Plate Housing

$

$

Not available

22

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 4 left!

0

23

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

24

Toro 7-0250

Screw
(Superseded to 26-0430)

$

$

Not available

25

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

26

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

27

Toro 7-0586

Lift Pin

$

$

Not available

28

Toro 7-0265

Bell Crank

$

$

Not available

29

Toro 7-0610

Front Pivot Shaft

$

$

Not available

30

Toro 7-0583

Bracket Assy. Lower

$

$

Not available

31

Toro 7-0606

Mower Plate Housing

$

$

Not available

32

Toro 7-0612

Lever

$

$

Currently unavailable

33

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

34

Toro 7-0591

Adjusting Link

$

$

Currently unavailable

35

Toro 7-0511

Pin
(Superseded to 283-2)

$13.99

$

In Stock, only 2 left!

0
