590001 - Gravely 850, 851 Eaton Hydro Transaxle Service Kit SERVICE KIT Parts Diagram

850, 851 Eaton Hydro Transaxle Service Kit

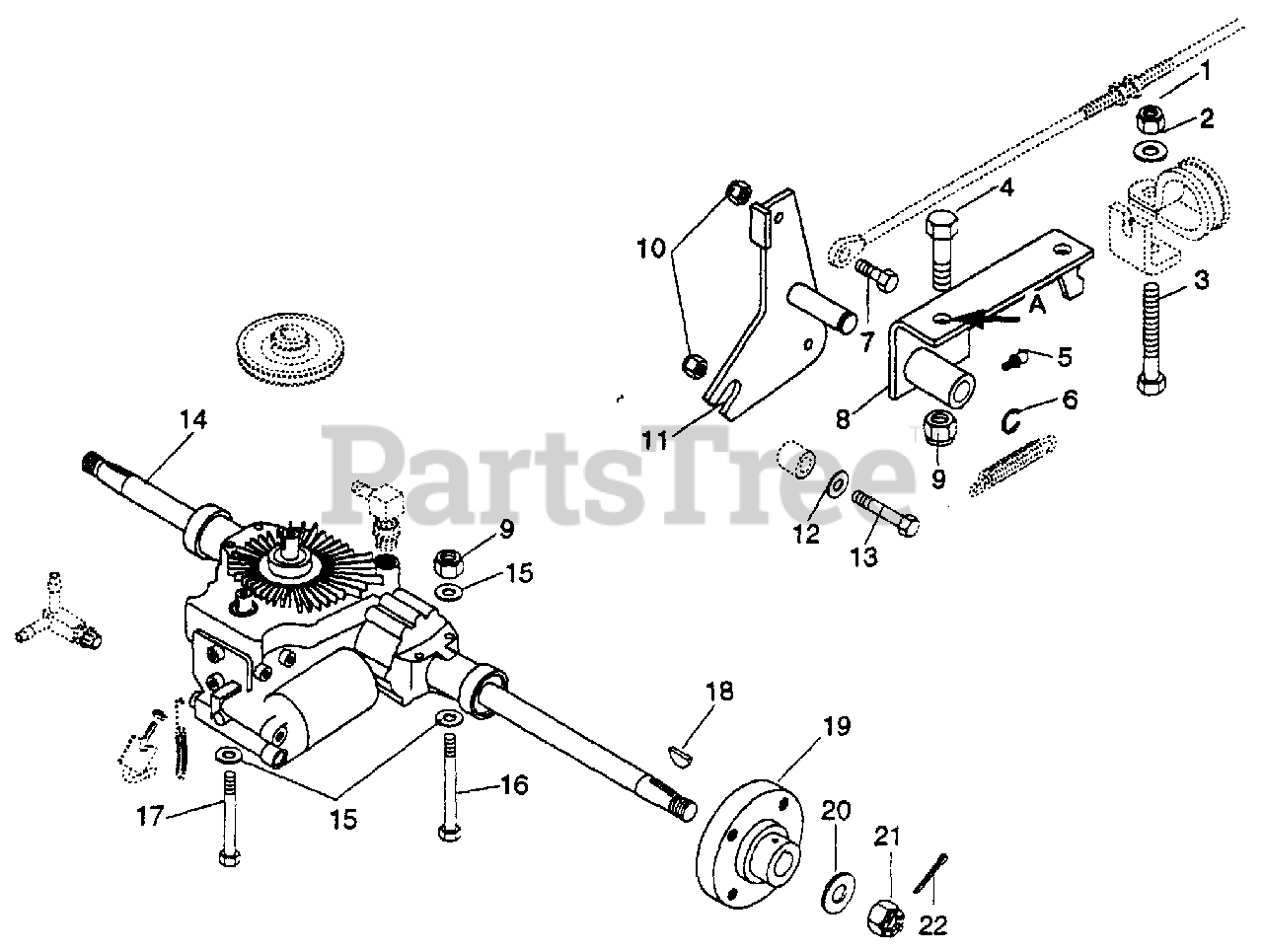

SERVICE KIT Parts Diagram

  • Title
1

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 120393

WSHR-FL-STL .344 X .688 X .065 PL
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 180079

BLT-HEX .31-18 X 1.00 PL GR 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 180122

BLT-HEX .38-16 X 1.00 PL GR 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 411027

FTG-LUBE .25-28 X .256
(Superseded to 07012600)

$

$

Not available

6

Gravely 014981

RG-RTNG-EXT .392 X .042

$

$

Not available

7

Gravely 180021

BLT-HEX .25-20 X .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 052065

WLDMT, BRAKE PIVOT
(Superseded to 09009000)

$

$

Not available

9

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 051665

WLDMT, BRAKE ARM
(Superseded to 09006600)

$

$

Not available

12

Gravely 120392

WSHR-FL-STL .281 X .62 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 180042

BLT-HEX .25-20 X 1.75 GR 2
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

14

Gravely 051627

TRANSAXLE, HYDROSTATIC 90367
(Superseded to 59000100)

$

$

Not available

15

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 191163

BLT-HEX .38-16 X 4.00
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 189304

BLT-HEX .38-16 X 3.25 PL GR 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 066002

KEY WDRF .25 X 1.0 X 7 SAE 15
(Superseded to 06600200)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 090366

HUB
(Superseded to 59001800)

$

$

Not available

20

Gravely 423315

WSHR-FL-STL .813 X 1.370 X .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 065283

NUT-HEX SL .75-20
(Superseded to 06528300)

$

$

Not available

22

Gravely 120123

PIN COTR. 12 X 1.25 PL
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0
