590-542-195 - MTD Pro Grass Catcher Blower Parts Diagram

Pro Grass Catcher

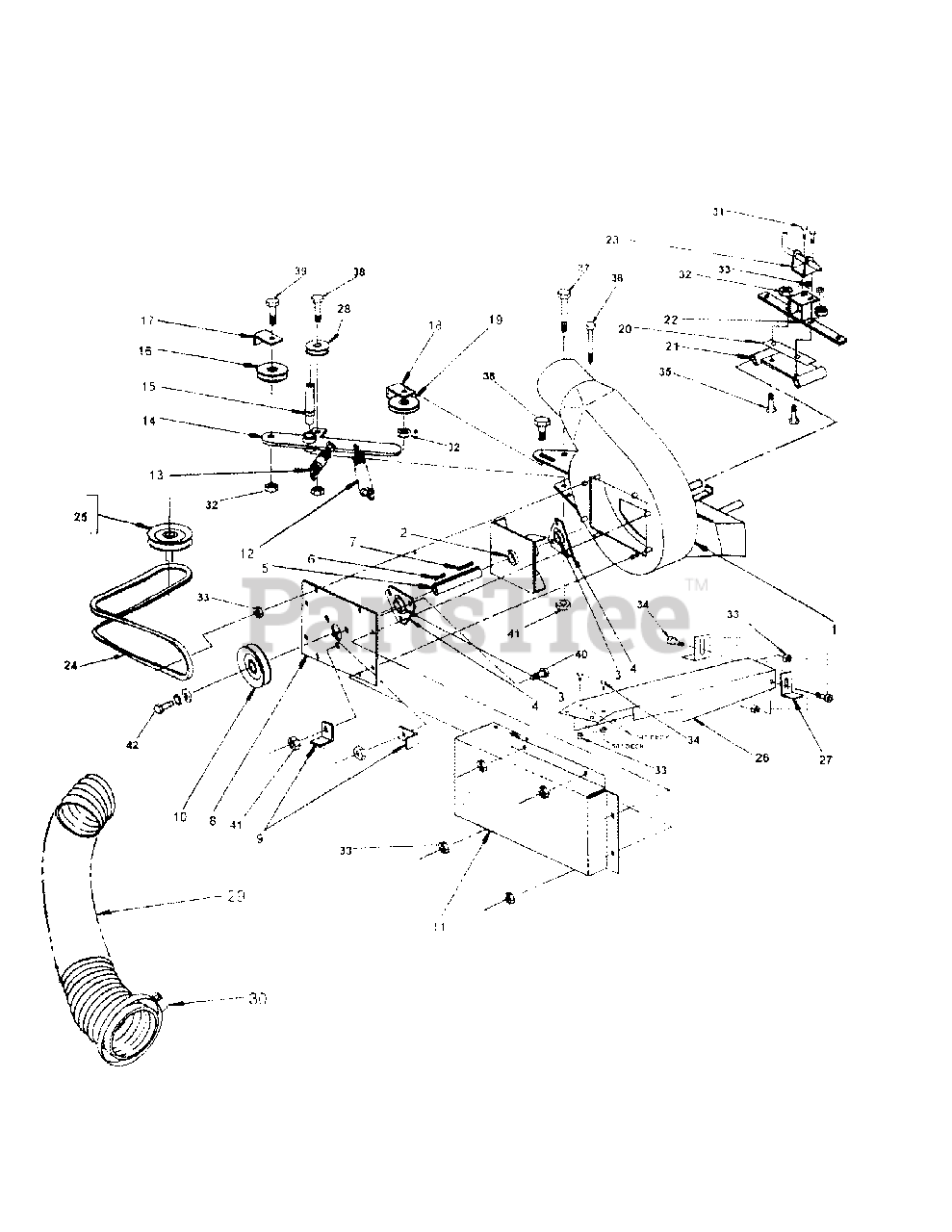

Blower Parts Diagram

  • Title

1

MTD TS-1976

Blower housing

Note: NLA

$

$

Not available

2

MTD TS-2235

Fan

Note: NLA

$

$

Not available

3

MTD TS-3293P

Bearing

$

$

Not available

4

MTD TS-4294P

Flange - bearing (set of 2)

$

$

Not available

5

MTD TS-5145

Fan shaft

Note: NLA

$

$

Not available

6

MTD 914-0114

1/4" x 3/4" key-way

$4.49

$

Usually ships in 3-6 days

0

7

MTD GW-9326

1/4" x 1 1/4" key-way

$

$

Not available

8

MTD TS-8904

Back canister cover

$

$

Not available

9

MTD TS-9832

Fan pulley belt bracket

Note: NLA

$

$

Not available

10

MTD TS-10991

Fan drive pulley

$

$

Not available

11

MTD TS-11432

Blower Belt cover

Note: NLA

$

$

Not available

12

MTD TS-12006

7/8 x 6 Spring

Note: NLA

$

$

Not available

13

MTD TS-13318

13/16 x 3-1/8 Spring

Note: NLA

$

$

Not available

14

MTD TS-14667

Idler arm

Note: NLA

$

$

Not available

15

MTD TS-15432

Idler arm pivot

Note: NLA

$

$

Not available

16

MTD TS-16888

Flat Idler pulley

$

$

Not available

17

MTD TS-17103

Lower pulley bracket

$

$

Not available

18

MTD TS-18104

Upper pulley bracket

$

$

Not available

19

MTD TS-19188

V-Idler pulley

$

$

Not available

20

MTD TS-20333

Upper mounting bracket spacer

Note: NLA

$

$

Not available

21

MTD TS-21180

Lower mounting bracket

Note: NLA

$

$

Not available

22

MTD TS-22332

Upper mounting bracket

$

$

Not available

23

MTD TS-23490

Spring Latch

Note: NLA

$

$

Not available

24

MTD TS-24A91

91"

$

$

Not available

25

MTD TS-25455

Drive pulley

$

$

Not available

26

MTD TS-26835

Belt Guard

Note: NLA

$

$

Not available

27

MTD TS-27912

Belt Guard Leg

Note: NLA

$

$

Not available

28

MTD TS-28725

2.5" V-Idler Pulley

$

$

Not available

29

MTD TS-30043

43" Urethane Hose

$

$

Not available

30

MTD TS-30407

Hose Clamp

$

$

Not available

31

1/4" - 20x3/4" Hex head

Note: purchase locally

$

$

Not available

32

3/8" - 16 serrated flange nut

Note: purchase locally

$

$

Not available

33

1/4" - 20 serrated flange nut

Note: purchase locally

$

$

Not available

34

1/4" - 20 x 1/2" hex head

Note: purchase locally

$

$

Not available

35

3/8" - 16 x 1" Carriage bolt

Note: purchase locally

$

$

Not available

36

1/4" - 20 x 4 1/2" hex head

Note: purchase locally

$

$

Not available

37

3/8" - 16 x 4 1/4" hex head

Note: purchase locally

$

$

Not available

38

3/8" - 16 x 1 1/2" Hex head

Note: purchase locally

$

$

Not available

39

3/8" - 16 x 1 3/4" hex head

Note: purchase locally

$

$

Not available

40

5/16" - 18 x 3/4" hex head

Note: purchase locally

$

$

Not available

41

5/16" - 18 serrated flange nut

Note: purchase locally

$

$

Not available

42

5/16" - 24 x 1" Hex head

Note: purchase locally

$

$

Not available
