590-536-195 - MTD Pro Pruner Attachment Pruner Attachment Parts Diagram

Pro Pruner Attachment

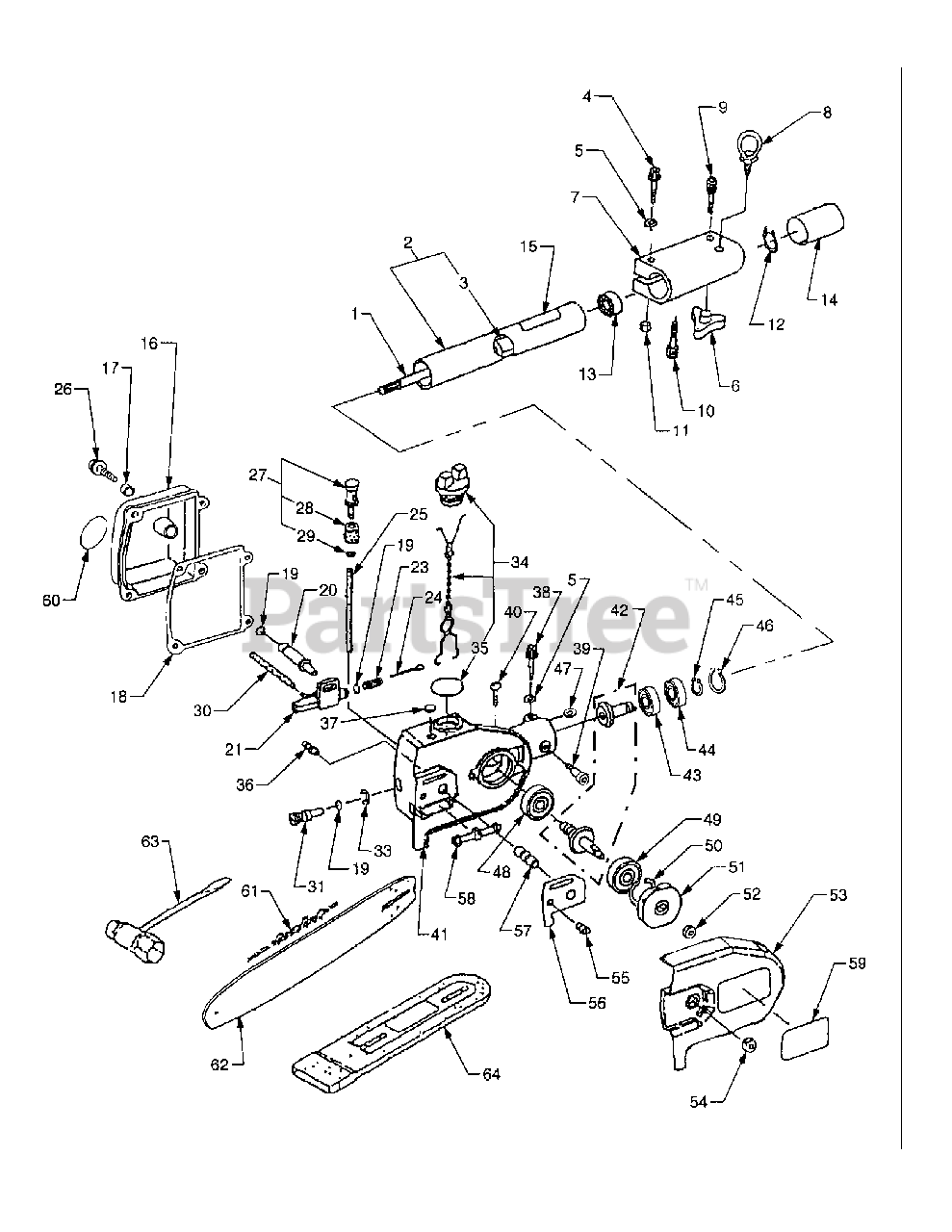

Pruner Attachment Parts Diagram

  • Title

1

MTD IM-720113630

Shaft, Drive

$

$

Not available

2

MTD IM-720124680

Pipe Complete

$

$

Not available

3

MTD IM-720133360

Metal

$

$

Not available

4

MTD IM-010700525

Bolt

$

$

Not available

5

MTD IM-027100005

Washer, Spring

$

$

Not available

6

MTD IM-720973756

Nut, Knob

$

$

Not available

7

MTD IM-720383180

Case, Joint

$

$

Not available

8

MTD IM-720973757

Pin, Lock

$

$

Not available

9

MTD IM-010100635

Bolt

$

$

Not available

10

MTD IM-010700510

Bolt

$

$

Not available

11

MTD IM-020100005

Nut

$

$

Not available

12

MTD IM-036100010

Ring, Snap

$

$

Not available

13

MTD IM-040126900

Bearing, Ball

$

$

Not available

14

MTD IM-720723330

Collar

$

$

Not available

15

MTD IM-720953090

Caution Plate

$

$

Not available

16

MTD IM-720343950

Cover, Oil Tank

$

$

Not available

17

MTD IM-720723340

Collar

$

$

Not available

18

MTD IM-720313070

Gasket

$13.99

$

Usually ships in 3-6 days

0

19

MTD IM-052100050

O-Ring

$

$

Not available

20

MTD IM-720973758

Bolt

$

$

Not available

21

MTD IM-140103010

Pump, Lube Oil
(Superseded to IM-140103011)

$

$

Not available

23

MTD IM-720423160

Spring

$

$

Not available

24

MTD IM-728250010

Piston, Oil Pump

$

$

Not available

25

MTD IM-068209174

Hose

$

$

Not available

26

MTD IM-015150512

Screw

$

$

Not available

27

MTD IM-140503010

Filter Ass'y., Oil

$

$

Not available

28

MTD IM-140513010

Filter, Oil
(Superseded to IM-140513011)

$4.49

$

Usually ships in 3-6 days

0

29

MTD IM-026100005

Washer

Note: NLA

$

$

Not available

30

MTD IM-068209182

Hose

$

$

Not available

31

MTD IM-728260010

Adjuster, Oil Pump

$

$

Not available

33

MTD IM-036800006

Ring, Snap

$

$

Not available

34

MTD IM-198433021

Cap, Oil Filler

$

$

Not available

35

MTD IM-052100150

O-Ring

$

$

Not available

36

MTD IM-198483120

Connector

$

$

Not available

37

MTD IM-720973759

Cover

$

$

Not available

38

MTD IM-010700522

Bolt

$

$

Not available

39

MTD IM-010700510

Bolt

$

$

Not available

40

MTD IM-015100606

Screw

$

$

Not available

41

MTD IM-720263740

Case, Gear

$

$

Not available

42

MTD IM-720273890

Gear Assembly

$

$

Not available

43

MTD IM-720973159

Bearing, Ball

$

$

Not available

44

MTD IM-720973696

Bearing, Ball

$

$

Not available

45

MTD IM-036100009

Ring, Snap

$

$

Not available

46

MTD IM-036500024

Ring, Snap

$

$

Not available

47

MTD IM-720973760

Washer

$

$

Not available

48

MTD IM-720973761

Bearing, Ball

$

$

Not available

49

MTD IM-720973762

Bearing, Ball

$

$

Not available

50

MTD IM-036500028

Ring, Snap

$

$

Not available

51

MTD IM-728270010

Sprocket

$

$

Not available

52

MTD IM-023100006

Nut

$

$

Not available

53

MTD IM-720343960

Cover

$

$

Not available

54

MTD IM-023100008

Nut

$

$

Not available

55

MTD IM-720973763

Pin, Dowel

$

$

Not available

56

MTD IM-720643150

Plate, Guide

$

$

Not available

57

MTD IM-720783020

Bolt

$

$

Not available

58

MTD IM-720783030

Bolt

$

$

Not available

59

MTD IM-720960020

Name Plate

$

$

Not available

60

MTD IM-720953100

Caution Plate

$

$

Not available

61

MTD IM-198263010

Chain, 9.52mm

$198.99

$

Usually ships in 3-6 days

0

62

MTD IM-728280010

Bar, Chain, 250mm

$

$

Not available

63

MTD IM-720983660

Box, Spanner

$

$

Not available

64

MTD IM-720913140

Cover, Chain

$

$

Not available
