590-505-195 - MTD Pro Grass Catcher Grass Catcher Parts Diagram

Pro Grass Catcher

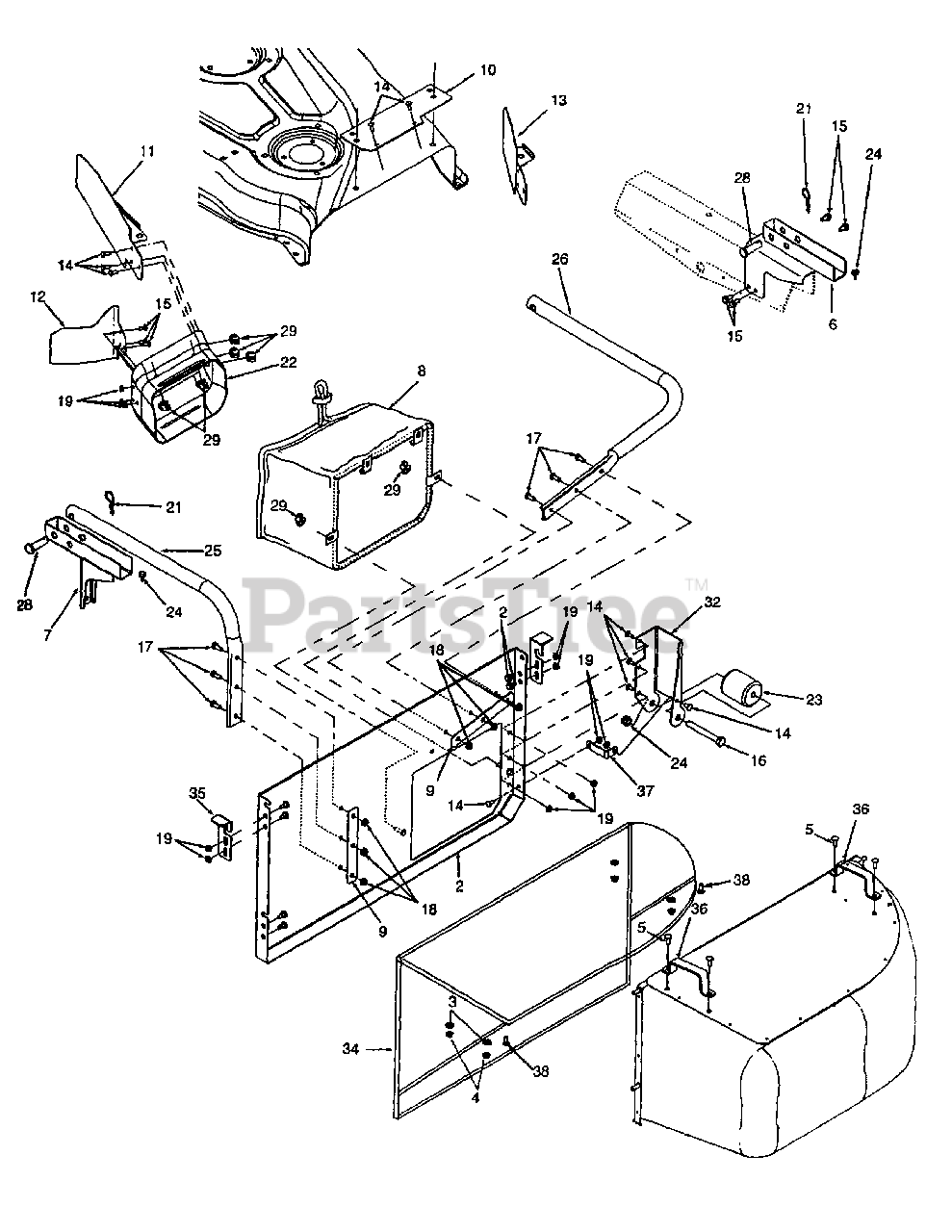

Grass Catcher Parts Diagram

  • Title

1

MTD 712-0161

Lock Nut, Nylon Insert, #10-24

$4.49

$

In Stock, Qty 20+

0

2

MTD 00008745

Round Head Screw, 10-24 x 1/2

$

$

Not available

3

MTD 00011075

Flat Washer, 5/16

$4.49

$

Usually ships in 3-6 days

0

4

MTD 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

5

MTD 00013116

HHCS, 5/16-18, 1-1/4

$5.99

$

In Stock, only 1 left!

0

6

MTD 01001101

Front Support Bracket Assembly

$

$

Not available

7

MTD 01001106

Rear Support Bracket Assembly

Note: NLA

$

$

Not available

8

MTD 01001142

Grass Bag

$

$

Not available

9

MTD 01003620

Plate Support Tube Assembly

Note: NLA

$

$

Not available

10

MTD 01003621

Chute Mounting Bracket

$

$

Not available

11

MTD 01003622

Baffle, Front Deck 48"

$

$

Not available

12

MTD 01003623

Baffle, Rear Deck 48

$

$

Not available

13

MTD 01003624

Baffle, Front Deck 54"

Note: NLA

$

$

Not available

14

MTD 01001160

Bolt, Carriage, 1/4-20 x 5/8

Note: NLA

$

$

Not available

15

MTD 710-0604A

Screw: Tapping: 5/16-18 x 5/8

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0786

HHCS, 1/2-13, 4.00

$16.99

$

Usually ships in 3-6 days

0

17

MTD 01001163

HHCS, 5/16-18,.75

Note: NLA

$

$

Not available

18

MTD 01001164

Flange Nut, 5/16-18

Note: NLA

$

$

Not available

19

MTD 01001165

Hex Flange Lock Nut, 1/4-20

Note: NLA

$

$

Not available

20

MTD 01001166

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, only 2 left!

0

21

MTD 710-0604A

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

22

MTD 01001168

Grass Catcher Discharge Chute

Note: NLA

$

$

Not available

23

MTD 01001169

Grass Catcher Roller

$24.99

$

In Stock, only 3 left!

0

24

MTD 935-0199A

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

25

MTD 01003626

Grass Catcher Support Tube

Note: NLA

$

$

Not available

26

MTD 01003625

Grass Catcher Support Tube

Note: NLA

$

$

Not available

27

MTD 01003221

Grass Bag Collector

$

$

Not available

28

MTD 01003654

Clevis Pin, 3/8 x 1.687

Note: NLA

$

$

Not available

29

MTD 01003655

Wing Nut w/Belle Washer 1/4-20

Note: NLA

$

$

Not available

30

MTD 01003665

Label, Chute

$

$

Not available

31

MTD 01003971

Catcher, Panel Assembly

Note: NLA

$

$

Not available

32

MTD 01003913

Grass Catcher Mount Roller Bracket

Note: NLA

$

$

Currently unavailable

33

MTD 01003985

Bag Release Latch Left Hand

$

$

Not available

34

MTD 01003986

Grass Bag Support Frame Assembly

$

$

Not available

35

MTD 01004001

Bag Release Latch Right Hand

$

$

Not available

36

MTD 01004013-0637

Grass Bag Handle

$

$

Not available

37

MTD 01004016

Grass Catcher Support Roller

$

$

Not available

38

MTD 710-0751

Screw 1/4-20 x 5/8

$3.99

$

In Stock, Qty 20+

0
