590-500-195 - MTD Standing Sulky Attachment (2006) Sulky Assembly Parts Diagram

Standing Sulky Attachment

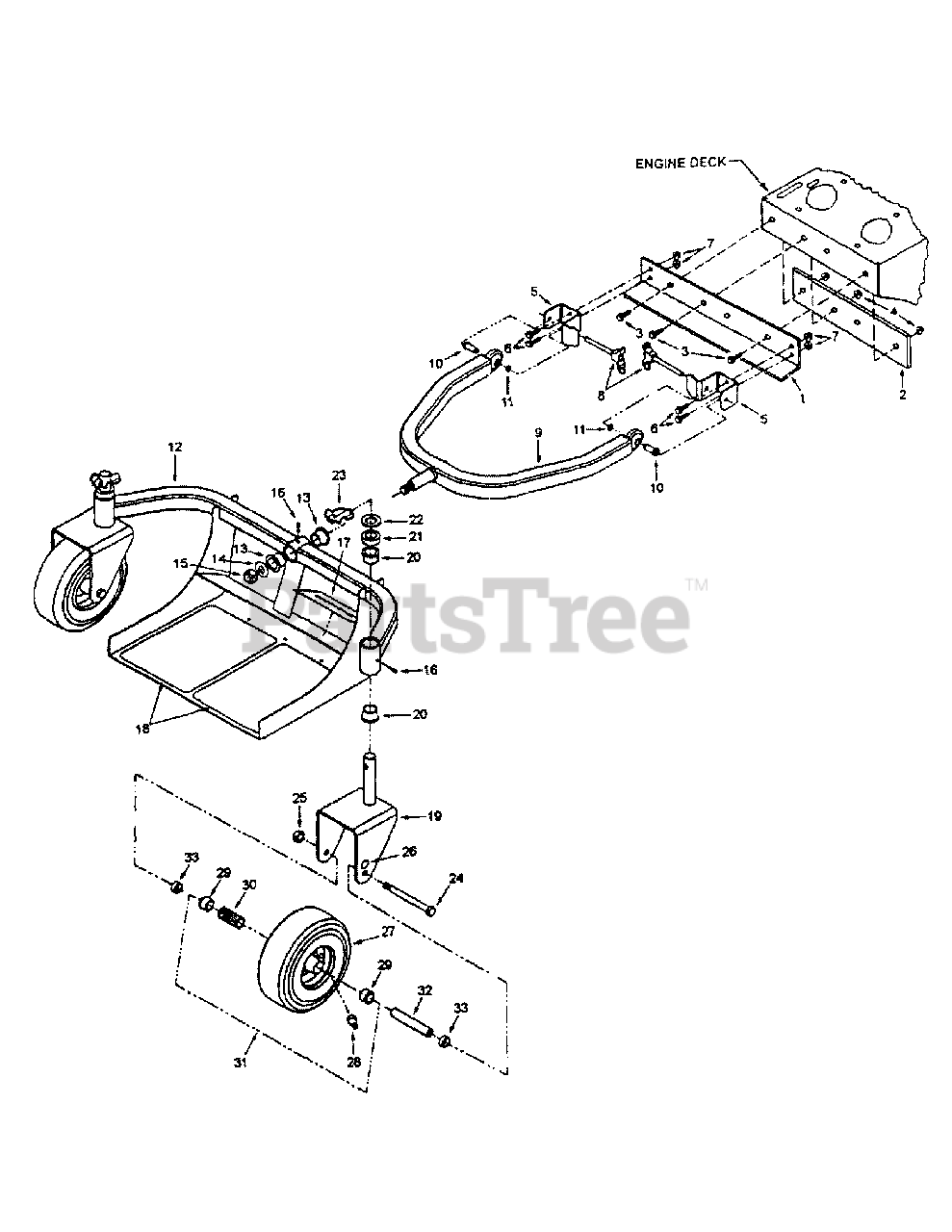

Sulky Assembly Parts Diagram

  • Title

1

MTD 01002491

Adapter Bar

$

$

Not available

2

MTD 01002505

Support Bar

$

$

Not available

3

MTD 00006144

Cap Screw, 3/8-16 x 1 Hex Hd.

$6.99

$

Usually ships in 3-6 days

0

4

MTD 00034224

Hex Nut, 3/8-16 Stover

$

$

Not available

5

MTD 00023674

Mounting Bracket

$

$

Not available

7

MTD 00022560

Hex Nut, 3/8-16 Flanged Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

MTD 01004402

Pin, Quick Release, 3/8

$

$

Not available

9

MTD 01003059

Tubing, A-Frame

Note: NLA

$

$

Not available

10

MTD 00023779

Spacer, Shoulder, .378 I.D. x.50 O.D.

Note: NLA

$

$

Not available

11

MTD 00023788

Retainer Ring

$

$

Not available

12

MTD 01003058

Footstand, Sulky

Note: NLA

$

$

Not available

13

MTD 00023793

Flange Bearing, Metal

$15.99

$

In Stock, only 3 left!

0

14

MTD 00023796

Flat Washer, .750 x 1.50 x .120 Thk.

$6.99

$

Usually ships in 3-6 days

0

15

MTD 00023797

Hex Nut, 3/4-16 Center Lock
(Superseded to 712-1329)

$12.99

$

Usually ships in 3-6 days

0

16

MTD 00023806

Grease Fitting
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

17

MTD 00023809

Safety Decal

$

$

Not available

18

MTD 00023817

Foot Pad, Abrasive

$

$

Not available

19

MTD 01006145

Caster Fork

$126.99

$

Usually ships in 3-6 days

0

20

MTD 931-0374

Flange Bearing, Plastic

$7.49

$

In Stock, only 3 left!

0

21

MTD 00023821

Spacer, 1.015 I.D. x 1.62 O.D. x.50 Lg.

$24.99

$

Usually ships in 3-6 days

0

22

MTD 00023822

Washer
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

23

MTD 00023778

Pin, Klik

$

$

Not available

24

MTD 710-0506

Cap Screw, 1/2-20 x 5.5 Hex Hd.

$10.99

$

In Stock, only 2 left!

0

25

MTD 00023287

Hex Nut, 1/2-20 Center Lock
(Superseded to 712-0239)

$

$

Not available

26

MTD 01000711

Decal, Inflation Info

Note: NLA

$

$

Not available

27

MTD 02000192

Tire, 9.00 x 3.50 x 4 Smooth

$136.99

$

Usually ships in 3-6 days

0

28

MTD 00023661

Air Valve, Tubeless

Note: NLA

$

$

Currently unavailable

29

MTD 741-3060

Flange Bearing, Graf Oil

$

$

Not available

30

MTD 00023673

Roller Bearing

$35.99

$

Usually ships in 3-6 days

0

31

MTD 00023635

Wheel Assembly, Caster

Note: NLA

$

$

Currently unavailable

32

MTD 01000749

Spacer, Wheel

$40.99

$

In Stock, only 1 left!

0

33

MTD 01003123

Spacer, .812 ID x .268 LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0
