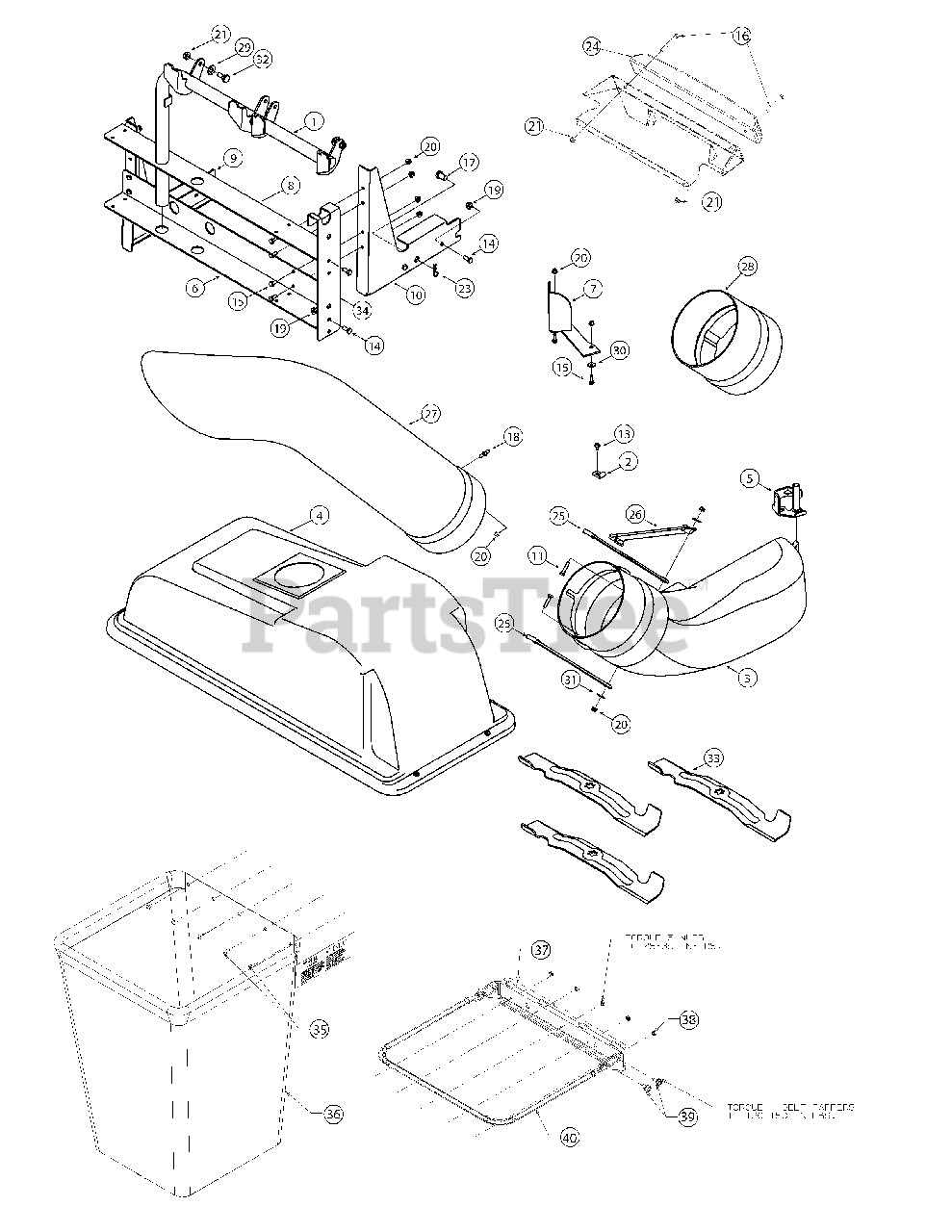

590-303-000 - MTD 50" Double Bagger Assembly (2008) General Assembly 303 Parts Diagram

50" Double Bagger Assembly

General Assembly 303 Parts Diagram

  • Title
1

MTD 16592

Support Tube Assembly
(Superseded to 16592-0637)

Variations

MTD 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

2

MTD 16606

Retainer Hook Bracket
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

3

MTD 631-0221A

Chute Elbow

$260.99

$

In Stock, only 2 left!

0

4

MTD 664-04017

Grasscatcher Cover Assembly

$

$

Not available

5

MTD 683-0617A

Chute Stop Bracket
(Superseded to 683-0617A-0637)

Variations

MTD 683-0617A-0637

Chute Deflector Stop, Black - POWDER BLACK (0637)

$64.99

$

In Stock, only 3 left!

0

$64.99

$

In Stock, only 3 left!

0

6

MTD 703-05195

Hanger Bracket - Bottom
(Superseded to 703-05195-0637)

Variations

MTD 703-05195-0637

BRACKET-HANGER BLK - POWDER BLACK (0637)

$110.99

$

Usually ships in 3-6 days

0

$110.99

$

Usually ships in 3-6 days

0

7

MTD 703-05783

Deck Deflector
(Superseded to 703-05783-0637)

Variations

MTD 703-05783-0637

Baffle, 50" - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

8

MTD 703-05833

Hanger Bracket - Top (w/ cutout)

Variations

MTD 703-05833-0637

BRACKET-TOP HANGER - POWDER BLACK (0637)

$120.99

$

Usually ships in 3-6 days

0

$104.99

$

Usually ships in 3-6 days

0

9

MTD 783-05856A

Catcher Mounting Bracket LH

$

$

Currently unavailable

10

MTD 703-05858A

Catcher Mounting Bracket RH
(Superseded to 703-05858A-0637)

Variations

MTD 703-05858A-0637

Catcher Support Bracket RH - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 710-0106

Hex Bolt 1/4-20 x 1.25 Gr5

$3.99

$

In Stock, Qty 12

0

13

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3008

Hex Bolt 5/16-18 x .75 Gr5

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3015

Hex Bolt 1/4-20 x 0.75 Gr5

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-3022

Hex Bolt 3/8-16 x 2.75 Gr5

$4.99

$

In Stock, Qty 7

0

17

MTD 711-0332

Clevis Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

18

MTD 711-04069

Grasscatcher Pin
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

19

MTD 712-04063

Flange Lock Nut, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-04064

Flange Lock Nut 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-04065

Flange Lock Nut 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

23

MTD 714-04023

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

24

MTD 719-04271A

Weight Bar

$252.99

$

Usually ships in 3-6 days

0

25

MTD 723-04009A

Chute Strap

$11.99

$

Usually ships in 3-6 days

0

26

MTD 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

27

MTD 731-0926B

Chute Tube

$142.99

$

In Stock, only 1 left!

0

28

MTD 731-2299A

Chute Extension

$73.99

$

Usually ships in 3-6 days

0

29

MTD 736-0253

Bell Washer

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

31

MTD 736-3092

Flat Washer

$3.99

$

In Stock, Qty 6

0

32

MTD 738-0380

Shoulder Screw 3/8-16

$7.99

$

In Stock, only 1 left!

0

33

MTD 742-04056C

Blade
(Superseded to 942-04056C)

Variations

MTD 742-04056C-0637

Mower Blade, 17.90 Lg - POWDER BLACK (0637)

$35.99

$

In Stock, only 3 left!

0

$35.99

$

In Stock, only 3 left!

0

34

MTD 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

MTD 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

35

MTD 710-0473

Scr:Mach:#10-24:0.500

$4.49

$

In Stock, only 2 left!

0

36

MTD 764-0221

Grass Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

37

MTD 16591A

Bag Frame Hanger Bracket
(Superseded to 16591A-0637)

Variations

MTD 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

38

MTD 712-0272

Nut:Hex 10-24

$3.99

$

Usually ships in 3-6 days

0

39

MTD 710-0604A

Scr:TT:5/16-18:0.625

$4.49

$

In Stock, Qty 20+

0

40

MTD 749-0701A

Grass Bag Frame Tube
(Superseded to 749-0701A-0637)

Variations

MTD 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0
