590-302 - MTD 42" Double Bagger Assembly (2006) General Assembly Parts Diagram

42" Double Bagger Assembly

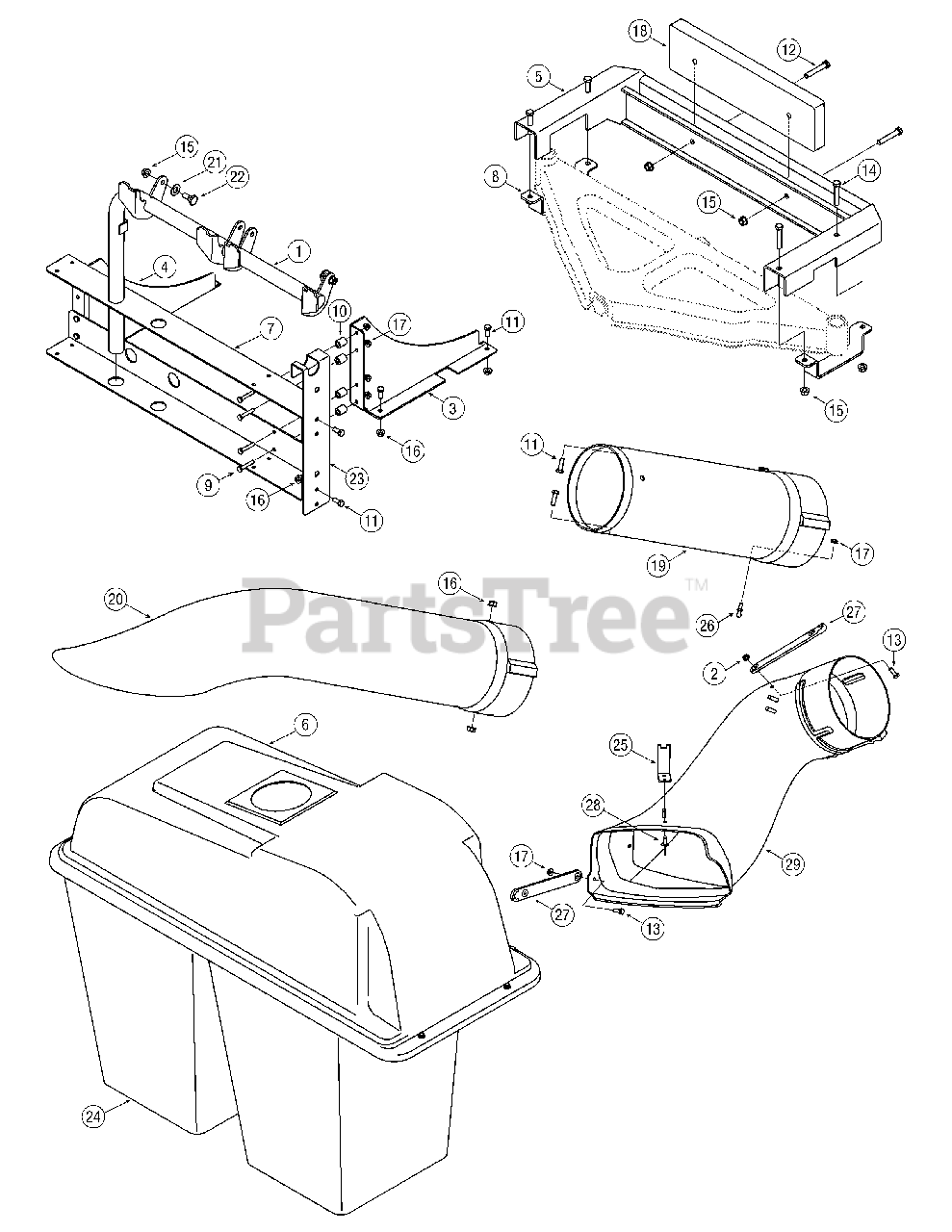

General Assembly Parts Diagram

  • Title
1

MTD 16592

Support Tube Assembly
(Superseded to 16592-0637)

Variations

MTD 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

2

MTD 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

3

MTD 603-04198

Mounting Assembly RH
(Superseded to 603-04198-0637)

Variations

MTD 603-04198-0637

Catcher Mounting Assembly RH - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 603-04199

Mounting Assembly LH
(Superseded to 603-04199-0637)

Variations

MTD 603-04199-0637

SUPPORT-LH MTG - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

5

MTD 603-04201

Weight Bar Bracket

Variations

MTD 603-04201-0637

BRACKET ASM-WEIGHT - POWDER BLACK (0637)

$371.99

$

Usually ships in 3-6 days

0

$323.99

$

Usually ships in 3-6 days

0

6

MTD 664-04017

Grasscatcher Cover Assembly

$

$

Not available

7

MTD 703-05195

Hanger Bracket
(Superseded to 703-05195-0637)

Variations

MTD 703-05195-0637

BRACKET-HANGER BLK - POWDER BLACK (0637)

$110.99

$

Usually ships in 3-6 days

0

$110.99

$

Usually ships in 3-6 days

0

8

MTD 703-05494

Clamp: Weight Bar Bracket

Variations

MTD 703-05494-0637

CLAMP-WEIGHT BRKT - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

9

MTD 710-0606

Hex Bolt 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

10

MTD 750-1064

Spacer .325 x .625 x .770 LG
(Superseded to 950-1064)

$

$

Not available

11

MTD 710-0376

Hex Bolt 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-3011

Hex Bolt 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

13

MTD 710-0106

Hex Bolt 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

14

MTD 710-3144

Hex Bolt 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0431

Top Lock Flange Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

MTD 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-3027

Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

18

MTD 719-04069

Weight Bar
(Superseded to 02002426)

$168.99

$

Usually ships in 3-6 days

0

19

MTD 731-3334A

Chute Extension

$

$

Not available

20

MTD 731-3338

Chute Tube

$

$

Not available

21

MTD 736-0253

Bell Washer

$3.99

$

In Stock, Qty 20+

0

22

MTD 738-0380

Shoulder Screw

$7.99

$

In Stock, only 1 left!

0

23

MTD 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

MTD 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

24

Grass Bag Assembly

Note: furnish components.

$

$

Not available

24

MTD 16591A

Bag Frame Hanger Bracket
(Superseded to 16591A-0637)

Note: Not shown

Variations

MTD 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

24

MTD 710-0473

Screw, #10-24 x .5

Note: Not shown

$4.49

$

In Stock, only 2 left!

0

24

MTD 712-0272

Hex Sems Nut, 10-24

Note: Not shown

$3.99

$

In Stock, only 1 left!

0

24

MTD 764-0221

Bag
(Superseded to 964-0221)

Note: Not shown

$73.99

$

In Stock, Qty 20+

0

24

MTD 749-0701A

Frame Tube for Bag
(Superseded to 749-0701A-0637)

Note: Not shown

Variations

MTD 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

24

MTD 710-0604

Self Tapping Screw, 5/16-18 x .625
(Superseded to 710-0604A)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

25

MTD 703-05564

Deflector Support Bracket

Variations

MTD 703-05564-0637

BRACKET-DEFLECTOR BLK - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

26

MTD 711-04069

Grasscatcher Pin
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

27

MTD 723-04008A

Chute Strap

$9.99

$

In Stock, Qty 20+

0

28

MTD 728-0180

Rivet .187 Dia. #66
(Superseded to 928-0180)

$

$

Not available

29

MTD 731-04777B

Chute Elbow
(Superseded to 731-04777C)

$163.99

$

Usually ships in 3-6 days

0
