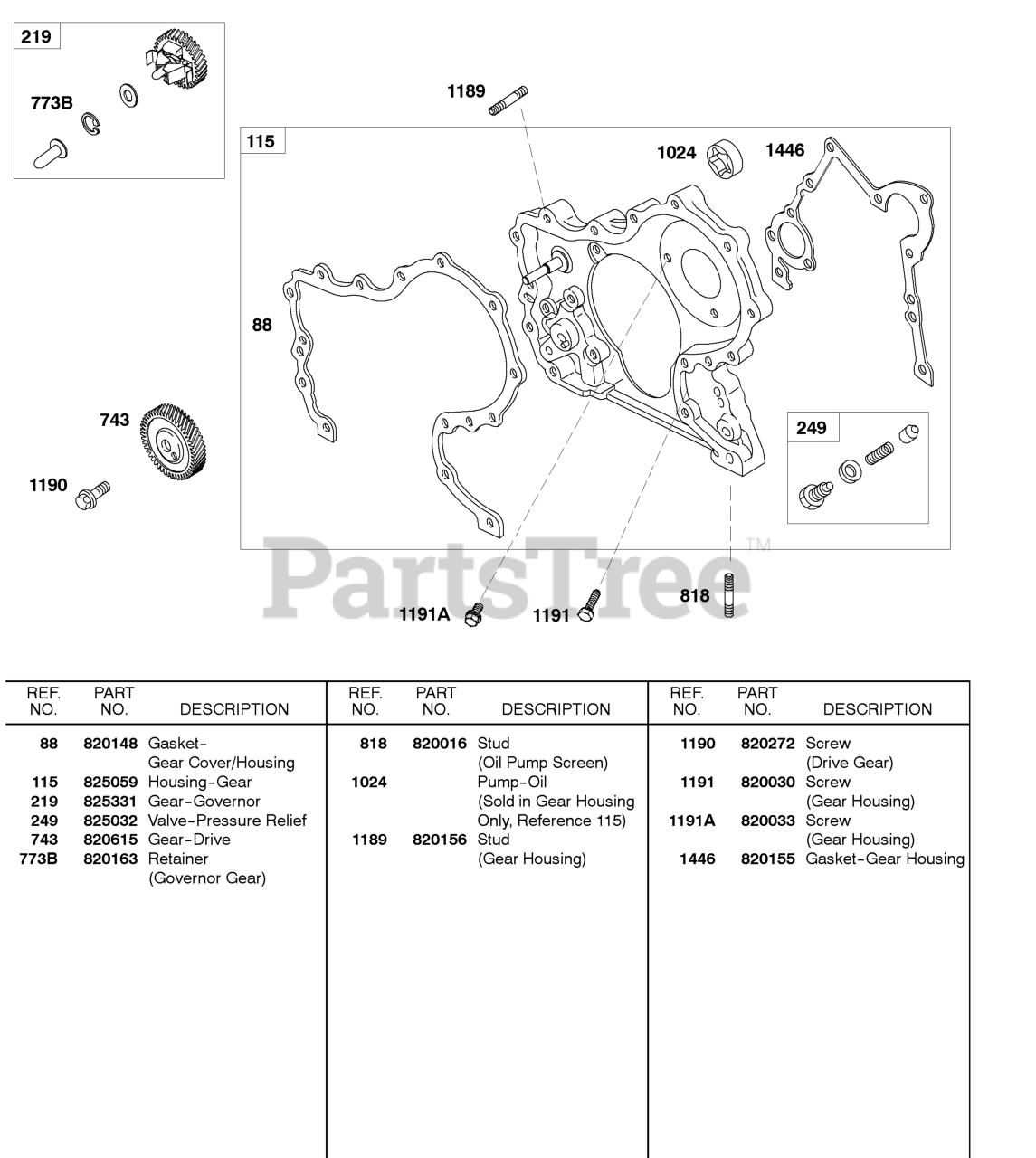

58E447-0411-E2 - Briggs & Stratton Horizontal Engine Gear Housing Parts Diagram

Horizontal Engine

Gear Housing Parts Diagram

  • Title

88

Briggs & Stratton 820148

Gasket-Gear Cover/Housing

$

$

Not available

115

Briggs & Stratton 825059

Housing-Gear

$

$

Not available

219

Briggs & Stratton 825331

Gear-Governor

$148.99

$

Usually ships in 2-12 days

0

249

Briggs & Stratton 825032

Valve-Pressure Relief

$43.99

$

Usually ships in 2-12 days

0

743

Briggs & Stratton 820615

Gear-Drive

$95.99

$

Usually ships in 2-12 days

0

773B

Briggs & Stratton 820163

Retainer

Note: (Governor Gear)

$4.99

$

Usually ships in 2-12 days

0

818

Briggs & Stratton 820016

Stud

Note: (Oil Pump Screen)

$4.99

$

Usually ships in 2-12 days

0

1024

Pump-Oil

$

$

Not available

1189

Briggs & Stratton 820156

Stud

Note: (Gear Housing)

$5.49

$

Usually ships in 2-12 days

0

1190

Briggs & Stratton 820272

Screw

Note: (Drive Gear)

$3.49

$

Usually ships in 2-12 days

0

1191

Briggs & Stratton 820030

Screw

Note: (Gear Housing)

$3.49

$

Usually ships in 2-12 days

0

1191A

Briggs & Stratton 820033

Screw

Note: (Gear Housing)

$3.49

$

Usually ships in 2-12 days

0

1446

Briggs & Stratton 820155

Gasket-Gear Housing

$31.99

$

Usually ships in 2-12 days

0
