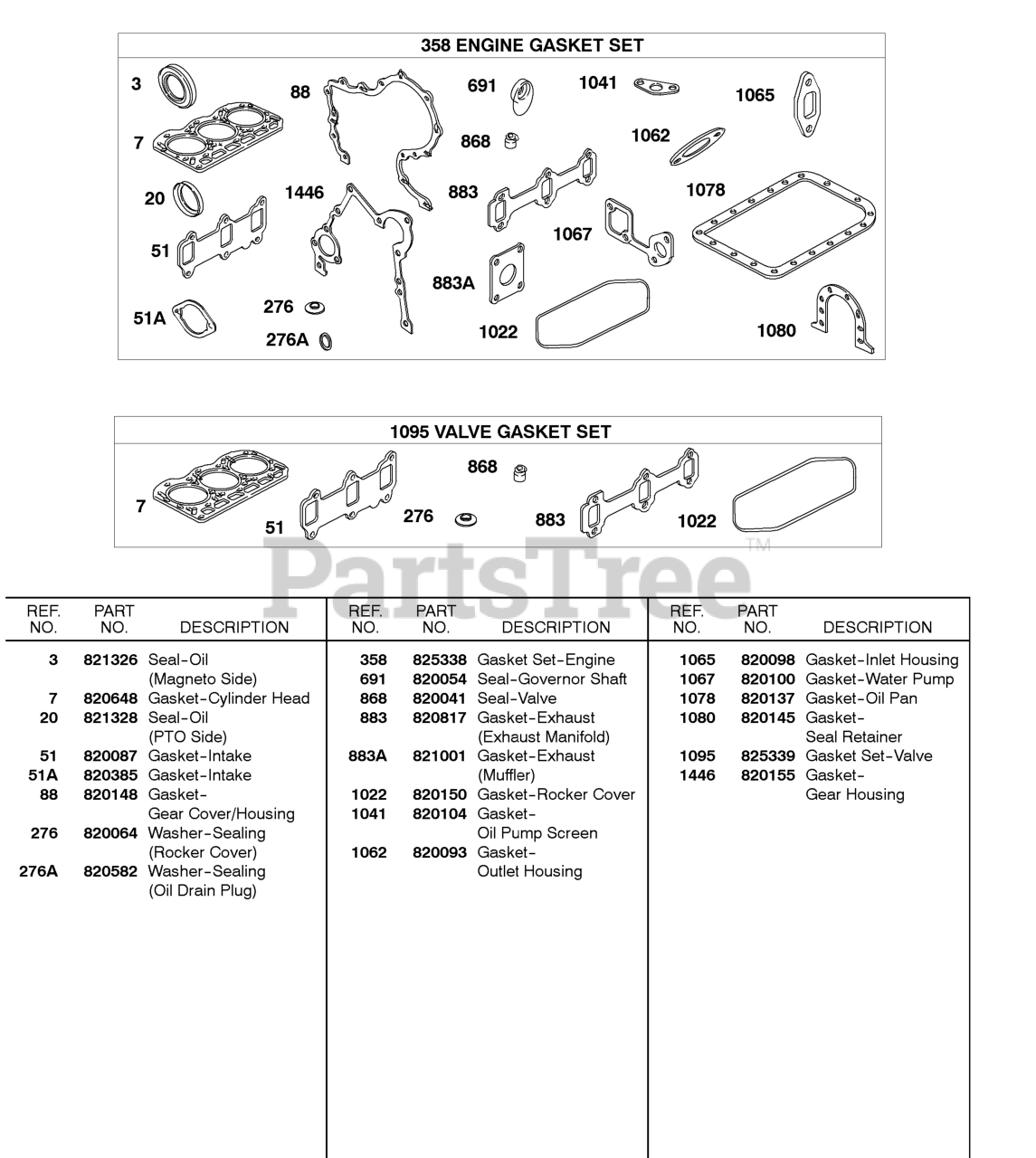

58E447-0411-E2 - Briggs & Stratton Horizontal Engine Engine and Valve Gasket Sets Parts Diagram

Horizontal Engine

Engine and Valve Gasket Sets Parts Diagram

  • Title
3

Briggs & Stratton 821326

Seal-Oil

Note: (Magneto Side)

$73.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 820648

Gasket-Cylinder Head

$136.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 821328

Seal-Oil

Note: (PTO Side)

$73.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 820087

Gasket-Intake

$

$

Not available

51A

Briggs & Stratton 820385

Gasket-Intake

$31.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 820148

Gasket-Gear Cover/Housing

$

$

Not available

276

Briggs & Stratton 820064

Washer-Sealing

Note: (Rocker Cover)

$7.99

$

In Stock, only 2 left!

0

276A

Briggs & Stratton 820582

Washer-Sealing

$7.99

$

In Stock, only 2 left!

0

358

Briggs & Stratton 825338

Gasket Set-Engine

$347.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 820054

Seal-Governor Shaft

$11.99

$

Usually ships in 2-12 days

0

868

$

$

Not available

883

Briggs & Stratton 820817

Gasket-Exhaust

Note: (Exhaust Manifold)

$37.99

$

Usually ships in 2-12 days

0

883A

Briggs & Stratton 821001

Gasket-Exhaust

Note: (Exhaust Manifold)

$37.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 820150

Gasket-Rocker Cover

$37.99

$

Usually ships in 2-12 days

0

1041

Briggs & Stratton 820104

Gasket-Oil Pump Screen

$7.99

$

Usually ships in 2-12 days

0

1062

Briggs & Stratton 820093

Gasket-Outlet Housing

$11.99

$

Usually ships in 2-12 days

0

1065

Briggs & Stratton 820098

Gasket-Inlet Housing

$6.99

$

Usually ships in 2-12 days

0

1067

Briggs & Stratton 820100

Gasket-Water Pump

$12.99

$

Usually ships in 2-12 days

0

1078

Briggs & Stratton 820137

Gasket-Oil Pan

$43.99

$

Usually ships in 2-12 days

0

1080

Briggs & Stratton 820145

Gasket-Seal Retainer

$11.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 825339

Gasket Set-Valve

$202.99

$

Usually ships in 2-12 days

0

1446

Briggs & Stratton 820155

Gasket-Gear Housing

$31.99

$

Usually ships in 2-12 days

0
