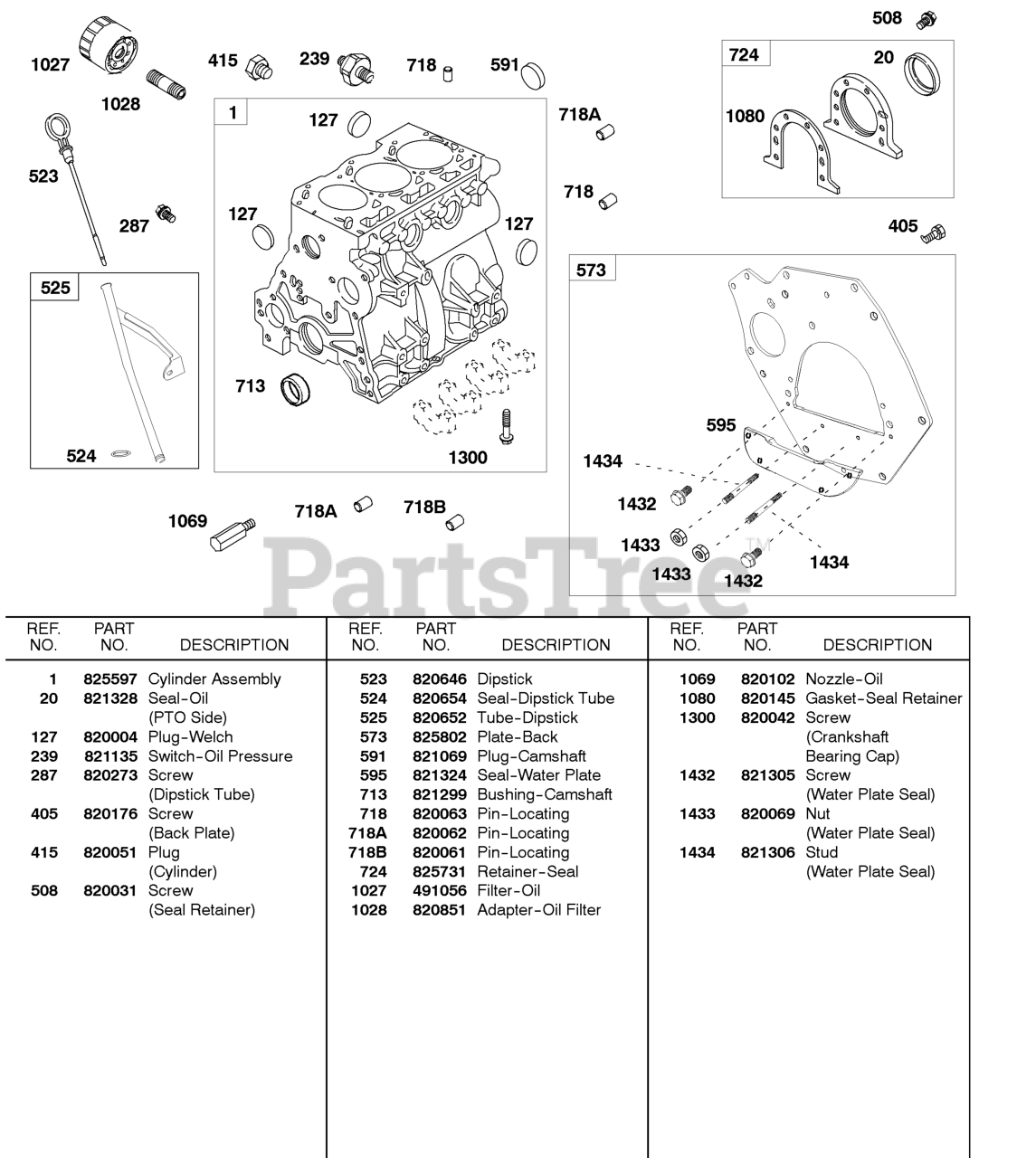

58E447-0411-E2 - Briggs & Stratton Horizontal Engine Cylinder, Back Plate Parts Diagram

Horizontal Engine

Cylinder, Back Plate Parts Diagram

  • Title

1

Briggs & Stratton 825597

Cylinder Assembly

$2656.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 821328

Seal-Oil

Note: (PTO Side)

$73.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 820004

Plug-Welch

$7.49

$

In Stock, only 2 left!

0

239

Briggs & Stratton 821135

Switch-Oil Pressure

$41.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 820273

Screw

Note: (Dipstick Tube)

$3.99

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 820176

Screw

Note: (Back Plate)

$3.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 820051

Plug

Note: (Cylinder)

$6.99

$

Usually ships in 2-12 days

0

508

Briggs & Stratton 820031

Screw

Note: (Seal Retainer)

$3.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 820646

Dipstick

$78.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 820654

Seal-Dipstick Tube

$4.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 820652

Tube-Dipstick

$95.99

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 825802

Plate-Back

$677.99

$

Usually ships in 2-12 days

0

591

Briggs & Stratton 821069

Plug-Camshaft

$67.99

$

Usually ships in 2-12 days

0

595

Briggs & Stratton 821324

Seal-Water Plate

$121.99

$

Usually ships in 2-12 days

0

713

Briggs & Stratton 821299

Bushing-Camshaft

$45.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 820063

Pin-Locating

$6.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 820062

Pin-Locating

$7.49

$

Usually ships in 2-12 days

0

718B

Briggs & Stratton 820061

Pin-Locating

$6.99

$

Usually ships in 2-12 days

0

724

Briggs & Stratton 825731

Retainer-Seal

$148.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 491056

Filter-Oil

$9.99

$

In Stock, only 2 left!

0

1028

Briggs & Stratton 820851

Adapter-Oil Filter

$106.99

$

Usually ships in 2-12 days

0

1069

Briggs & Stratton 820102

Nozzle-Oil

$11.99

$

Usually ships in 2-12 days

0

1080

Briggs & Stratton 820145

Gasket-Seal Retainer

$11.99

$

Usually ships in 2-12 days

0

1300

Briggs & Stratton 820042

Screw

Note: (Crankshaft Bearing Cap)

$3.99

$

Usually ships in 2-12 days

0

1432

Briggs & Stratton 821305

Screw

Note: (Water Plate Seal)

$4.99

$

Usually ships in 2-12 days

0

1433

Briggs & Stratton 820069

Nut

Note: (Water Plate Seal)

$3.99

$

Usually ships in 2-12 days

0

1434

Briggs & Stratton 821306

Stud

Note: (Water Plate Seal)

$5.49

$

Usually ships in 2-12 days

0
