58E447-0411-E2 - Briggs & Stratton Horizontal Engine 1.2KW Starter Motor Parts Diagram

Horizontal Engine

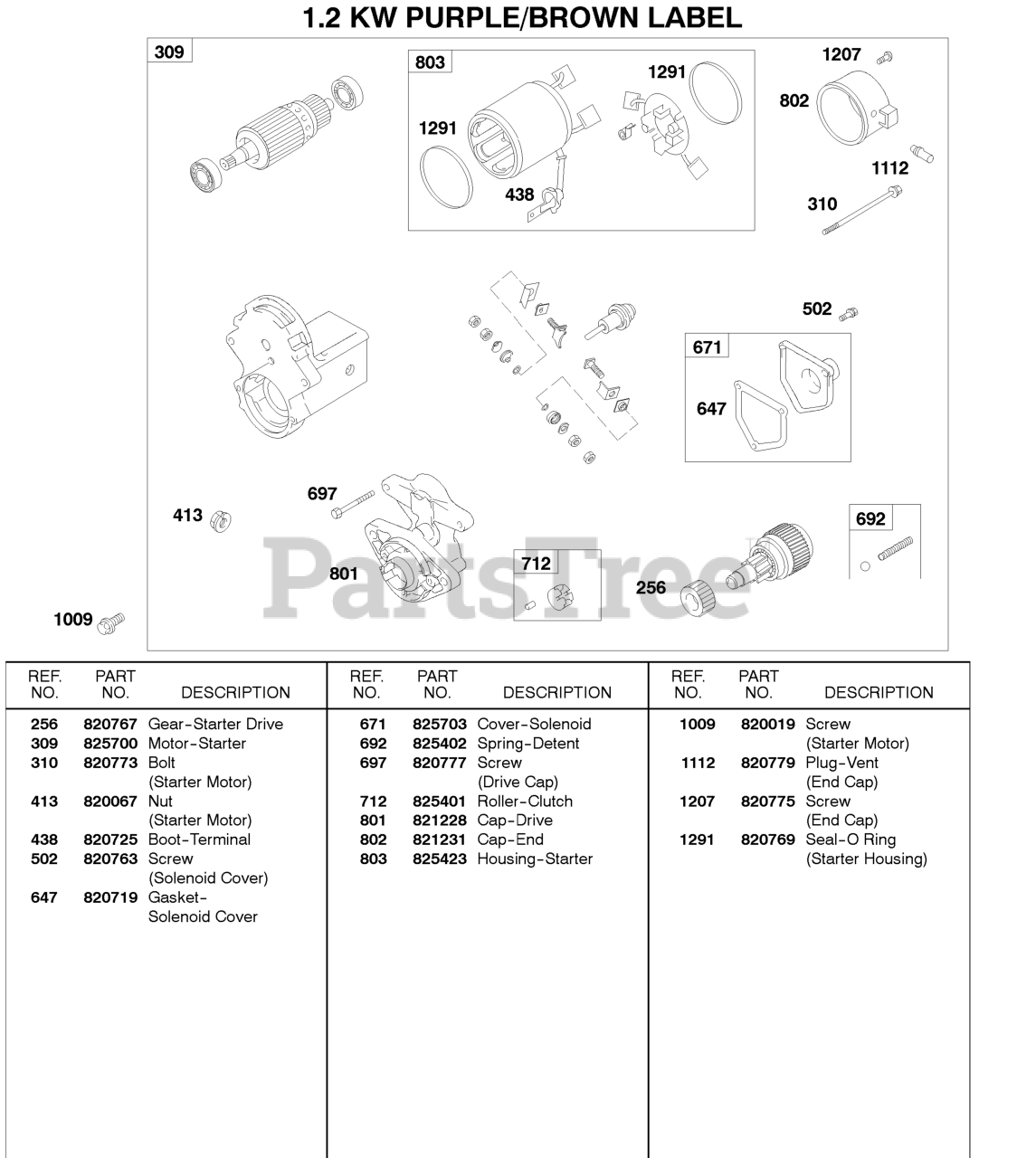

1.2KW Starter Motor Parts Diagram

  • Title

256

Briggs & Stratton 820767

Gear-Starter Drive

$50.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 825700

Motor-Starter

$463.99

$

In Stock, only 1 left!

0

310

Briggs & Stratton 820773

Screw

Note: (Starter Motor)

$8.49

$

Usually ships in 2-12 days

0

413

Briggs & Stratton 820067

Nut

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

438

Briggs & Stratton 820725

Boot-Terminal

$7.49

$

Usually ships in 2-12 days

0

502

Briggs & Stratton 820763

Screw

Note: (Solenoid Cover)

$4.99

$

Usually ships in 2-12 days

0

647

Briggs & Stratton 820719

Gasket-Solenoid Cover

$11.99

$

Usually ships in 2-12 days

0

671

Briggs & Stratton 825703

Cover-Solenoid

$40.99

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 825402

Spring-Detent

$8.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 820777

Screw

Note: (Drive Cap)

$5.49

$

Usually ships in 2-12 days

0

712

Briggs & Stratton 825401

Roller-Clutch

$11.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 821228

Cap-Drive

$139.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 821231

Cap-End
(Superseded to 825700)

$463.99

$

In Stock, only 1 left!

0

803

Briggs & Stratton 825423

Housing-Starter
(Superseded to 825700)

$463.99

$

In Stock, only 1 left!

0

1009

Briggs & Stratton 820019

Screw

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

1112

Briggs & Stratton 820779

Plug-Vent

Note: (End Cap)

$16.99

$

Usually ships in 2-12 days

0

1207

Briggs & Stratton 820775

Screw

Note: (End Cap)

$7.49

$

Usually ships in 2-12 days

0

1291

Briggs & Stratton 820769

Seal-O Ring

Note: (Starter Housing)

$17.99

$

Usually ships in 2-12 days

0
