58A447-0210-E2 - Briggs & Stratton Horizontal Engine Water Pump, Radiator Fan, Fan Belt Parts Diagram

Horizontal Engine

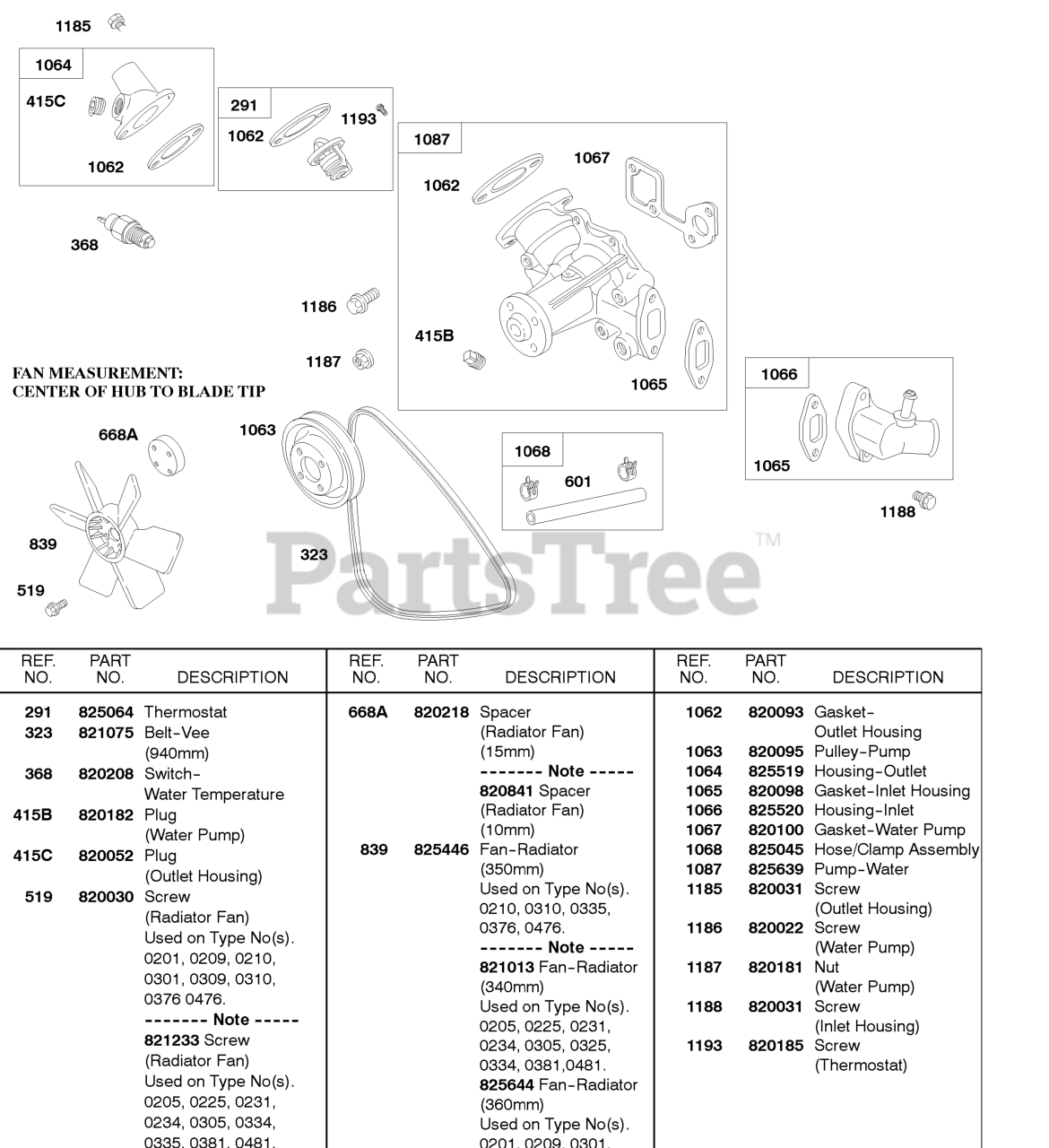

Water Pump, Radiator Fan, Fan Belt Parts Diagram

  • Title

291

Briggs & Stratton 825064

Thermostat

$

$

Not available

323

Briggs & Stratton 821075

Belt-Vee

Note: (940mm)

$

$

Not available

368

Briggs & Stratton 820208

Switch-Water Temperature

$50.99

$

In Stock, only 2 left!

0

415B

Briggs & Stratton 820182

Plug

$6.99

$

Usually ships in 2-12 days

0

415C

Briggs & Stratton 820052

Plug

Note: (Outlet Housing)

$6.99

$

Usually ships in 2-12 days

0

519

Briggs & Stratton 820030

Screw

Note: (Radiator Fan)

$3.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 820256

Clamp-Hose

$5.99

$

Usually ships in 2-12 days

0

668A

Briggs & Stratton 820218

Spacer

Note: (15mm)

$

$

Not available

839

Briggs & Stratton 825446

Fan-Radiator

Note: (350mm)

$278.99

$

Usually ships in 2-12 days

0

1062

Briggs & Stratton 820093

Gasket-Outlet Housing

$11.99

$

Usually ships in 2-12 days

0

1063

Briggs & Stratton 820095

Pulley-Pump

$159.99

$

Usually ships in 2-12 days

0

1064

Briggs & Stratton 825519

Housing-Outlet

$75.99

$

Usually ships in 2-12 days

0

1065

Briggs & Stratton 820098

Gasket-Inlet Housing

$6.99

$

Usually ships in 2-12 days

0

1066

Briggs & Stratton 825520

Housing-Inlet

$44.99

$

Usually ships in 2-12 days

0

1067

Briggs & Stratton 820100

Gasket-Water Pump

$12.99

$

Usually ships in 2-12 days

0

1068

Briggs & Stratton 825045

Hose/Clamp Assembly

$9.49

$

Usually ships in 2-12 days

0

1087

Briggs & Stratton 825639

Pump-Water

$484.99

$

Usually ships in 2-12 days

0

1185

Briggs & Stratton 820031

Screw

Note: (Outlet Housing)

$3.99

$

Usually ships in 2-12 days

0

1186

Briggs & Stratton 820022

Screw

Note: (Water Pump)

$3.99

$

Usually ships in 2-12 days

0

1187

Briggs & Stratton 820181

Nut

Note: (Water Pump)

$3.49

$

Usually ships in 2-12 days

0

1188

Briggs & Stratton 820031

Screw

Note: (Inlet Housing)

$3.99

$

Usually ships in 2-12 days

0

1193

Briggs & Stratton 820185

Screw

Note: (Thermostat)

$4.99

$

Usually ships in 2-12 days

0
