589447-0322-E2 - Briggs & Stratton Horizontal Engine NIKKI Manual Choke Carbuetor Parts Diagram

Horizontal Engine

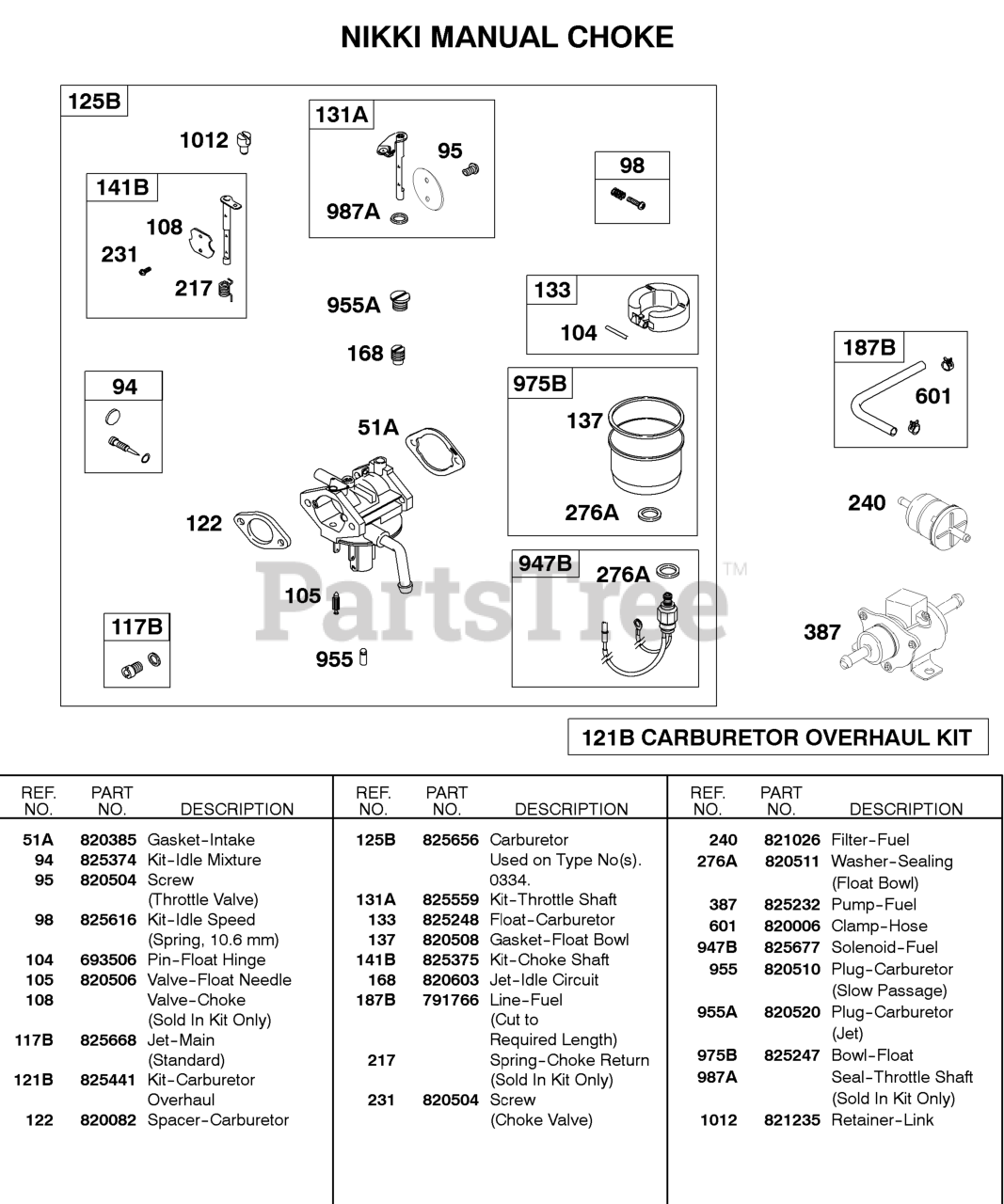

NIKKI Manual Choke Carbuetor Parts Diagram

  • Title
51A

Briggs & Stratton 820385

Gasket-Intake

$31.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 825374

Kit-Idle Mixture

$18.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 820504

Screw

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 825616

Kit-Idle Speed

Note: (Spring, 10.6 mm)

$17.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 693506

Pin-Float Hinge

$5.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 820506

Valve-Float Needle

$24.99

$

Usually ships in 2-12 days

0

108

Valve-Choke

Note: (Sold In Kit Only)

$

$

Not available

117B

Briggs & Stratton 825668

Jet-Main

Note: (Standard)

$32.99

$

Usually ships in 2-12 days

0

121B

Briggs & Stratton 825441

Kit-Carb Overhaul

$232.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 820082

Spacer-Carburetor

$23.99

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 825559

Kit-Throttle Shaft

$93.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 825248

Float-Carburetor

$33.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 820508

Gasket-Float Bowl

$10.99

$

In Stock, only 1 left!

0

141B

Briggs & Stratton 825375

Kit-Choke Shaft

$42.99

$

Usually ships in 2-12 days

0

168

Briggs & Stratton 820603

Jet-Idle Circuit

$26.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

217

Spring-Choke Return

Note: (Sold In Kit Only)

$

$

Not available

231

Briggs & Stratton 820504

Screw

Note: (Choke Valve)

$3.99

$

Usually ships in 2-12 days

0

240

$20.99

$

Usually ships in 2-12 days

0

276A

Briggs & Stratton 820511

Washer-Sealing

Note: (Float Bowl)

$9.49

$

In Stock, only 1 left!

0

387

$184.99

$

In Stock, only 2 left!

0

601

$3.99

$

Usually ships in 2-12 days

0

947B

Briggs & Stratton 825677

Solenoid-Fuel

Note: (Nikki)(Gravity Feed)(Manual Choke)

$328.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 820510

Plug-Carburetor

Note: (Slow Passage)

$15.99

$

Usually ships in 2-12 days

0

955A

Briggs & Stratton 820520

Plug-Carburetor

Note: (Jet)

$7.49

$

Usually ships in 2-12 days

0

975B

$64.99

$

Usually ships in 2-12 days

0

987A

Seal-Throttle Shaft

Note: (Sold In Kit Only)

$

$

Not available

1012

Briggs & Stratton 821235

Retainer-Link

$6.49

$

Usually ships in 2-12 days

0
