589447-0305-E2 - Briggs & Stratton Horizontal Engine AISAN Manual Choke Carburetor Parts Diagram

Horizontal Engine

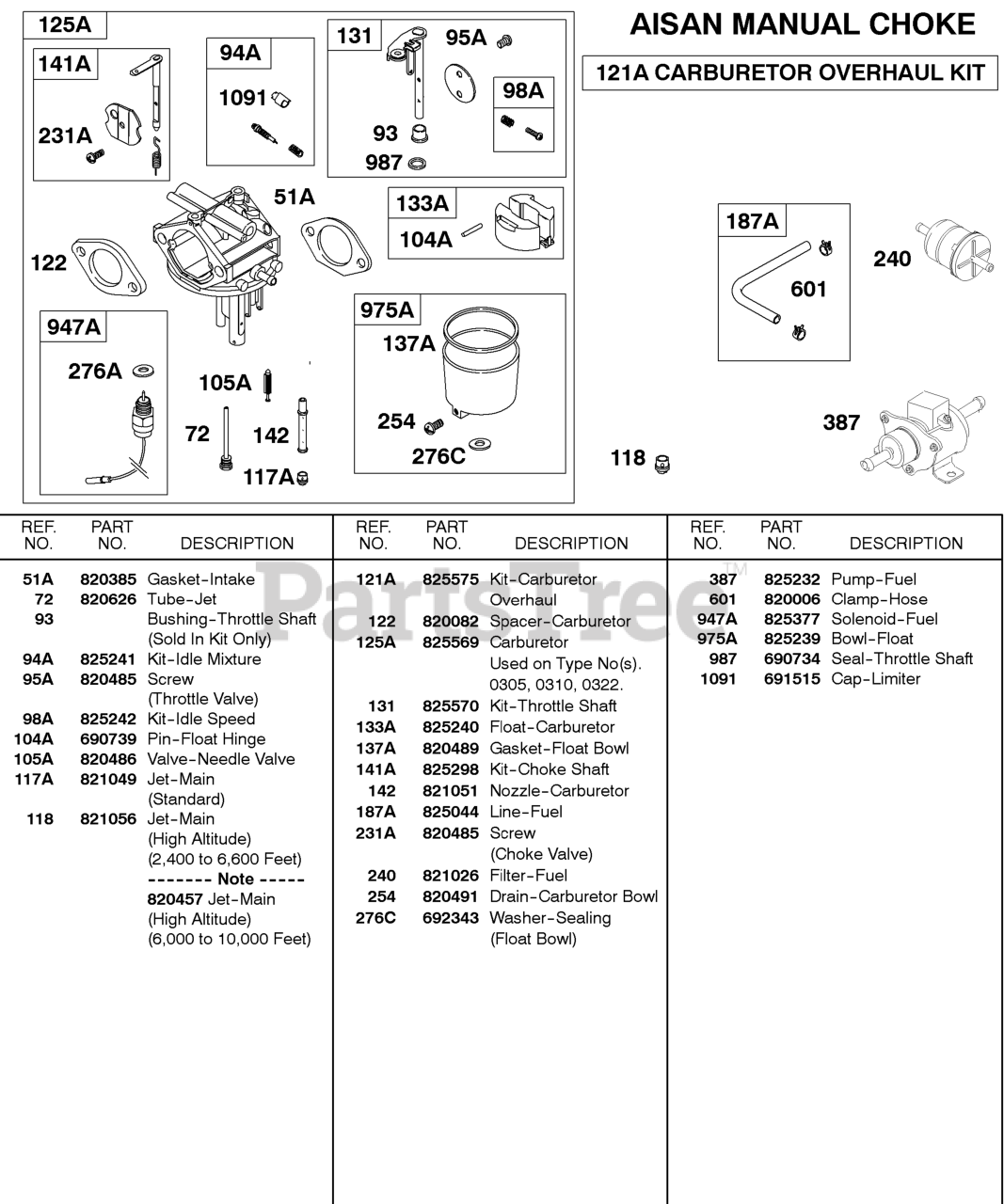

AISAN Manual Choke Carburetor Parts Diagram

  • Title

51A

Briggs & Stratton 820385

Gasket-Intake

$

$

Not available

72

Briggs & Stratton 820626

Tube-Jet

$23.99

$

Usually ships in 2-12 days

0

93

Bushing-Throttle Shaft

Note: (Sold In Kit Only)

$

$

Not available

94A

Briggs & Stratton 825241

Kit-Idle Mixture

$24.99

$

Usually ships in 2-12 days

0

95A

Briggs & Stratton 820485

Screw
(Superseded to 820504)

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 825242

Kit-Idle Speed

$

$

Not available

104A

Briggs & Stratton 690739

Pin-Float Hinge

$6.49

$

In Stock, only 1 left!

0

105A

Briggs & Stratton 820486

Valve-Float Needle

$42.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 821049

Jet-Main

Note: (Standard)

$

$

Not available

118

Briggs & Stratton 821056

Jet-Main

Note: (High Altitude) (#124)(2,400 to 6,600 Feet)(Aisan)

$

$

Not available

118

Briggs & Stratton 820457

Jet-Main

Note: (High Altitude) (#120)(6,000 To 10,000 Feet)(Aisan)

$

$

Not available

121A

Briggs & Stratton 825575

Kit-Carb Overhaul

$255.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 820082

Spacer-Carburetor

$23.99

$

Usually ships in 2-12 days

0

125A

Briggs & Stratton 825569

Carburetor
(Superseded to 825656)

$889.99

$

In Stock, only 1 left!

0

131

Briggs & Stratton 825570

Kit-Throttle Shaft

$166.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 825240

Float-Carburetor

$

$

Not available

137A

Briggs & Stratton 820489

Gasket-Float Bowl

$14.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 825298

Kit-Choke Shaft

$

$

Not available

142

Briggs & Stratton 821051

Nozzle-Carburetor

Note: (Standard)

$74.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 825044

Line-Fuel

$

$

Not available

231A

Briggs & Stratton 820485

Screw
(Superseded to 820504)

Note: (Choke Valve)

$3.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 821026

Filter-Fuel

$20.99

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 820491

Drain-Carburetor Bowl

$11.99

$

Usually ships in 2-12 days

0

276A

Briggs & Stratton 820511

Washer-Sealing

Note: (Float Bowl)

$9.49

$

In Stock, only 1 left!

0

276C

Briggs & Stratton 692343

Washer-Sealing

Note: (Float Bowl)

$7.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 825232

Pump-Fuel

$184.99

$

In Stock, only 2 left!

0

601

Briggs & Stratton 820006

Clamp-Hose

$

$

Not available

947A

Briggs & Stratton 825377

Solenoid-Fuel
(Superseded to 825656)

Note: (Aisan Manual Choke)

$889.99

$

In Stock, only 1 left!

0

975A

Briggs & Stratton 825239

Bowl-Float

$71.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 690734

Seal-Throttle Shaft

$15.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691515

Cap-Limiter

$8.99

$

Usually ships in 2-12 days

0
