588072 - Gravely Pro Series T Gear Drive Kit Drive Kit Parts Diagram

Pro Series T Gear Drive Kit

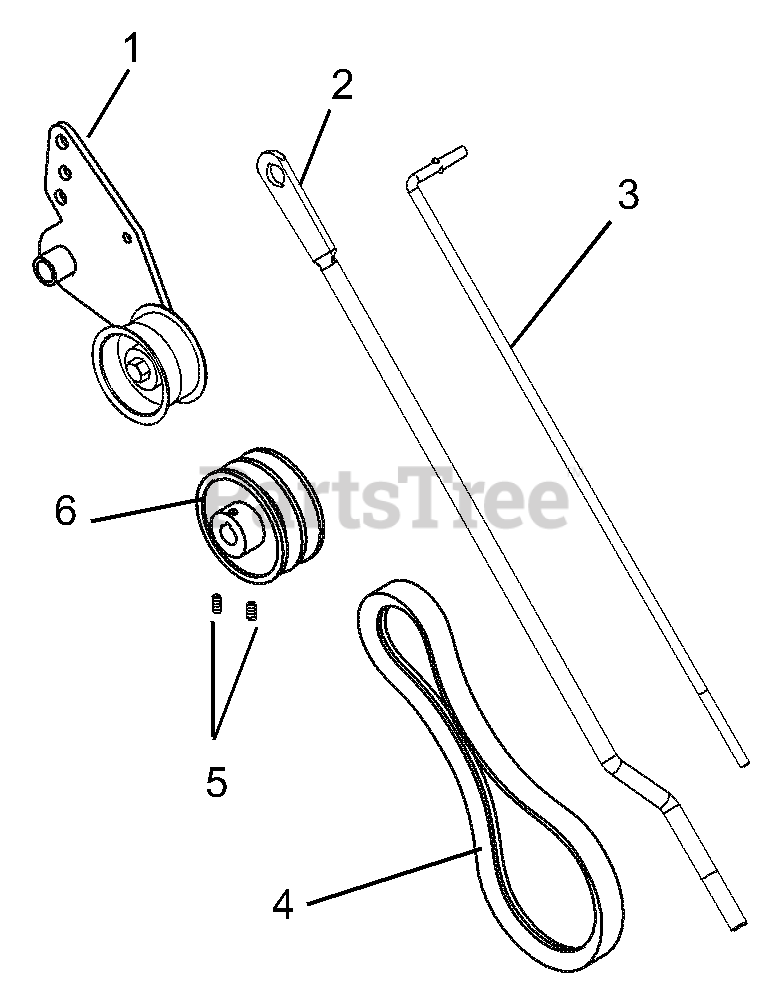

Drive Kit Parts Diagram

  • Title
1

Gravely 04946200

Wheel Clutch Arm Weldment

$93.99

$

Usually ships in 4-12 days

0

2

Gravely 04947800

Steering Link Rod

$24.99

$

Usually ships in 4-12 days

0

3

Gravely 04950500

Steering Rod

$

$

Not available

4

Gravely 07243600

Traction Drive Belt

$102.99

$

In Stock, only 4 left!

0

5

Gravely 06005500

Set Screw, 5/16-18 x 3/8

$2.99

$

In Stock, Qty 13

0

6

Gravely 07328500

Drive Sheave
(Superseded to 07328551)

$193.99

$

Usually ships in 4-12 days

0

7

Gravely 05963300

Hex Bolt, 3/8-16 x 2 Grade 5
(Superseded to 05901718)

Note: Assembled to item 1.

$2.99

$

In Stock, Qty 6

0

8

Gravely 06537200

Center Lock Jam Nut, 3/8-16
(Superseded to 06500914)

Note: Assembled to item 1.

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07318400

Idler, 2-3/4 x 1-1/4

Note: Assembled to item 1.

$22.99

$

In Stock, only 1 left!

0
