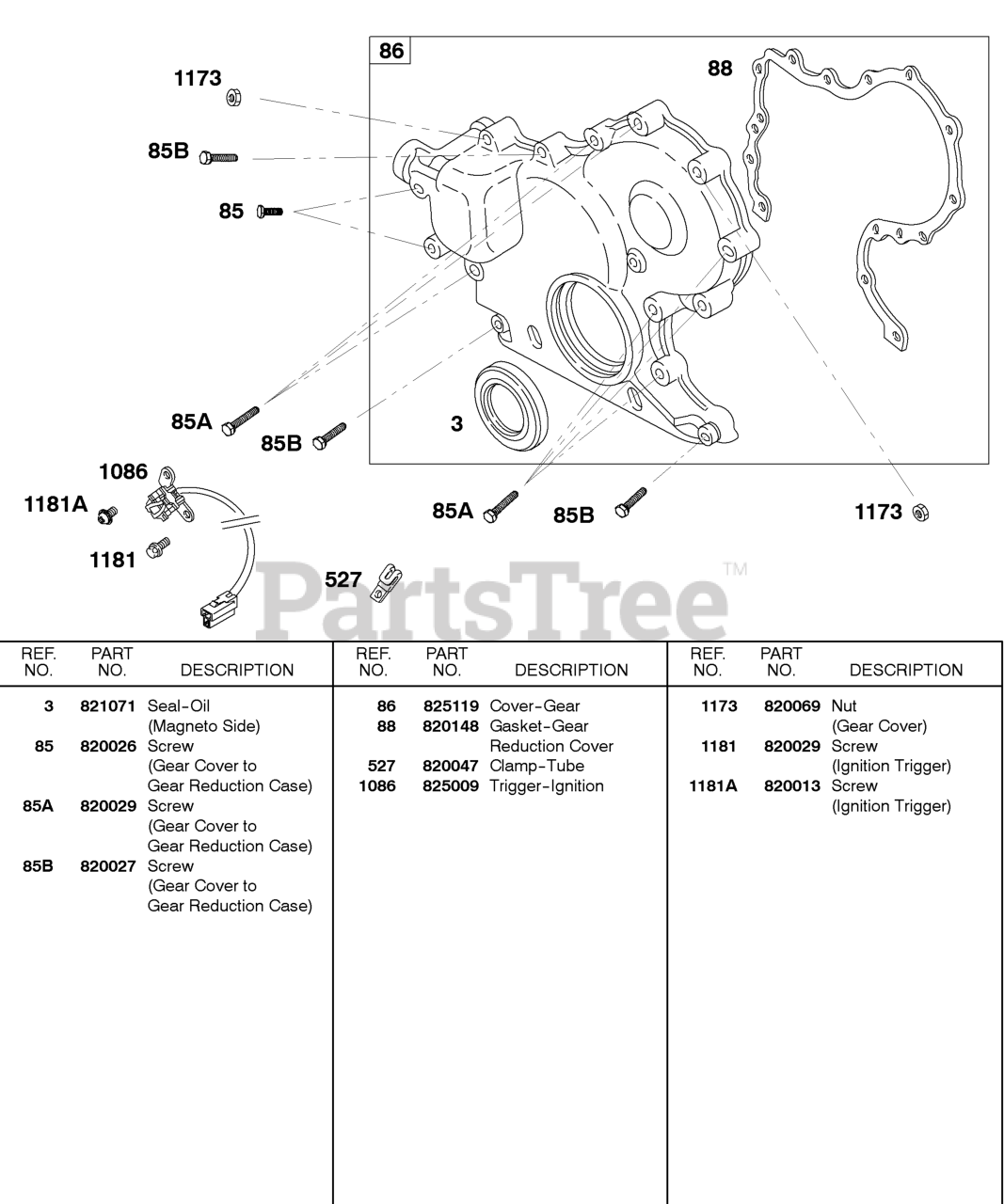

587447-0205-E2 - Briggs & Stratton Horizontal Engine Gear Cover, Ignition Trigger Parts Diagram

Horizontal Engine

Gear Cover, Ignition Trigger Parts Diagram

  • Title
3

Briggs & Stratton 821071

Seal-Oil
(Superseded to 821326)

Note: (Magneto Side)

$73.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 820026

Screw

Note: (Gear Cover to Gear Reduction Case)

$3.49

$

Usually ships in 2-12 days

0

85A

Briggs & Stratton 820029

Screw

Note: (Gear Cover to Gear Reduction Case)

$3.99

$

Usually ships in 2-12 days

0

85B

Briggs & Stratton 820027

Screw

Note: (Gear Cover to Gear Reduction Case)

$3.49

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 825119

Cover-Gear
(Superseded to 825759)

$237.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 820148

Gasket-Gear Reduction Cover

$

$

Not available

527

$4.49

$

Usually ships in 2-12 days

0

1086

Briggs & Stratton 825009

Trigger-Ignition

$128.99

$

Usually ships in 2-12 days

0

1173

Briggs & Stratton 820069

Nut

Note: (Gear Cover)

$3.99

$

Usually ships in 2-12 days

0

1181

Briggs & Stratton 820029

Screw

Note: (Ignition Trigger)

$3.99

$

Usually ships in 2-12 days

0

1181A

Briggs & Stratton 820013

Screw

Note: (Ignition Trigger)

$5.99

$

Usually ships in 2-12 days

0
