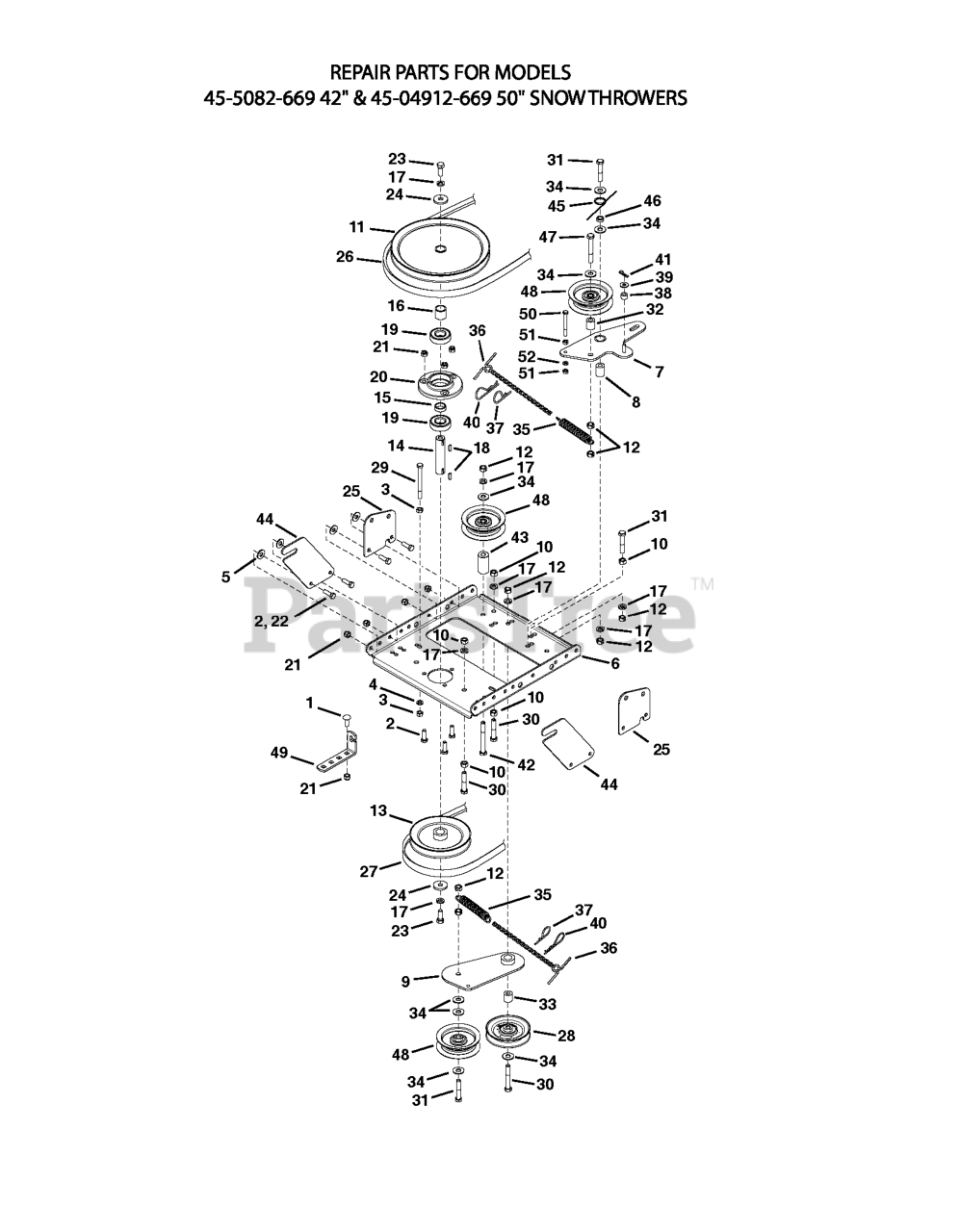

587293701 - Husqvarna Snow Blower Attachment (2019-01) DRIVE Parts Diagram

Snow Blower Attachment

DRIVE Parts Diagram

  • Title

11

Husqvarna 501345101

PULLEY 46981

Note: Pulley, V Type 9"

$

$

Not available

21

Husqvarna 501332601

NUT 47810

Note: Hex Nut, 5/16-18 Nylock

$

$

Not available

42

Husqvarna 501348101

BOLT 46938

Note: Hex Bolt, 3/8-16 x 3-1/4"

$

$

Not available

41

Husqvarna 501347001

PIN 47134

Note: Pin, Hair Cotter 5/64"

$

$

Not available

17

Husqvarna 577157101

LOCK WASHER

Note: Lock Washer, 3/8"

$

$

Not available

14

Husqvarna 597376901

NEEDS DESCRIPTION

Note: Shaft

$

$

Currently unavailable

9

Husqvarna 501345001

IDLER BRACKET 63762

Note: Idler Bracket Assembly

$

$

Not available

10

Husqvarna 531004664

NUT

Note: Hex Nut, 3/8-16

$

$

Not available

27

Husqvarna 597376501

NEEDS DESCRIPTION

Note: Belt, V Type Auger

$

$

Currently unavailable

49

Husqvarna 501347701

BRACKET 24558

Note: Cable Bracket

$

$

Not available

5

Husqvarna 522770301

WASHER

Note: Washer, 5/16" Std. Wrt.

$

$

Not available

30

Husqvarna 531008114

NEEDS DESCRIPTION

Note: Hex Bolt, 3/8-16 x 2-1/2"

$

$

Currently unavailable

35

Husqvarna 501346701

SPRING 46959

Note: Spring

$

$

Not available

18

Husqvarna 597376801

NEEDS DESCRIPTION

Note: Key

$

$

Currently unavailable

3

Husqvarna 522758701

NEEDS DESCRIPTION

Note: Hex Nut, 5/16-18

$

$

Currently unavailable

26

Husqvarna 501346201

BELT 48138

Note: "Belt, V Type Drive (56")

$

$

Not available

38

Husqvarna 501346901

SPACER 23727

Note: Spacer

$

$

Not available

44

Husqvarna 501348001

BRACKET 25728

Note: Rear Pulley Frame Bracket

$

$

Not available

37

Husqvarna 522755701

NEEDS DESCRIPTION

Note: Pin, Hair Cotter, 3/32"

$

$

Currently unavailable

33

Husqvarna 501346601

SPACER 24472

Note: Spacer, Pivot

$

$

Not available

45

Husqvarna 501347401

SPRING 47607

Note: Spring, Torsion

$

$

Not available

52

Husqvarna 577161801

NEEDS DESCRIPTION

Note: Lock Washer, 1/4"

$

$

Currently unavailable

26

Husqvarna 501346101

BELT 46989

Note: "Belt, V Type Drive (55")

$

$

Not available

32

Husqvarna 501346501

SPACER 24571

Note: Spacer

$

$

Not available

2

Husqvarna 531007426

BOLT

Note: Hex Bolt, 5/16-18 x 1"

$

$

Not available

31

Husqvarna 531002732

BOLT

Note: Hex Bolt, 3/8-16 x 2"

$

$

Not available

36

Husqvarna 501346801

CHAIN 46963

Note: Chain

$

$

Not available

4

Husqvarna 522758601

LOCK WASHER
(Superseded to 735116450)

Note: Lock Washer, 5/16"

$2.49

$

In Stock, only 1 left!

0

23

Husqvarna 531007625

BOLT

Note: Hex Bolt, 3/8-24 x 1"

$

$

Not available

22

Husqvarna 522759901

NEEDS DESCRIPTION

Note: Hex Bolt, 5/16-18 x 3/4"

$

$

Currently unavailable

50

Husqvarna 501347801

BOLT 49870

Note: Hex Bolt, 1/4-20 x 2-1/2"

$

$

Not available

39

Husqvarna 522835901

WASHER

Note: Washer, 1/4"

$

$

Not available

43

Husqvarna 501348201

SPACER 25780

Note: Spacer

$

$

Not available

28

Husqvarna 501340001

PULLEY 47044

Note: Pulley, V Type 4"

$

$

Not available

29

Husqvarna 501346401

BOLT 47025

Note: Hex Bolt, 5/16-18 x 3-1/2"

$

$

Not available

40

Husqvarna 522752001

NEEDS DESCRIPTION

Note: Pin, Hair Cotter #4 (1/8")

$

$

Currently unavailable

13

Husqvarna 584245301

PULLEY

Note: Pulley, V Type 5-1/2"

$

$

Not available

46

Husqvarna 531004640

BUSHING

Note: Spacer

$

$

Not available

19

Husqvarna 597376301

NEEDS DESCRIPTION

Note: Bearing, Ball

$

$

Currently unavailable

20

Husqvarna 597376701

NEEDS DESCRIPTION

Note: Housing, Bearing

$

$

Currently unavailable

48

Husqvarna 501347901

PULLEY 48883

Note: Pulley, Flat 3-5/8"

$

$

Not available

1

Husqvarna 522756301

NEEDS DESCRIPTION

Note: Carriage Bolt, 5/16-18 x 3/4"

$

$

Currently unavailable

47

Husqvarna 501347501

BOLT 43509

Note: Hex Bolt, 3/8-16 x 2-3/4" Lg.

$

$

Not available

12

Husqvarna 501345201

NUT 43082

Note: Nut, Hex Lock, 3/8-16

$

$

Not available

8

Husqvarna 501344901

SPACER 24286

Note: Spacer, Pivot

$

$

Not available

7

Husqvarna 501344801

IDLER ARM 63904

Note: Idler Arm Assembly

$

$

Not available
