587 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

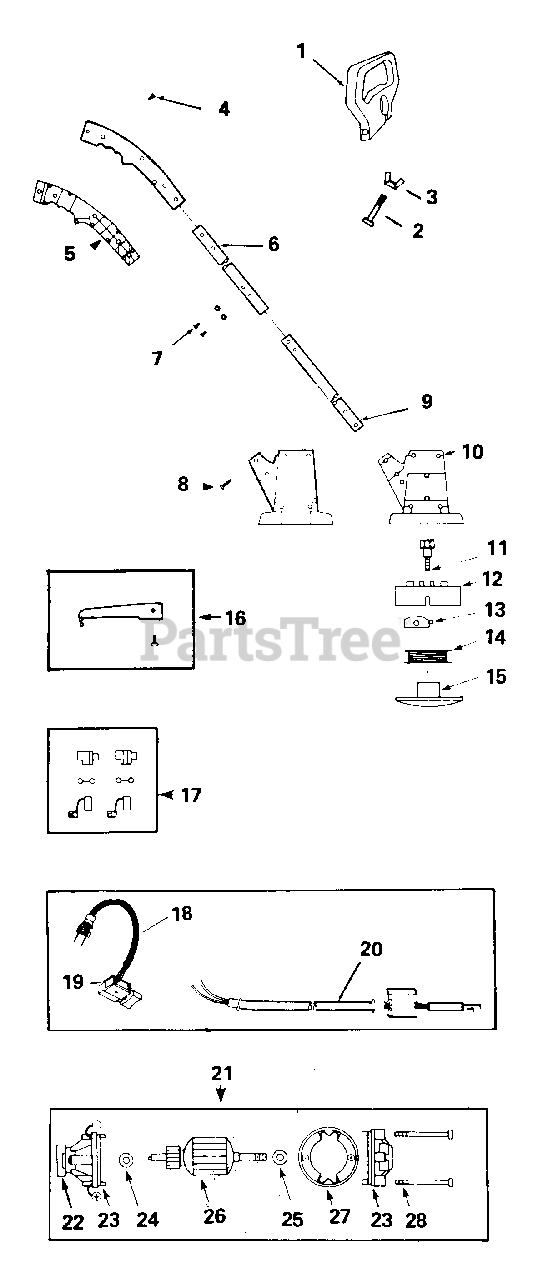

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530092637

ASSIST HANDLE

$

$

Not available

2

Poulan 530092638

BOLT

$

$

Not available

3

Poulan 530092049

WING NUT

$

$

Not available

4

Poulan 530092598

SCREW

$

$

Not available

5

Poulan 530092639

TRIGGER HANDLE SET

$

$

Not available

6

Poulan 530092641

TUBE, UPPER

$

$

Not available

7

Poulan 530092626

TUBE FASTENER KIT

$

$

Not available

8

Poulan 530092624

SCREW

$

$

Not available

9

Poulan 530092644

TUBE, LOWER

$

$

Not available

10

Poulan 530092694

MOTOR HOUSING SET

$

$

Not available

11

Poulan 530092646

ADAPTOR

$

$

Not available

12

Poulan 530092695

HUB w/LINE SAVERS

$

$

Not available

13

Poulan 530093216

LINE SAVER

$2.49

$

In Stock, only 2 left!

0

14

Poulan 952701513

SPOOL, WOUND

$7.99

$

Usually ships in 3-10 days

0

15

Poulan 530092651

BALL LOCK

$

$

Not available

16

Poulan 530092669

LINE LIMITER KIT

$

$

Not available

17

Poulan 530092652

BRUSH KIT

$

$

Not available

18

Poulan 530090866

POWER CORD PIGTAIL

$

$

Not available

19

Poulan 530090824

SWITCH

$

$

Not available

20

Poulan 530092698

HARNESS w/RECTIFIER

$

$

Not available

21

Poulan 530092656

MOTOR

$

$

Not available

22

Poulan 530092657

INSULATOR

$

$

Not available

23

Poulan 530092658

END BELL SET

$

$

Not available

24

Poulan 530092659

WASHER-THRUST, .025"

$

$

Not available

25

Poulan 530092661

WASHER-THRUST, .010"

$

$

Not available

26

Poulan 530092662

ARMATURE

$78.99

$

Usually ships in 3-10 days

0

27

Poulan 530092663

FIELD ASSEMBLY

$

$

Not available

28

Poulan 530092664

SCREW

$

$

Not available
