58620 - Toro 22" Wheeled String Trimmer (SN: 322000000 - 322006064) (2022) Mower Head Assembly Parts Diagram

22" Wheeled String Trimmer

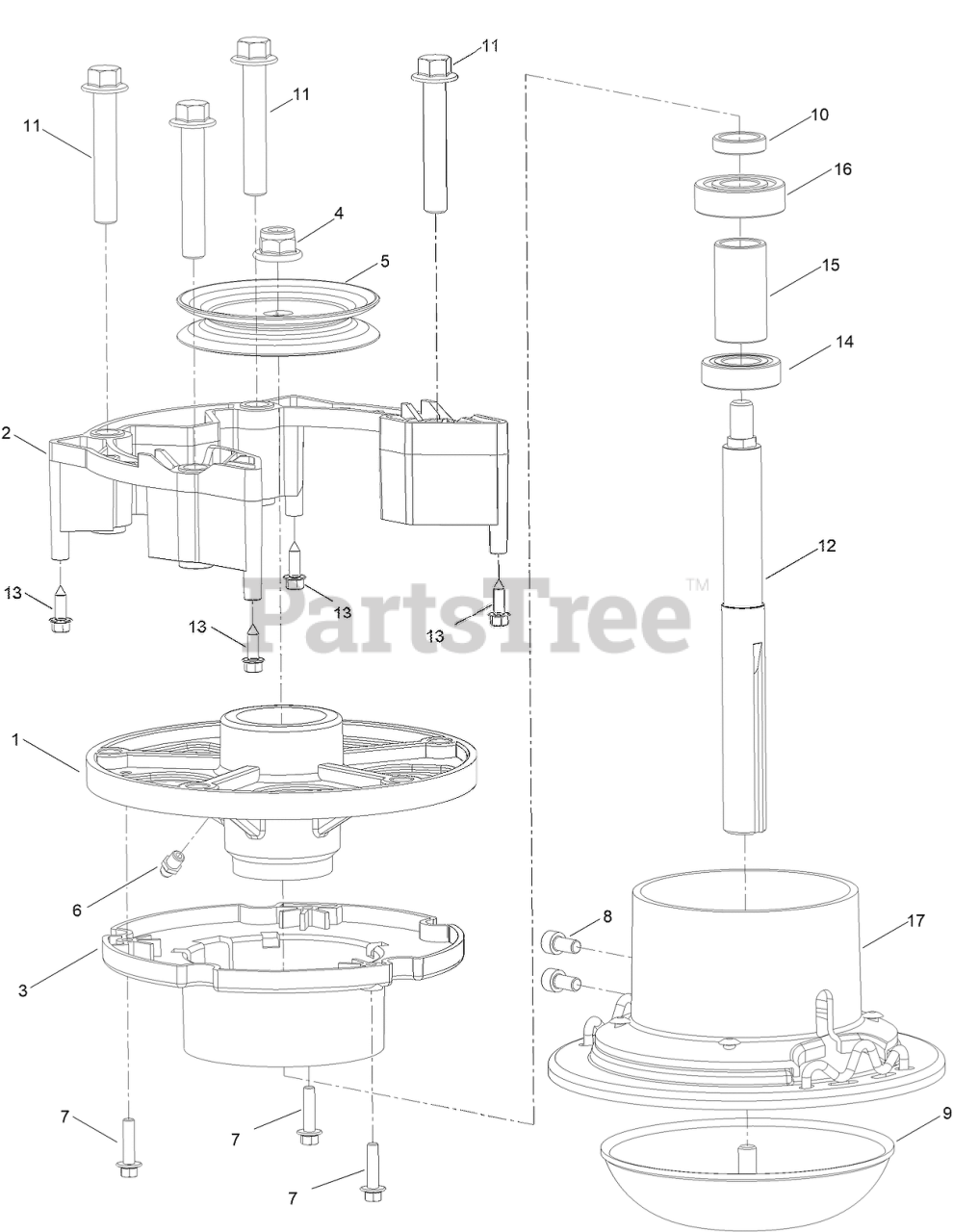

Mower Head Assembly Parts Diagram

  • Title
1

Toro 144-4797

HOUSING-JACKSHAFT, UPPER

$

$

Currently unavailable

2

Toro 144-4798

SPACER-HEAD, CUTTING

$

$

Currently unavailable

3

Toro 144-4799

HOUSING-TRIMMER, LOWER

$

$

Currently unavailable

4

Toro 144-4800

NUT-HEX

$

$

Currently unavailable

5

Toro 144-4801

PULLEY-DRIVE

$

$

Currently unavailable

6

Toro 144-4802

FITTING-GREASE

$

$

Currently unavailable

7

Toro 144-4803

SCREW-HHF

$

$

Currently unavailable

8

Toro 144-4804

SCREW-SHCS

$

$

Currently unavailable

9

Toro 144-4805

HEIGHT GUIDE ASM

$

$

Currently unavailable

10

Toro 144-4807

SPACER

$

$

Currently unavailable

11

Toro 144-4808

SCREW-HHF

$

$

Currently unavailable

12

Toro 144-4809

SHAFT-TRIMMER

$

$

Currently unavailable

13

Toro 144-4810

SCREW-PHWH

$

$

Currently unavailable

14

Toro 144-4812

BEARING-BALL

$

$

Currently unavailable

15

Toro 144-4811

SPACER-TRIMMER

$

$

Currently unavailable

16

Toro 144-4813

BEARING-BALL

$

$

Currently unavailable

17

Toro 144-4806

STRING WRAP ASM

$

$

Currently unavailable
