58620 - Toro 22" Wheeled String Trimmer (SN: 321000001 - 321999999) (2021) Handle Assembly Parts Diagram

22" Wheeled String Trimmer

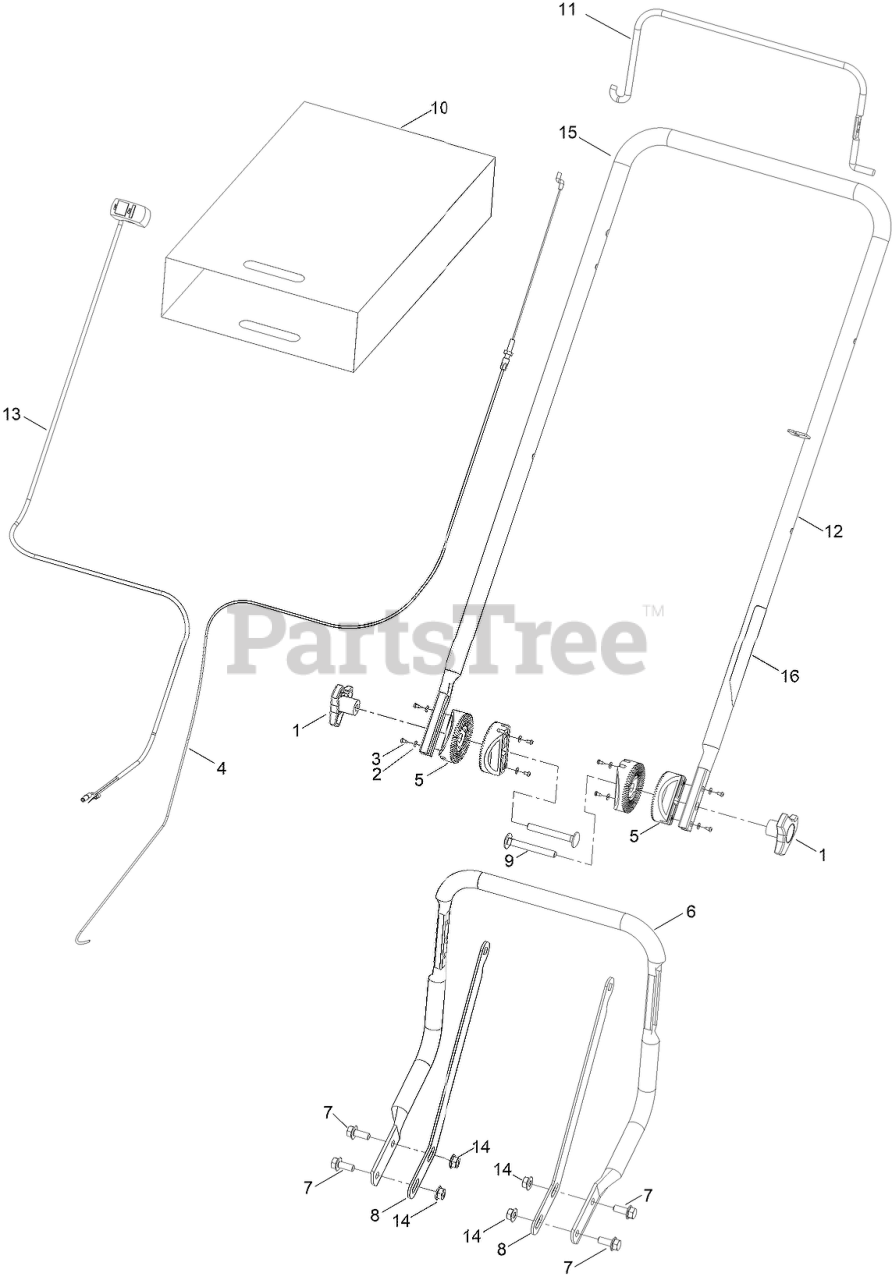

Handle Assembly Parts Diagram

  • Title
1

Toro 144-4733

KNOB-HANDLE

$

$

Currently unavailable

2

Toro 144-4778

WASHER-PLAIN

$

$

Currently unavailable

3

Toro 144-4779

SCREW-PPH

$

$

Currently unavailable

4

Toro 144-4781

CABLE-CLUTCH

$

$

Currently unavailable

5

Toro 144-4782

PIVOT-HANDLE

$

$

Currently unavailable

6

Toro 144-4783

HANDLE-LOWER

$

$

Currently unavailable

7

Toro 144-4784

SCREW-HHF

$

$

Currently unavailable

8

Toro 144-4785

BRACKET-SUPPORT, HANDLE

$

$

Currently unavailable

9

Toro 144-4786

BOLT-CARRIAGE

$

$

Currently unavailable

10

Toro 144-4846

MANUAL ASM

$3.49

$

Usually ships in 3-6 days

0

11

Toro 144-4787

BAIL-CLUTCH

$

$

Currently unavailable

12

Toro 144-4780

HANDLE-UPPER

$

$

Currently unavailable

13

Toro 144-4844

SWITCH-STOP

$

$

Currently unavailable

14

Toro 144-4788

NUT-HEX

$

$

Currently unavailable

15

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

16

Toro 144-4839

DECAL-HANDLE

$

$

Currently unavailable
