58604 - Toro Front-Tine Tiller/Cultivator (SN: 323000001 - 323999999) (2023) Chassis Assembly Parts Diagram

Front-Tine Tiller/Cultivator

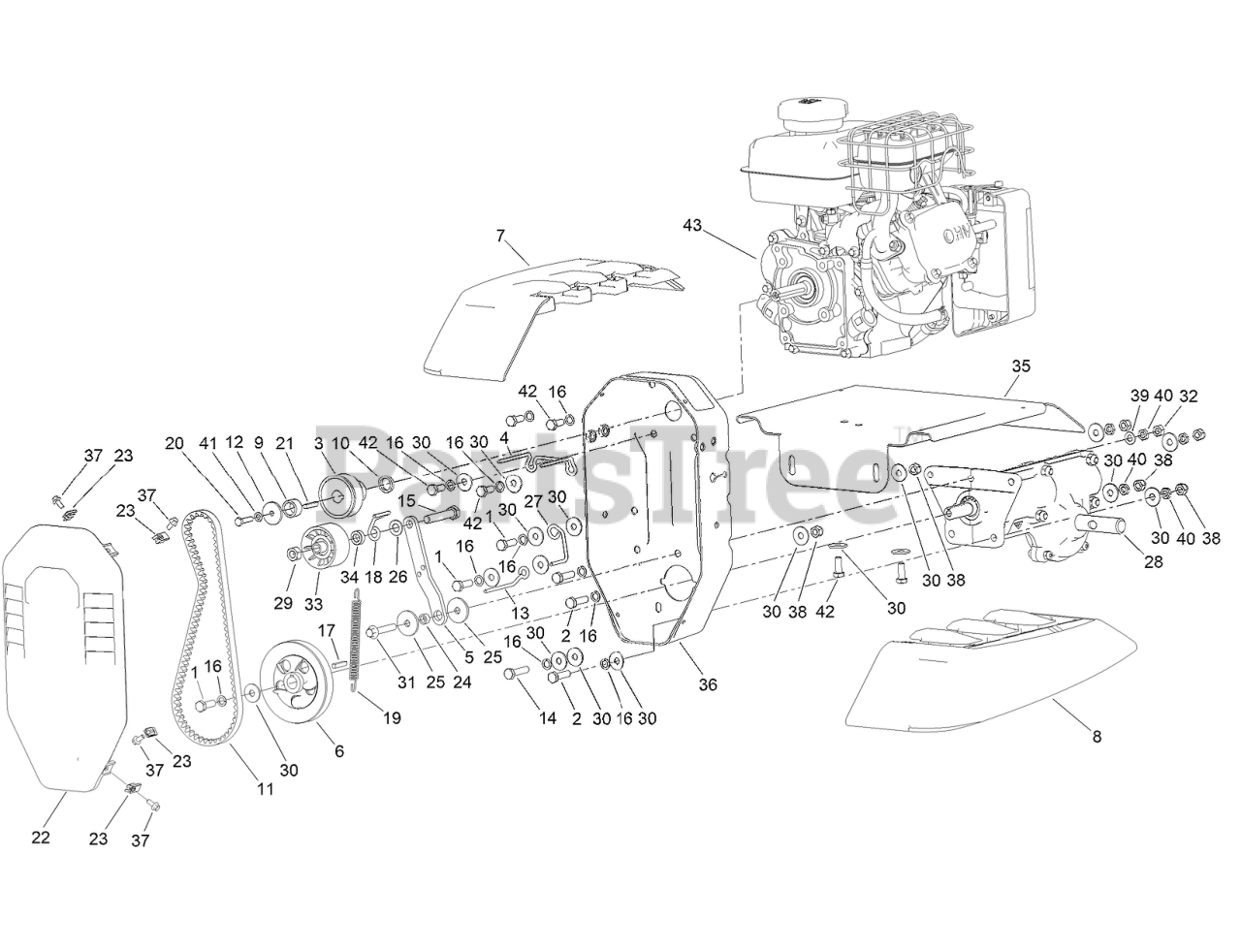

Chassis Assembly Parts Diagram

  • Title
1

Toro 144-4880

SCREW-HHCS

$

$

Currently unavailable

2

Toro 144-4887

SCREW-HHCS

$

$

Currently unavailable

3

Toro 144-4889

PULLEY-16MM

$

$

Currently unavailable

4

Toro 144-4895

BELT GUIDE-DOUBLE

$

$

Currently unavailable

$

$

Currently unavailable

6

Toro 144-4898

PULLEY-TRANSMISSION

$

$

Currently unavailable

7

Toro 144-4899

SHIELD-LEFT

$

$

Currently unavailable

8

Toro 144-4900

SHIELD-RIGHT

$

$

Currently unavailable

9

Toro 144-4901

BUSHING

$

$

Currently unavailable

10

Toro 144-4902

BUSHING

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Toro 144-4904

WASHER-FLAT

$

$

Currently unavailable

13

Toro 144-4905

BELT GUIDE-SINGLE

$

$

Currently unavailable

14

Toro 144-4907

SCREW-HHCS

$

$

Currently unavailable

15

Toro 144-4908

SCREW-HHCS

$

$

Currently unavailable

16

Toro 144-4909

WASHER-LOCK

$

$

Currently unavailable

17

Toro 144-4916

KEY-SQUARE

$

$

Currently unavailable

18

Toro 144-4917

BELT CATCH

$

$

Currently unavailable

19

Toro 144-4918

TENSION SPRING

$

$

Currently unavailable

20

Toro 144-4919

SCREW-HHCS

$

$

Currently unavailable

21

Toro 144-4920

KEY-SQUARE

$

$

Currently unavailable

22

Toro 144-4921

COVER-PULLEY

$

$

Currently unavailable

23

Toro 144-4922

CAGE NUT

$

$

Currently unavailable

24

Toro 144-4923

BUSHING

$

$

Currently unavailable

25

Toro 144-4924

WASHER-WIDE

$

$

Currently unavailable

26

Toro 144-4688

WASHER-PLAIN

$

$

Currently unavailable

27

Toro 144-4828

GUIDE-BELT

$

$

Currently unavailable

28

Toro 144-4929

MOUNT-TRANSMISSION

$

$

Currently unavailable

29

Toro 144-4935

NUT-HEX

$

$

Currently unavailable

30

Toro 144-4936

WASHER-FLAT

$

$

Currently unavailable

31

Toro 144-4937

SCREW-HHF

$

$

Currently unavailable

32

Toro 144-4939

NUT-HEX

$

$

Currently unavailable

33

Toro 144-4940

PULLEY-IDLER

$

$

Currently unavailable

34

Toro 144-4945

SPACER-18MM

$

$

Currently unavailable

35

Toro 144-4949

SHIELD-CENTER

$

$

Currently unavailable

36

Toro 144-4954

BOX-PULLEY

$

$

Currently unavailable

37

Toro 144-4955

SCREW-HHF

$

$

Currently unavailable

38

Toro 144-4738

NUT-HEX

$

$

Currently unavailable

39

Toro 144-4958

WASHER-FLAT

$

$

Currently unavailable

40

$

$

Currently unavailable

41

Toro 144-4962

WASHER-LOCK

$

$

Currently unavailable

42

Toro 144-4965

SCREW-HHCS

$

$

Currently unavailable

43

Toro 147-4289

ENGINE-TORO [99CC]

$

$

Currently unavailable
