58603 - Toro Rear-Tine Tiller (SN: 323000001 - 323999999) (2023) Tines and Transmission Assembly Parts Diagram

Rear-Tine Tiller

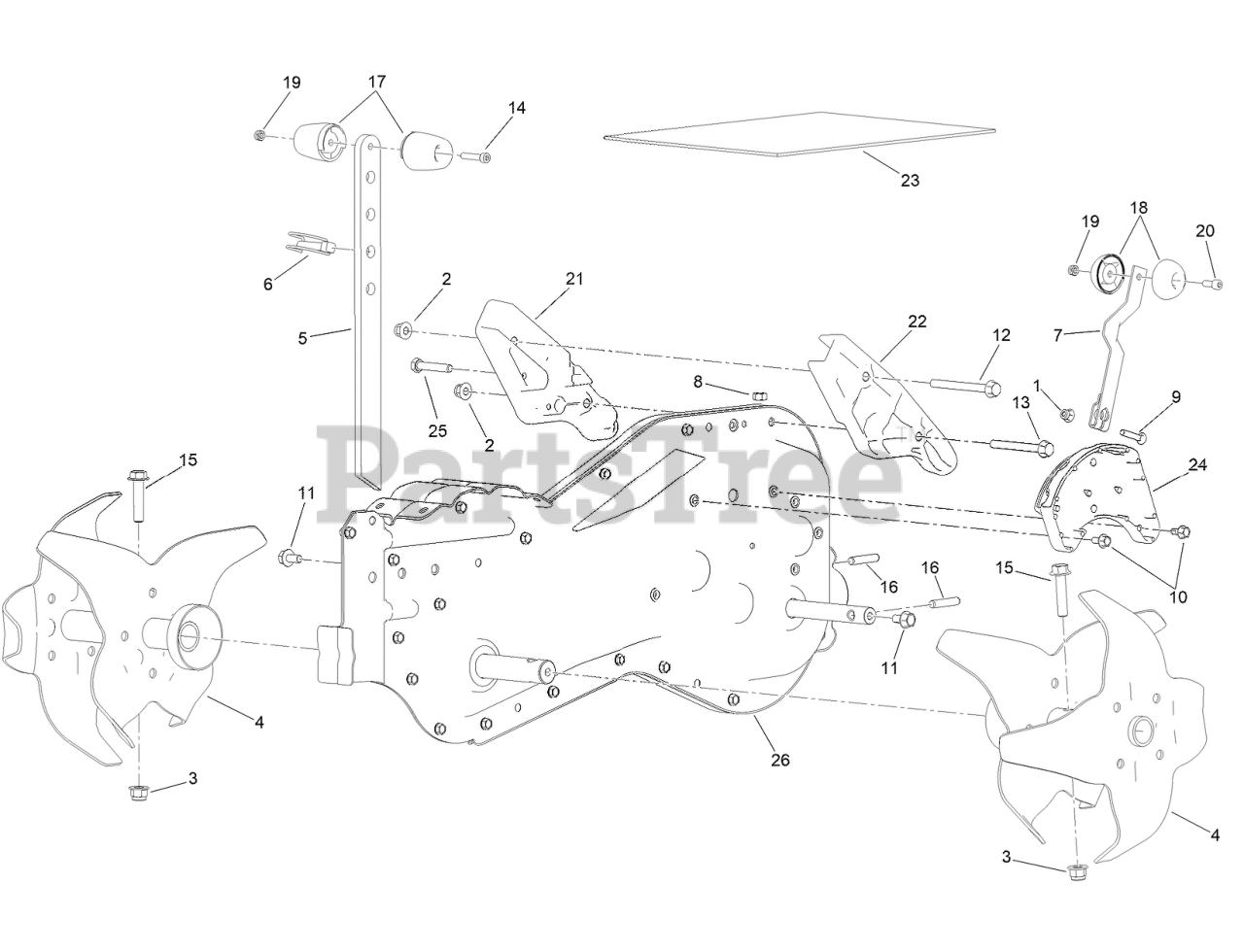

Tines and Transmission Assembly Parts Diagram

  • Title
1

Toro 144-5022

NUT-HEX

$

$

Currently unavailable

2

Toro 144-4789

NUT-HEX

$

$

Currently unavailable

3

Toro 144-4817

NUT-HEX

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Toro 144-5038

STAKE-DRAG

$

$

Currently unavailable

6

Toro 144-5042

PIN-LOCK

$

$

Currently unavailable

7

Toro 144-5043

ARM-SHIFTER

$

$

Currently unavailable

8

Toro 144-4939

NUT-HEX

$

$

Currently unavailable

9

Toro 144-5070

SCREW-CRG

$

$

Currently unavailable

10

Toro 144-5071

SCREW-HF

$

$

Currently unavailable

11

Toro 144-5072

SCREW-HF

$

$

Currently unavailable

12

Toro 144-5073

SCREW-HF

$

$

Currently unavailable

13

Toro 144-5074

SCREW-HF

$

$

Currently unavailable

14

Toro 144-5077

SCREW-SHCS

$

$

Currently unavailable

15

Toro 144-5078

SCREW-HHF

$

$

Currently unavailable

16

Toro 144-5080

PIN-DOWEL

$

$

Currently unavailable

17

Toro 144-4946

HANDLE

$

$

Currently unavailable

18

Toro 144-5085

HANDLE-SHIFT

$

$

Currently unavailable

19

Toro 144-5086

NUT-HEX

$

$

Currently unavailable

20

Toro 144-5087

SCREW-SHCS

$

$

Currently unavailable

21

Toro 144-5091

MOUNT-HANDLEBAR, LEFT

$

$

Currently unavailable

22

Toro 144-5101

MOUNT-HANDLEBAR, RIGHT

$

$

Currently unavailable

23

Toro 144-5093

BAG-MANUAL

$

$

Currently unavailable

24

Toro 144-5095

SHIFT SELECTOR

$

$

Currently unavailable

25

Toro 144-5100

SCREW-HHCS

$

$

Currently unavailable

26

Toro 147-4291

TRANSMISSION ASM

$

$

Currently unavailable
