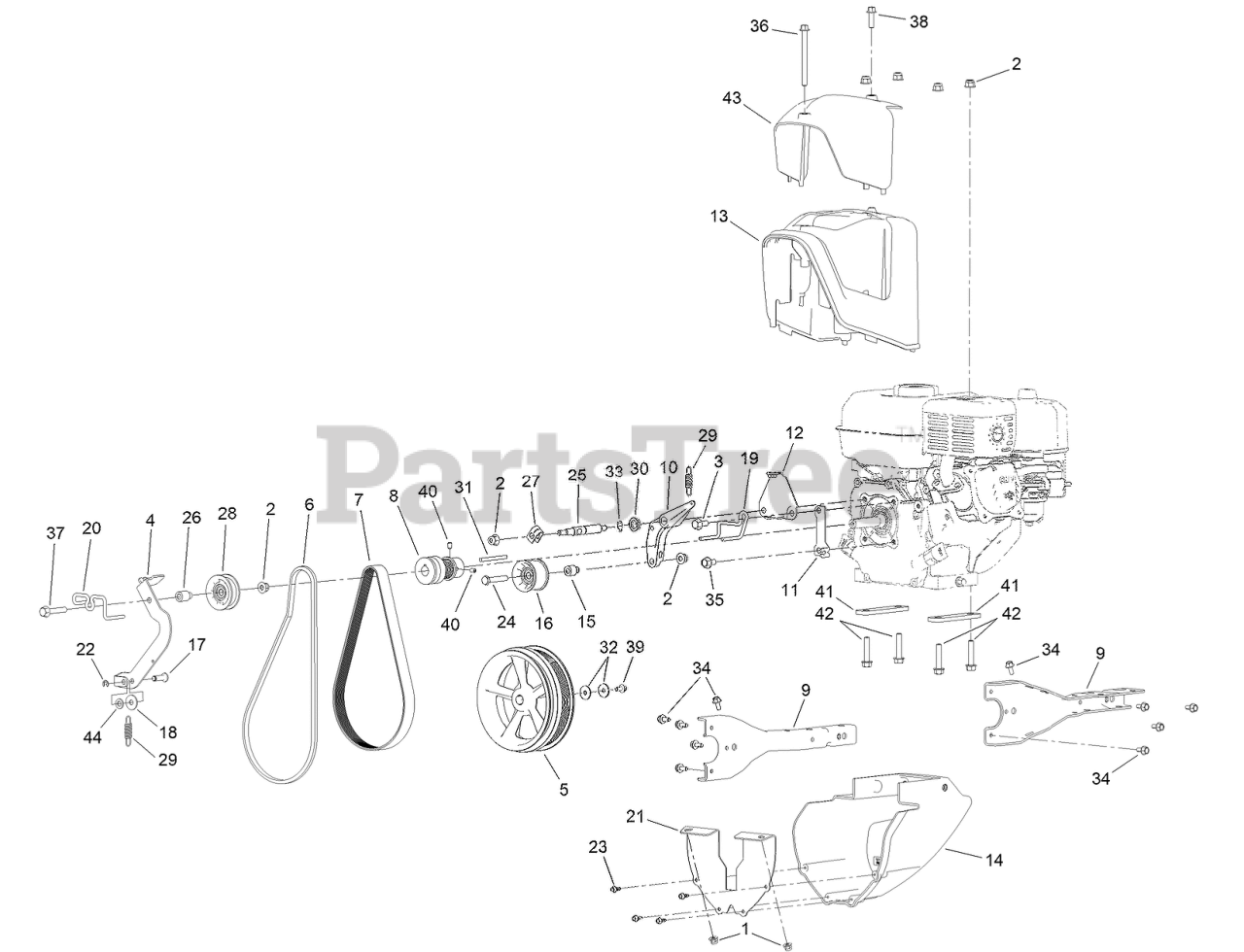

58603 - Toro Rear-Tine Tiller (SN: 323000001 - 323999999) (2023) Engine Assembly Parts Diagram

Rear-Tine Tiller

Engine Assembly Parts Diagram

  • Title
1

Toro 144-5022

NUT-HEX

$

$

Currently unavailable

2

Toro 144-4789

NUT-HEX

$

$

Currently unavailable

3

Toro 144-4784

SCREW-HHF

$

$

Currently unavailable

4

Toro 144-5029

ARM-REVERSE

$

$

Currently unavailable

5

Toro 144-5031

PULLEY-TRANSMISSION

$

$

Currently unavailable

6

Toro 144-5032

BELT-V

$

$

Currently unavailable

7

Toro 144-5033

BELT-POLY

$

$

Currently unavailable

8

Toro 144-5034

PULLEY-ENGINE

$

$

Currently unavailable

9

Toro 144-5035

MOUNT-ENGINE

$

$

Currently unavailable

10

Toro 144-5036

ARM-FORWARD

$

$

Currently unavailable

11

Toro 144-5037

BRACKET-CABLE

$

$

Currently unavailable

12

Toro 144-5041

BRACKET-ENGINE

$

$

Currently unavailable

13

Toro 144-5047

GUARD-UPPER

$

$

Currently unavailable

14

Toro 144-5048

GUARD-LOWER

$

$

Currently unavailable

15

Toro 144-5049

BUSHING-FORWARD IDLER

$

$

Currently unavailable

16

Toro 144-5050

PULLEY-FORWARD IDLER

$

$

Currently unavailable

17

Toro 144-5052

PIN-CLEVIS

$

$

Currently unavailable

18

Toro 144-4936

WASHER-FLAT

$

$

Currently unavailable

19

Toro 144-5056

GUIDE-FORWARD

$

$

Currently unavailable

20

Toro 144-5057

GUIDE-REVERSE

$

$

Currently unavailable

21

Toro 144-5058

GUARD-LOWER PULLEY

$

$

Currently unavailable

22

Toro 144-5059

CLIP-CLEVIS

$

$

Currently unavailable

23

Toro 144-5060

SCREW-HHF

$

$

Currently unavailable

24

Toro 144-5000

SCREW-HHCS

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Toro 144-5062

BUSHING-REVERSE

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Toro 144-5064

PULLEY-REVERSE

$

$

Currently unavailable

29

Toro 144-5065

SPRING-ARM

$

$

Currently unavailable

30

Toro 144-5066

BUSHING-ARM

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Toro 144-5068

WASHER-FLAT

$

$

Currently unavailable

33

Toro 144-5069

RING-RETAINING

$

$

Currently unavailable

34

Toro 144-5071

SCREW-HF

$

$

Currently unavailable

35

Toro 144-5072

SCREW-HF

$

$

Currently unavailable

36

Toro 144-5076

SCREW-HF

$

$

Currently unavailable

37

Toro 144-5081

SCREW-HHF

$

$

Currently unavailable

38

Toro 144-5083

SCREW-HF

$

$

Currently unavailable

39

Toro 144-5084

SCREW-HHF

$

$

Currently unavailable

40

Toro 144-4794

SCREW-SET

$

$

Currently unavailable

41

Toro 144-5088

PLATE-ENGINE

$

$

Currently unavailable

42

Toro 144-5089

SCREW-HHF

$

$

Currently unavailable

43

Toro 144-5092

COVER-PULLEY

$

$

Currently unavailable

44

Toro 144-4958

WASHER-FLAT

$

$

Currently unavailable
