58603 - Toro Rear-Tine Tiller (SN: 322000001 - 322999999) (2022) Wheels and Shield Assembly Parts Diagram

Rear-Tine Tiller

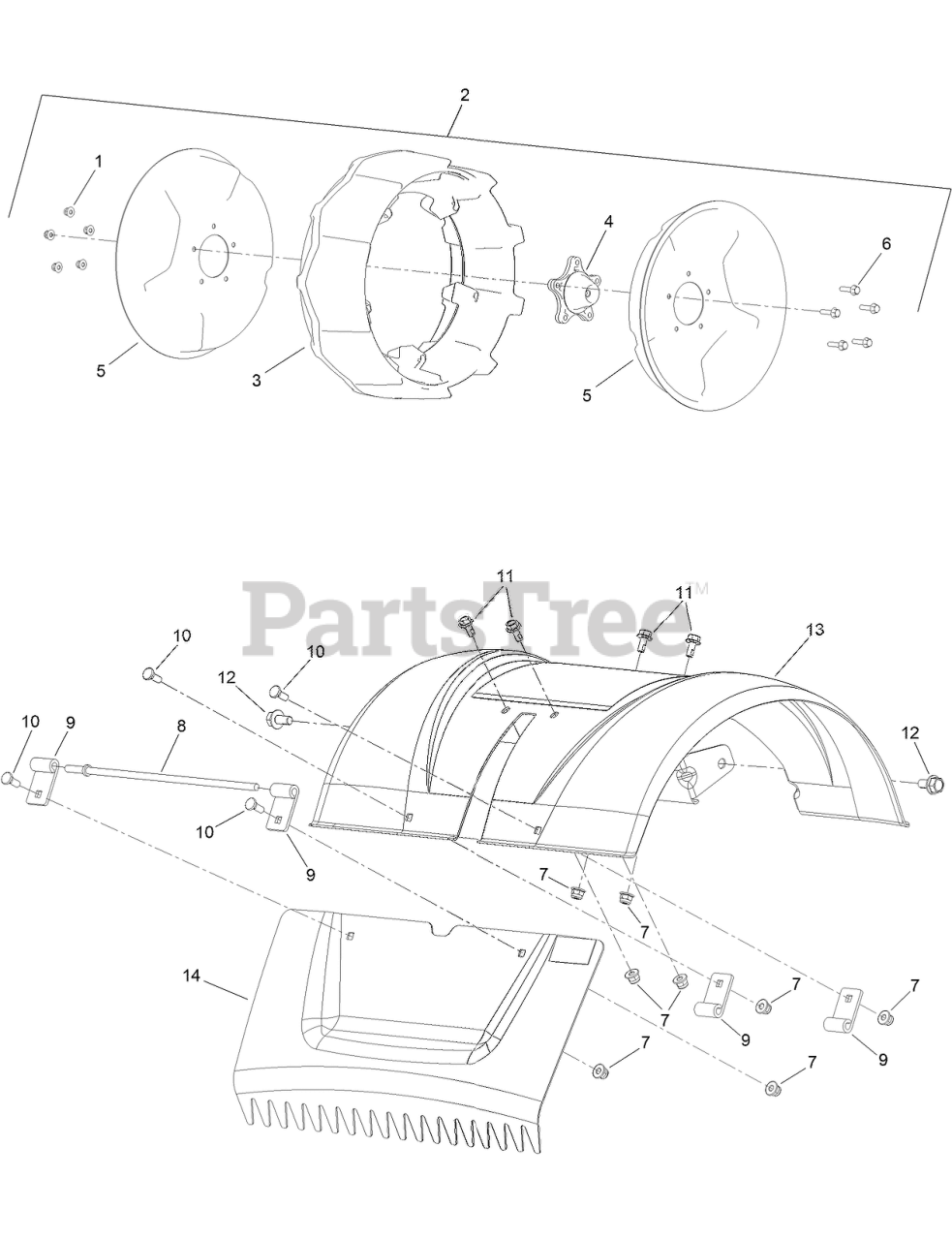

Wheels and Shield Assembly Parts Diagram

  • Title
1

Toro 144-5022

NUT-HEX

$

$

Currently unavailable

2

$

$

Currently unavailable

3

$

$

Currently unavailable

$

$

Currently unavailable

5

Toro 144-5027

RIM-HALF

$

$

Currently unavailable

6

Toro 144-5079

SCREW-HHF

$

$

Currently unavailable

7

Toro 144-5022

NUT-HEX

$

$

Currently unavailable

8

Toro 144-5023

ROD-HINGE

$

$

Currently unavailable

9

Toro 144-5053

BRACKET-HINGE

$

$

Currently unavailable

10

Toro 144-5054

SCREW-CRG

$

$

Currently unavailable

11

Toro 144-5071

SCREW-HF

$

$

Currently unavailable

12

Toro 144-5072

SCREW-HF

$

$

Currently unavailable

13

Toro 144-5090

BEAVER TAIL

$

$

Currently unavailable

14

Toro 144-5098

SHIELD-TINE

$

$

Currently unavailable
