58602 - Toro Front-Tine Tiller (SN: 322000001 - 322999999) (2022) Chassis and Wheels Assembly Parts Diagram

Front-Tine Tiller

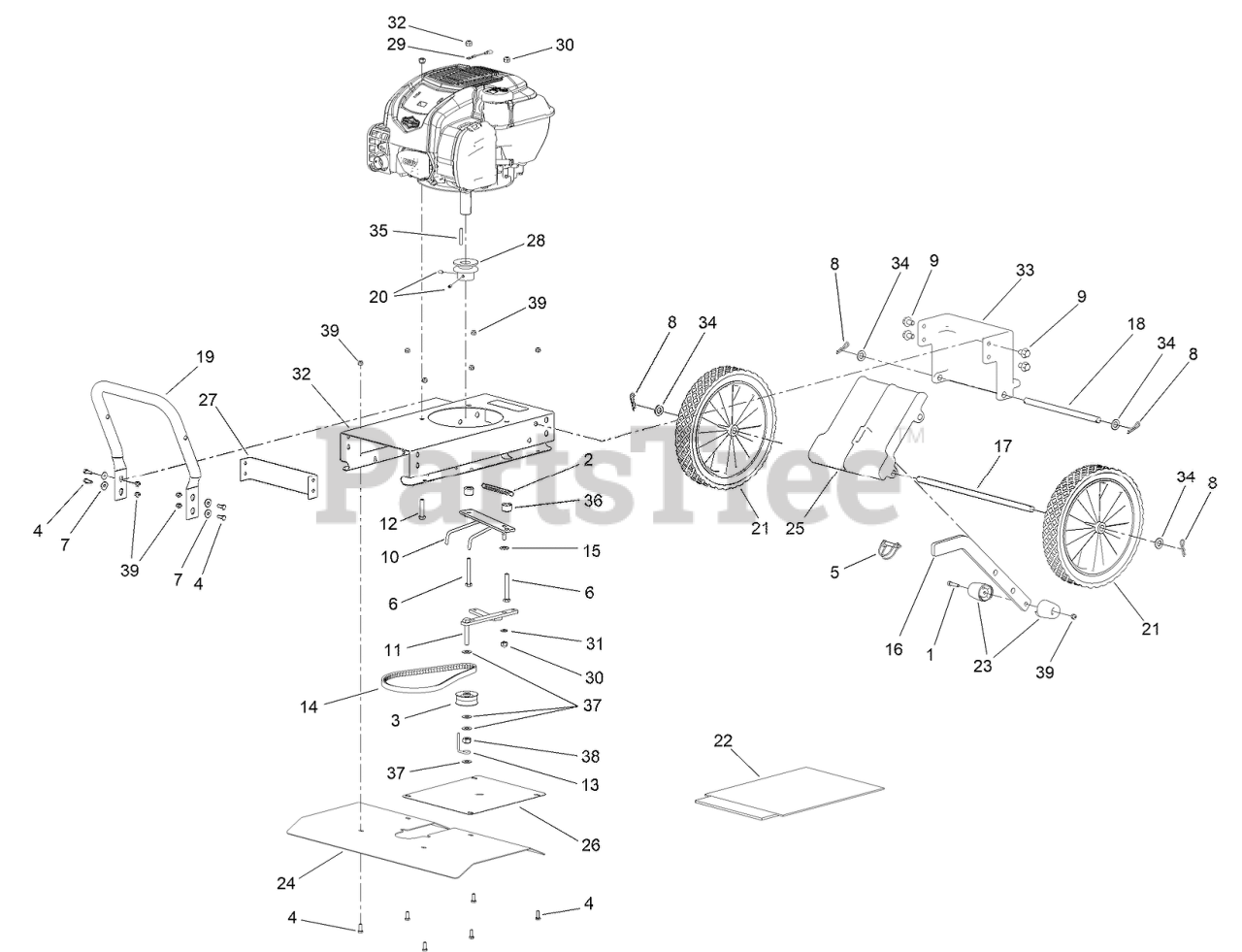

Chassis and Wheels Assembly Parts Diagram

  • Title
1

Toro 144-4878

SCREW-SHCS

$

$

Currently unavailable

2

Toro 144-4977

SPRING-EXTENSION

$

$

Currently unavailable

3

Toro 144-4978

PULLEY-IDLER

$

$

Currently unavailable

4

Toro 144-4981

SCREW-HHCS

$

$

Currently unavailable

5

Toro 144-4685

PIN-CLEVIS, LOCKING

$

$

Currently unavailable

6

Toro 144-4988

SCREW-HHCS

$

$

Currently unavailable

7

Toro 144-4989

WASHER-FLAT

$

$

Currently unavailable

8

Toro 144-4990

PIN-COTTER

$

$

Currently unavailable

9

Toro 144-4992

SCREW-HHSF

$

$

Currently unavailable

10

Toro 144-4994

GUIDE-BELT

$

$

Currently unavailable

11

Toro 144-4995

ARM-FORWARD

$

$

Currently unavailable

12

Toro 144-4996

SCREW-HH

$

$

Currently unavailable

13

Toro 144-4917

BELT CATCH

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Toro 144-4688

WASHER-PLAIN

$

$

Currently unavailable

16

Toro 144-4999

STAKE-DRAG

$

$

Currently unavailable

17

Toro 144-5001

SHAFT-WHEEL

$

$

Currently unavailable

18

Toro 144-5002

SHAFT-PIVOT

$

$

Currently unavailable

19

Toro 144-5003

HANDLEBAR-FRONT

$

$

Currently unavailable

20

Toro 144-4794

SCREW-SET

$

$

Currently unavailable

21

Toro 144-5005

WHEEL-GREY

$

$

Currently unavailable

22

Toro 144-5006

BAG-MANUAL

$

$

Currently unavailable

23

Toro 144-4946

HANDLE

$

$

Currently unavailable

24

Toro 144-5007

SHIELD-TINE

$

$

Currently unavailable

25

Toro 144-5008

TAIL MOUNT-LOWER

$

$

Currently unavailable

26

Toro 144-5009

SHIELD-REAR

$

$

Currently unavailable

27

Toro 144-5010

COVER-FRONT

$

$

Currently unavailable

28

Toro 144-5011

PULLEY-ENGINE

$

$

Currently unavailable

29

Toro 144-5013

WIRE-GROUND

$

$

Currently unavailable

30

Toro 144-4738

NUT-HEX

$

$

Currently unavailable

31

Toro 144-4958

WASHER-FLAT

$

$

Currently unavailable

32

Toro 144-5014

FRAME-RED

$

$

Currently unavailable

33

Toro 144-5016

TAIL MOUNT-UPPER

$

$

Currently unavailable

34

Toro 144-5017

WASHER-WHEEL

$

$

Currently unavailable

35

Toro 144-5018

KEY-SQUARE

$

$

Currently unavailable

36

Toro 144-5019

SPACER-ARM

$

$

Currently unavailable

37

Toro 144-4835

WASHER-PLAIN

$

$

Currently unavailable

38

Toro 144-4964

NUT-HEX

$

$

Currently unavailable

39

Toro 144-4836

NUT-HEX

$

$

Currently unavailable
