58601 - Toro 10" Cultivator (SN: 323000001 - 323999999) (2023) Handles and Controls Assembly Parts Diagram

10" Cultivator

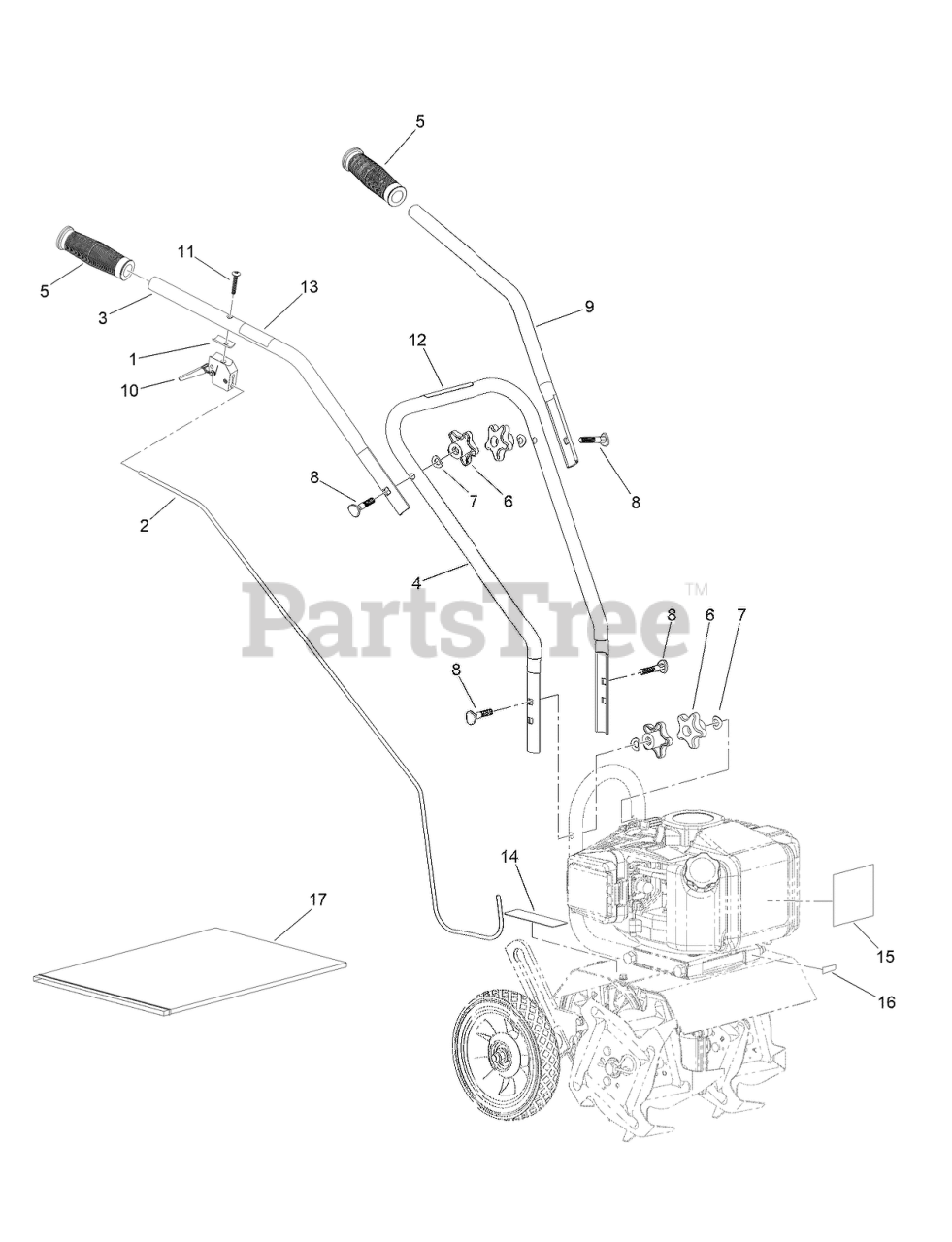

Handles and Controls Assembly Parts Diagram

  • Title
1

Toro 144-4673

PAD-RUBBER

$

$

Currently unavailable

2

Toro 144-4677

THROTTLE CABLE

$

$

Currently unavailable

3

Toro 144-4735

HANDLE-LOWER

$

$

Currently unavailable

4

Toro 144-4842

HANDLEBAR-MIDDLE

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Toro 144-4761

KNOB-HANDLE

$

$

Currently unavailable

7

Toro 144-4762

WASHER-SPRING

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro 144-4687

HANDLEBAR-LEFT, UPPER

$

$

Currently unavailable

10

Toro 144-4775

THROTTLE LEVER ASM

$

$

Currently unavailable

11

Toro 144-4776

SCREW-PTH

$

$

Currently unavailable

12

Toro 144-4732

DECAL-QUICK START

$

$

Currently unavailable

13

Toro 144-4726

DECAL-CONTROL, THROTTLE

$

$

Currently unavailable

14

Toro 144-4727

DECAL-WARNING

$

$

Currently unavailable

15

Toro 144-4725

DECAL-TANK, FUEL

$

$

Currently unavailable

16

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

17

Toro 144-4729

MANUAL ASM

$

$

Currently unavailable
