58600 - Toro 20" Home Pro Tiller (SN: 009000001 - 009999999) (1979) TINE AND ENGINE ASSEMBLY Parts Diagram

20" Home Pro Tiller

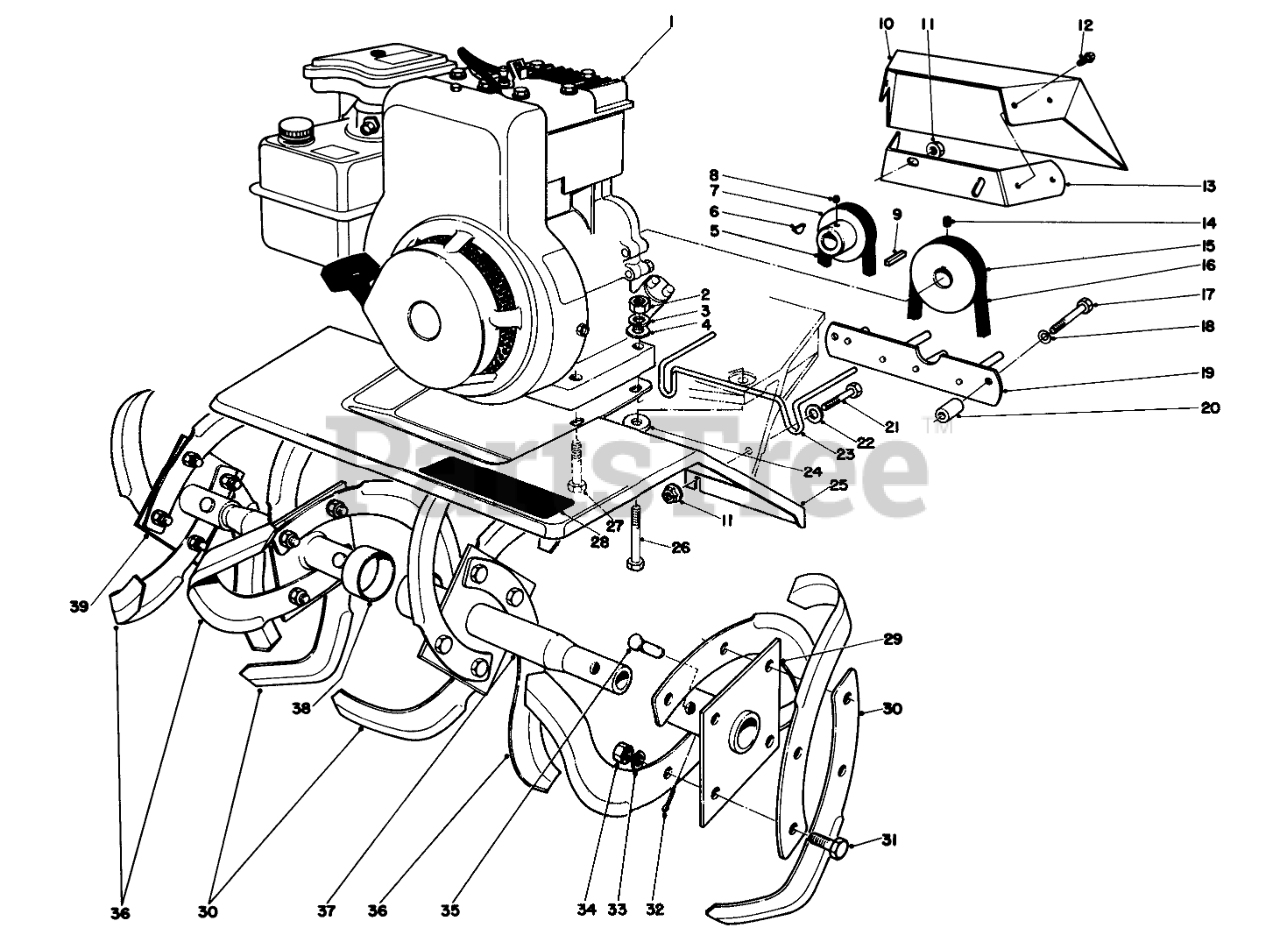

TINE AND ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 221-529

Engine

$

$

Currently unavailable

2

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

3

Toro 32534

Lockwasher

$

$

Currently unavailable

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 28-8660

V-BELT

$

$

Not available

6

Toro 3257-37

HI PRO KEY

$

$

Not available

7

Toro 26-3570

Pulley-Engine Rev.

$

$

Not available

8

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

9

Toro 7-0036

KEY-SQUARE

$

$

Not available

10

Toro 26-3670

PULLEY GUARD

$

$

Not available

11

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

12

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 26-3650

Strap-Belt Shield

$

$

Not available

14

Toro 3245-34

Set Screw
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

15

Toro 27-5830

ENGINE PULLEY

$

$

Not available

16

Toro 28

8070 Lanyard

$

$

Currently unavailable

17

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 26-3770

Belt Guide

$

$

Not available

20

Toro 26-3220

Spacer

$

$

Not available

21

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 26-4030

BELT GUIDE

$

$

Not available

24

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

25

Toro 26-3660

TINE SHROUD

$

$

Not available

26

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

27

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

28

Toro 38-7470

Decal "Gear Drive"

$

$

Not available

29

Toro 24-6960

Axle L.H.Outer

$

$

Not available

30

Toro 7-0103

RH TINE

$67.99

$

Usually ships in 3-6 days

0

31

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

33

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

34

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

35

Toro 7-2116

TINE PIN

$8.99

$

In Stock, only 4 left!

0

36

Toro 7-0102

LH TINE

$

$

Not available

37

Toro 24-6970

Axle L.H. Inner

$

$

Not available

38

Toro 24-6950

Axle R.H. Inner

$

$

Not available

39

Toro 24-6940

Axle R.H. Outer

$

$

Not available
