586 (252-586-100) - Cub Cadet Edger Engine (1992) B&S 3 HP Crankshaft & Piston Ass'y Parts Diagram

Edger Engine

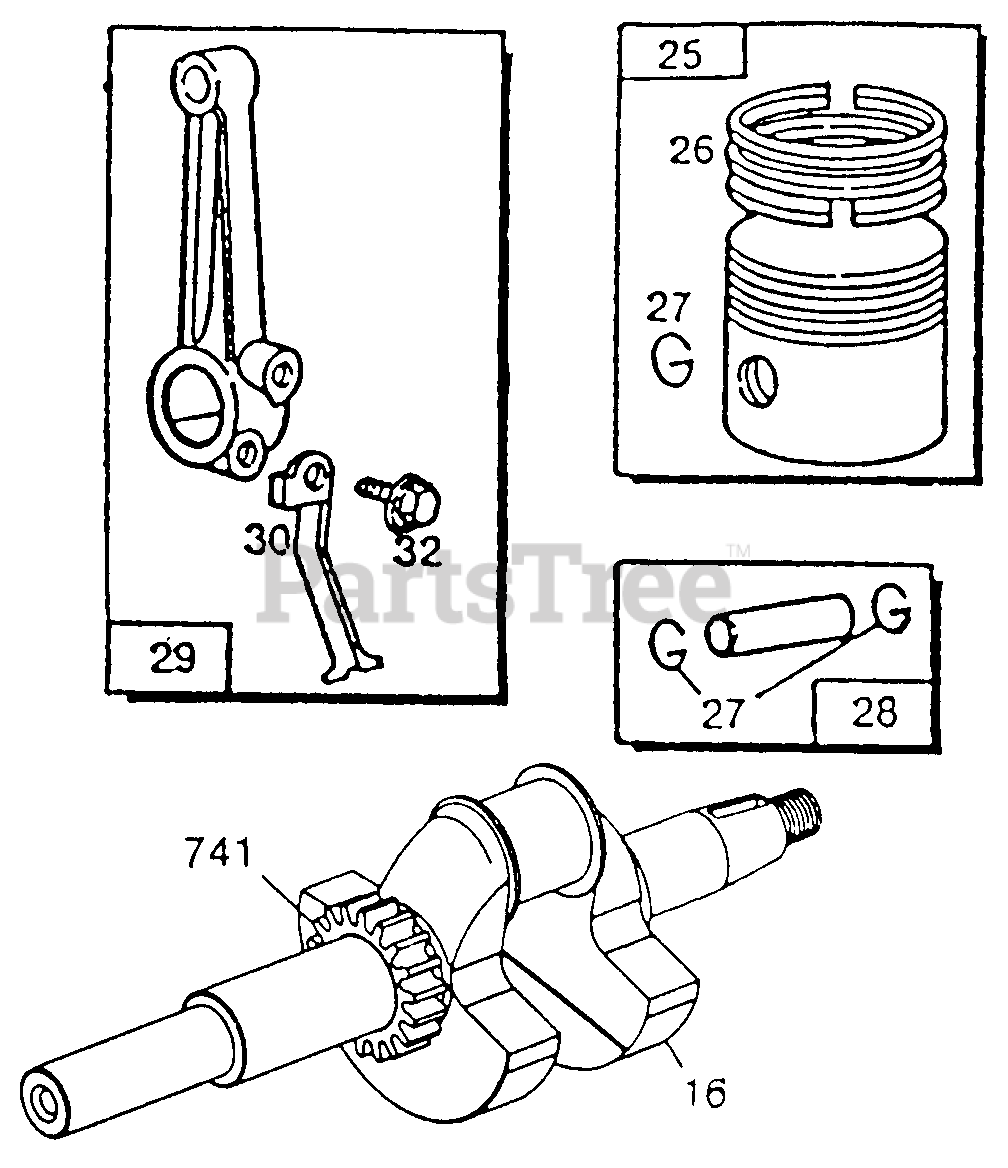

B&S 3 HP Crankshaft & Piston Ass'y Parts Diagram

  • Title

16

Cub Cadet BS-493632

Crankshaft

Note: (To Replace Crankshaft Gear Pin, Order Part No. BS-230978.)

$

$

Not available

25

Cub Cadet BS-298904

Piston Ass'y.--Std.

$

$

Not available

Cub Cadet BS-298905

Piston Ass'y.--(.010" O.S.)

$

$

Not available

Cub Cadet BS-298906

Piston Ass'y.--(.020" O.S.)

$

$

Not available

Cub Cadet BS-298907

Piston Ass'y.--(.030" O.S.)

$

$

Not available

26

Cub Cadet BS-298982

Ring Set--Std. Piston

$48.99

$

In Stock, Qty 7

0

Cub Cadet BS-298983

Ring Set--Piston (.010" O.S.)

$

$

Not available

Cub Cadet BS-298984

Ring Set--Piston (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set--Piston (.030" O.S.)

$

$

Not available

27

Cub Cadet BS-26026

Lock--Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Ass'y.--Piston (Std.)

$8.99

$

In Stock, only 2 left!

0

Cub Cadet BS-298908

Pin Ass'y.--Piston (.005" O.S.)

$

$

Not available

29

Cub Cadet BS-294367

Rod Ass'y.--Conn.

Note: (For Conn. Rod With .020" Undersize Crankpin Bore--Order No. BS-296079.)

$

$

Not available

30

Cub Cadet BS-220670

Dipper--Conn. Rod

$

$

Not available

32

Cub Cadet BS-94404

Screw--Conn. Rod

$

$

Not available

741

Cub Cadet BS-261721

Gear--Timing

$

$

Currently unavailable

Cub Cadet BS-230978

Crankshaft Gear Pin

$

$

Not available

Cub Cadet BS-296079

.020" Undersize Crankpin Bore

$

$

Not available
