586 (252-586-100) - Cub Cadet Edger Engine (1992) B&S 3 HP Crankcase Cover Ass'y Parts Diagram

Edger Engine

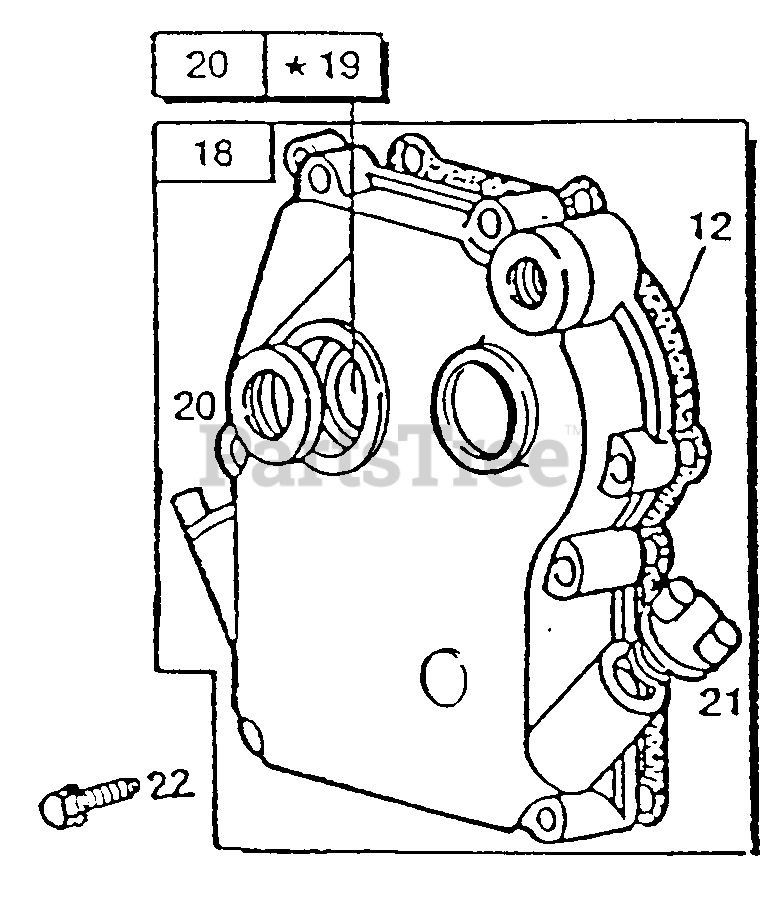

B&S 3 HP Crankcase Cover Ass'y Parts Diagram

  • Title

12

Cub Cadet BS-270833

Gasket--Crankcase--.015" Thick (Standard)
(Superseded to BS-692218)

$

$

Not available

Cub Cadet BS-270895

Gasket--Crankcase--.005" Thick

$9.99

$

In Stock, only 1 left!

0

Cub Cadet BS-270896

Gasket--Crankcase--.009" Thick

$5.99

$

In Stock, Qty 8

0

18

Cub Cadet BS-394909

Cover Ass'y.--Crankcase

$

$

Not available

19

Cub Cadet BS-220538

Bushing--Crankcase Cover

Note: (Bushings Require Special Tools for Installation.)

$

$

Currently unavailable

20

Cub Cadet BS-392838

Oil Seal & Spacer Ass'y.

$

$

Not available

21

Cub Cadet BS-66768

Plug--Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94607

Screw--Crankcase Cover Mounting Sem

Note: (BS-92747 Screw--Crankcase Used on Two Top Holes.)

$

$

Not available
