585 - Husqvarna Chainsaw FUEL TANK Parts Diagram

Chainsaw

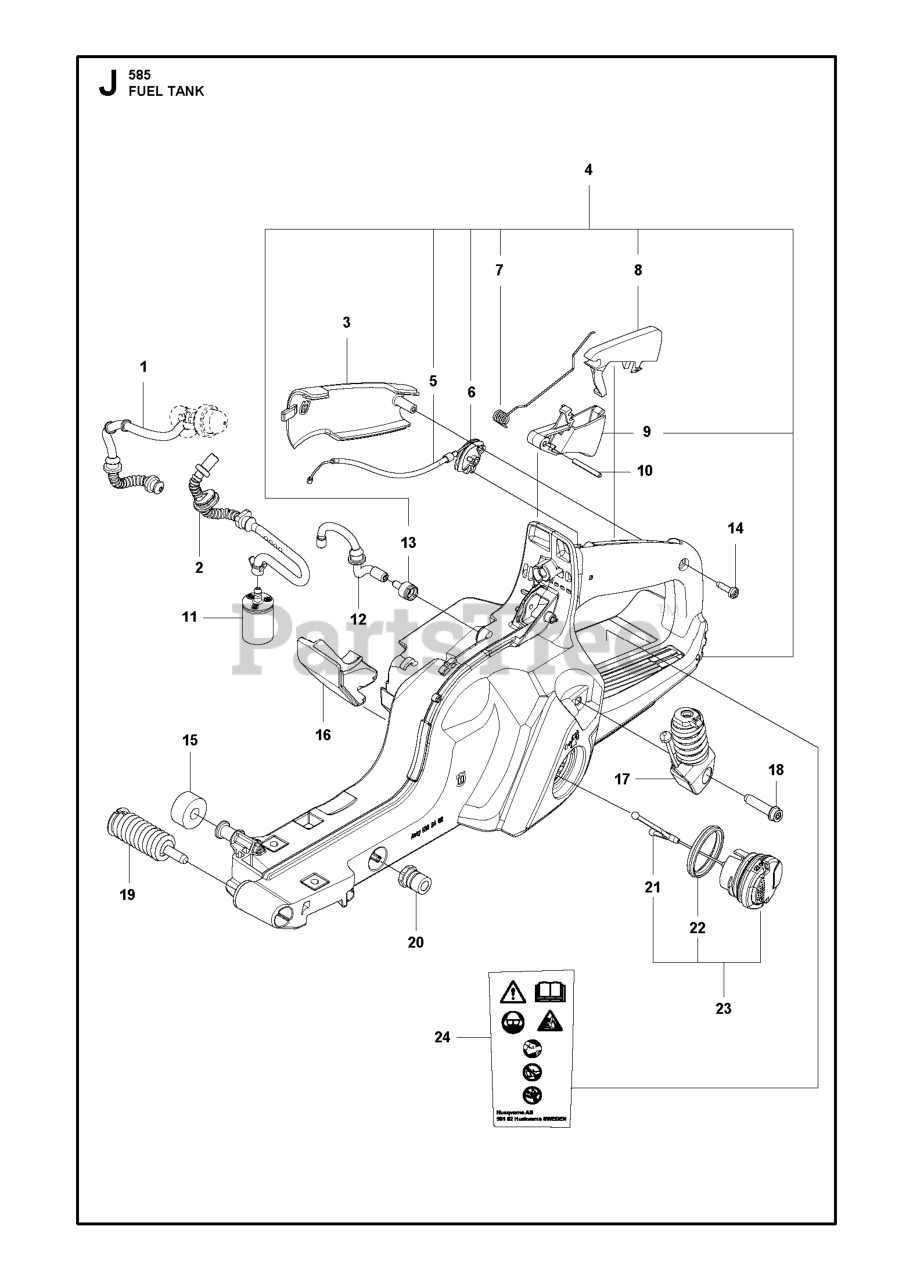

FUEL TANK Parts Diagram

  • Title

16

Husqvarna 593257001

WEAR PROTECTION

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 593976501

FUEL HOSE FUEL TANK VENTILATI

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 593255601

ANTIVIBRATION ELEMENT REAR

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 577504101

FUEL HOSE
(Superseded to 529578202)

$17.99

$

In Stock, only 1 left!

0

3

Husqvarna 537205501

COVER

$6.99

$

Usually ships in 3-10 days

0

1

Husqvarna 593976401

FUEL HOSE PURGE OUT

$7.99

$

Usually ships in 3-10 days

0

11

503443203

FUEL FILTER

Note: 18-40 µm (Blue)

$

$

Not available

18

Husqvarna 525798103

SCREW

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 525887402

SCREW CITXPANT

$6.49

$

In Stock, Qty 20+

0

4

Husqvarna 597960301

FUEL TANK ASSY 90 CC SPARE PAR

$79.99

$

Usually ships in 3-10 days

0

5

Husqvarna 593246301

THROTTLE CABLE ASSY

$30.99

$

Usually ships in 3-10 days

0

8

Husqvarna 537208401

THROTTLE LOCK

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 537208301

THROTTLE TRIGGER

$7.99

$

In Stock, only 1 left!

0

22

Husqvarna 589241101

SEALING

$8.99

$

In Stock, only 2 left!

0

7

Husqvarna 537209801

SPRING

$7.49

$

In Stock, Qty 7

0

6

Husqvarna 537208501

LEVER

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 503443205

NEEDS DESCRIPTION

Note: 18-40 µm (Blue) Mega pack (100 pcs)

$

$

Currently unavailable

10

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

23

Husqvarna 522620003

TANK CAP ASSY

$13.99

$

In Stock, only 2 left!

0

13

Husqvarna 501152903

TANK VENT

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 523085501

DEFLECTION LIMITER

$9.49

$

Usually ships in 3-10 days

0

24

Husqvarna 582794105

LABEL

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 501007601

LATERAL SUPPORT

$7.49

$

In Stock, only 4 left!

0

19

Husqvarna 593255501

ANTIVIBRATION ELEMENT FRONT

$20.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0
