584447-0210-E2 - Briggs & Stratton Horizontal Engine 0.8KW Red Label Starter Motor Parts Diagram

Horizontal Engine

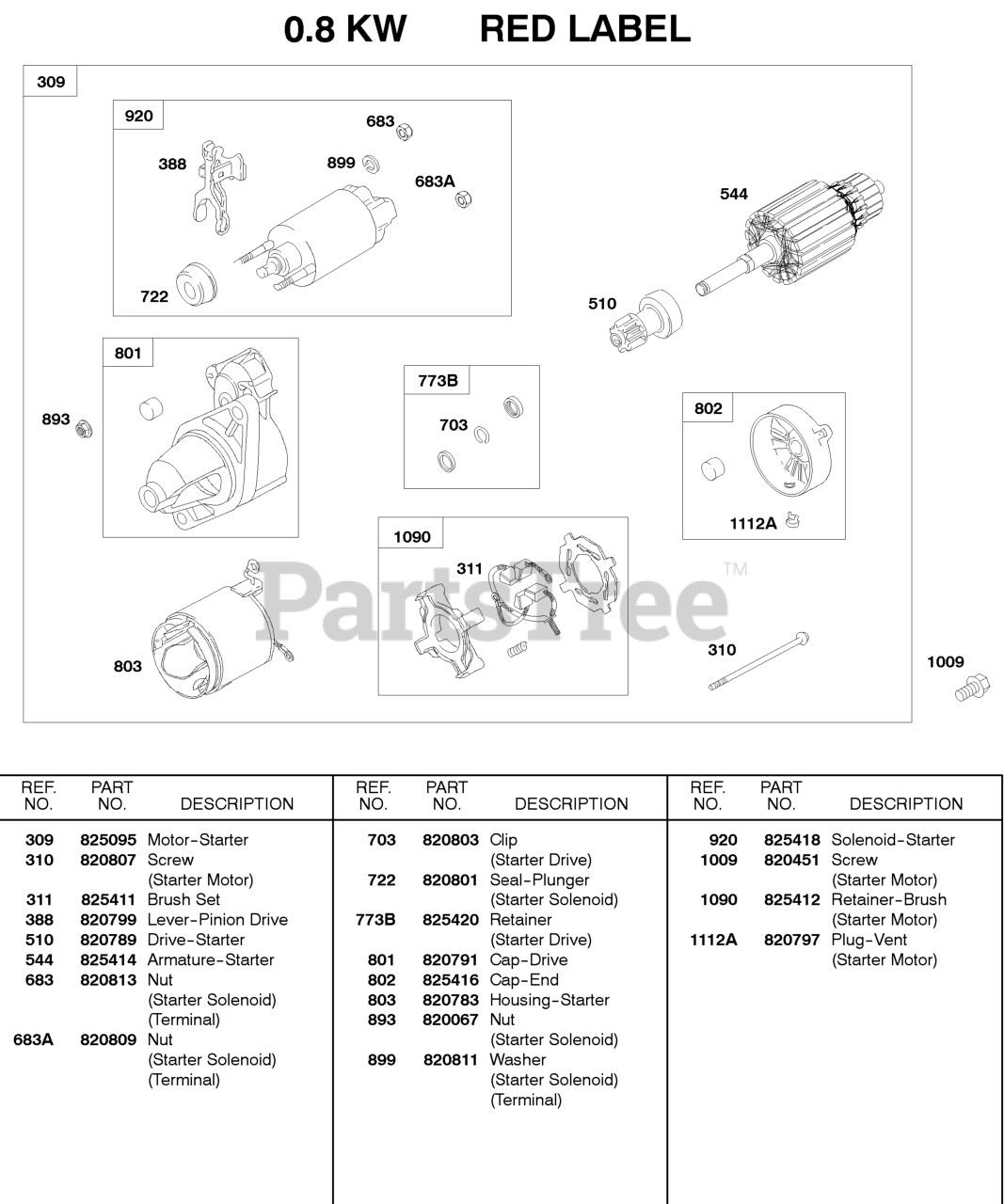

0.8KW Red Label Starter Motor Parts Diagram

  • Title

309

Briggs & Stratton 825095

Motor-Starter

Note: (0.8KW)

$459.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 820807

Screw

Note: (Starter Motor)

$8.99

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 825411

Brush Set
(Superseded to 825412)

$130.99

$

Usually ships in 2-12 days

0

388

Briggs & Stratton 820799

Lever-Pinion Drive

$30.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 820789

Drive-Starter

$155.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 825414

Armature-Starter
(Superseded to 825095)

$459.99

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 820813

Nut

Note: (Starter Solenoid) (Terminal)

$4.99

$

Usually ships in 2-12 days

0

683A

Briggs & Stratton 820809

Nut

Note: (Starter Solenoid) (Terminal)

$4.99

$

Usually ships in 2-12 days

0

703

Briggs & Stratton 820803

Clip

Note: (Starter Drive)

$6.99

$

Usually ships in 2-12 days

0

722

Briggs & Stratton 820801

Seal-Plunger

Note: (Starter Solenoid)

$39.99

$

Usually ships in 2-12 days

0

773B

Briggs & Stratton 825420

Retainer

Note: (Starter Drive)

$48.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 820791

Cap-Drive

$155.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 825416

Cap-End
(Superseded to 825095)

$459.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 820783

Housing-Starter

$291.99

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 820067

Nut

Note: (Starter Solenoid)

$3.99

$

Usually ships in 2-12 days

0

899

Briggs & Stratton 820811

Washer

Note: (Starter Solenoid) (Terminal)

$4.49

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 825418

Solenoid-Starter

$

$

Not available

1009

Briggs & Stratton 820451

Screw

Note: (Starter Motor)

$3.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 825412

Retainer-Brush

Note: (Starter Motor)

$130.99

$

Usually ships in 2-12 days

0

1112A

Briggs & Stratton 820797

Plug-Vent

Note: (Starter Motor)

$14.99

$

Usually ships in 2-12 days

0
